Home >> Honda >> 2008 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Grounds >> G701

G701

162. Left Side Of Trunk (2-door):

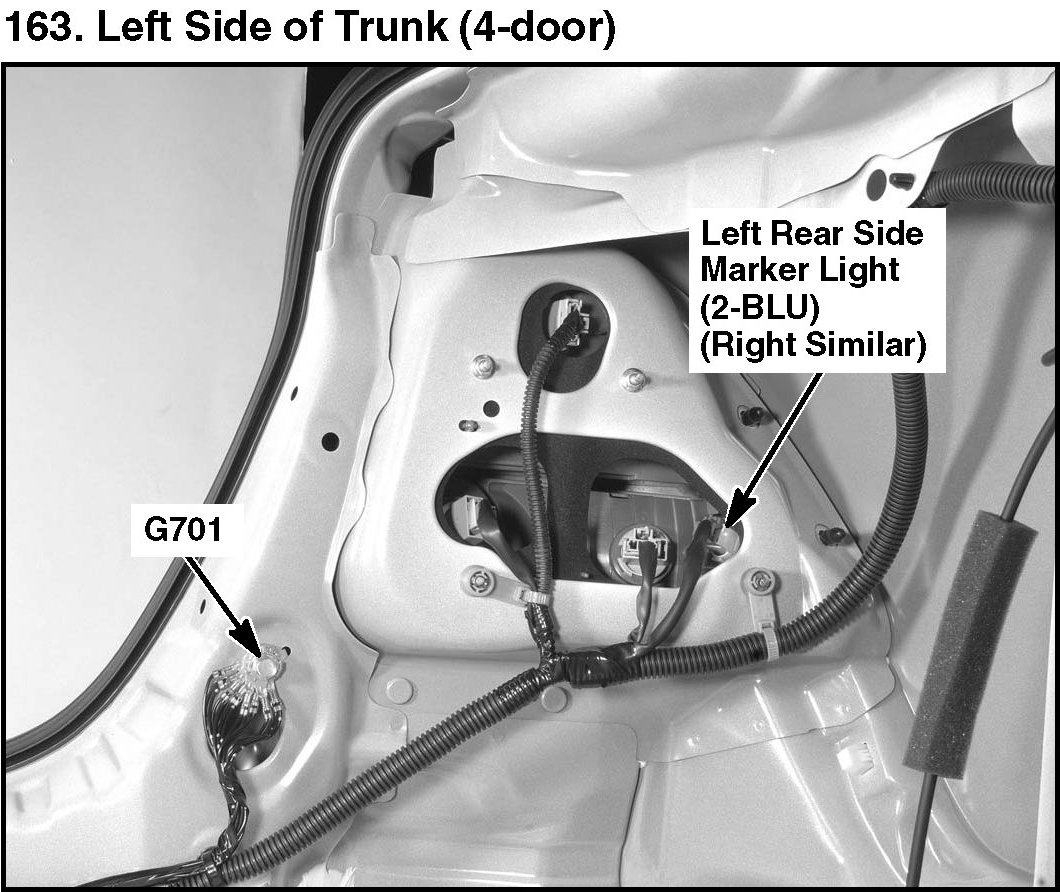

163. Left Side Of Trunk (4-door):
