Home >> Honda >> 2008 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Harness >> ODS Unit Harness (Without Seat Heater)

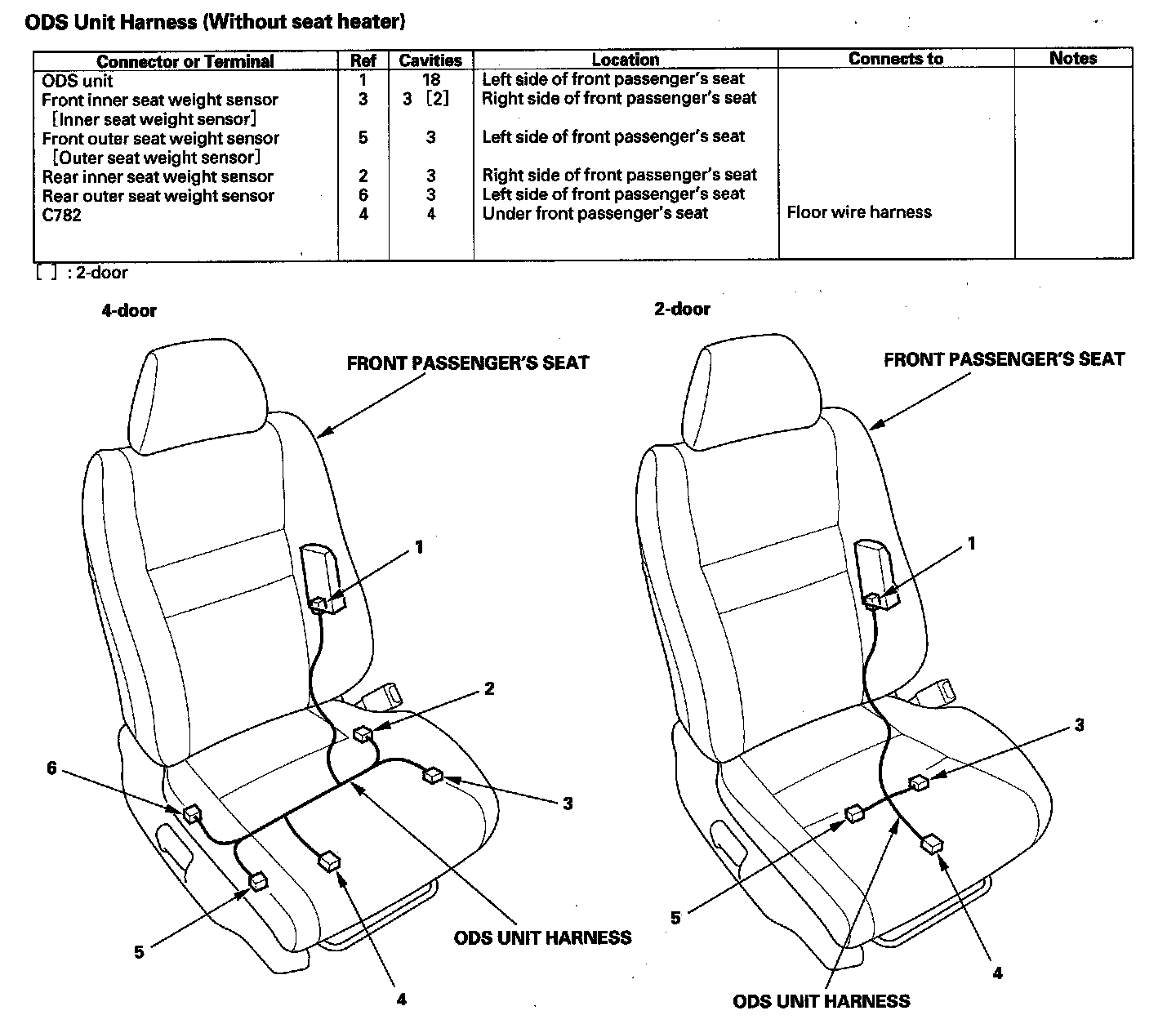

ODS Unit Harness (Without Seat Heater)

ODS Unit Harness (Without Seat Heater):
