Home >> Honda >> 2008 >> Civic L4-1.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

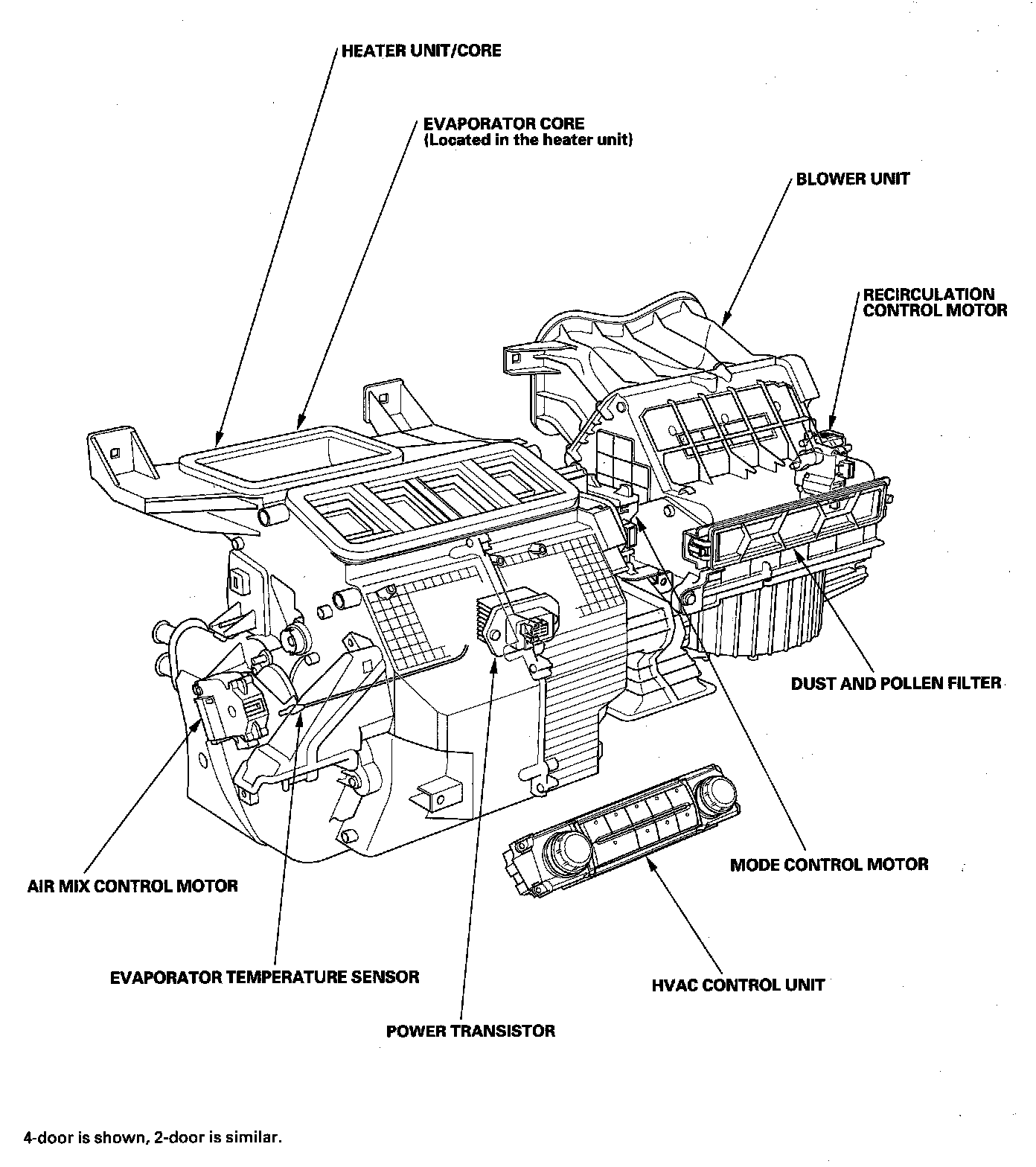

Heating/Air Conditioning Component Location Index:
