Service Specifications

Flywheel

5-Speed Model

Tighten the flywheel mounting bolts (B) in a crisscross pattern in several steps.





Transmission Disassembly

Manual Transmission Clutch Housing L4-1.8L SOHC:

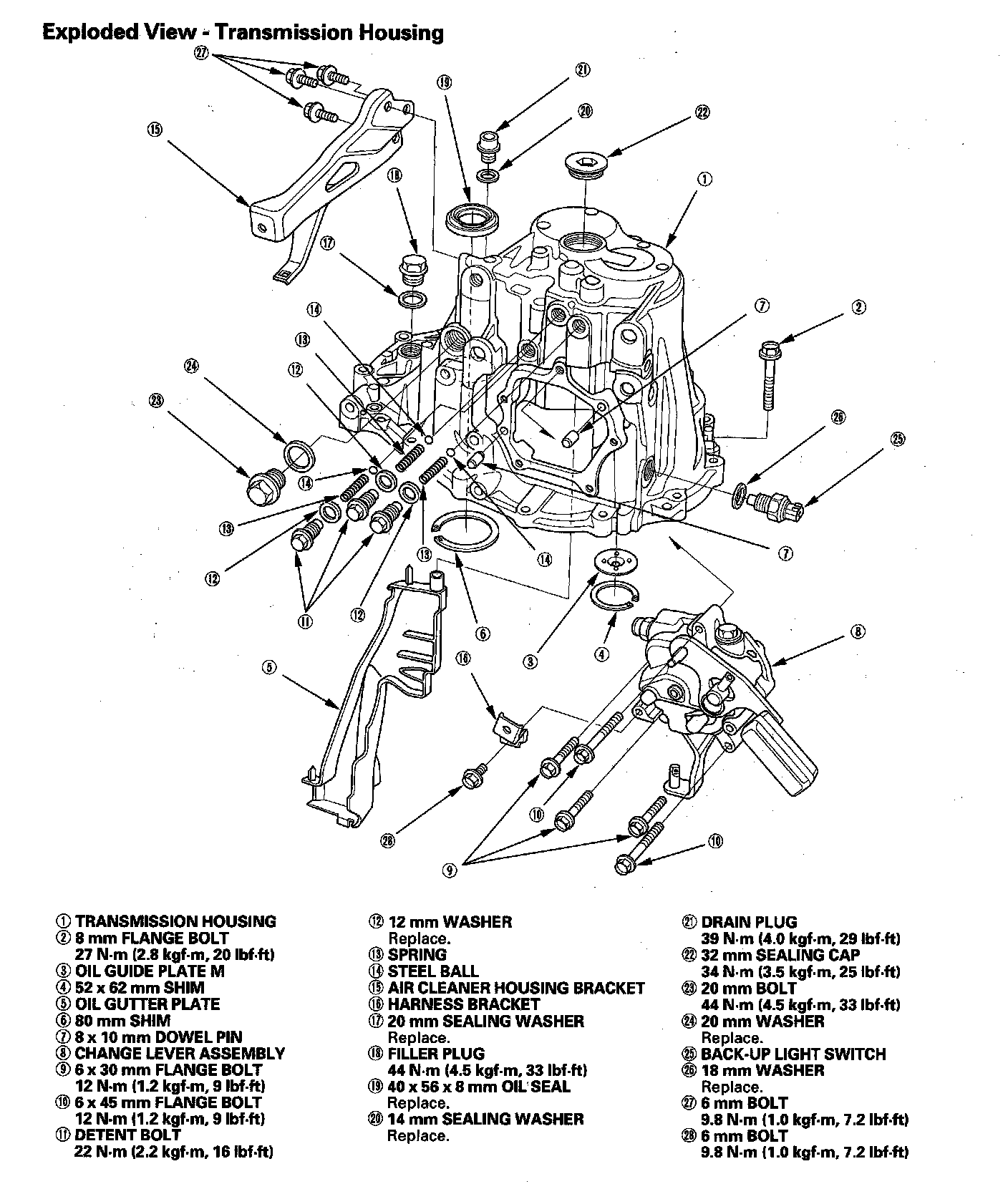

Manual Transmission Housing L4-1.8L SOHC:

Change Lever Assembly Disassembly/Reassembly

Change Lever Assembly:

Countershaft Reassembly

Countershaft L4-1.8L SOHC:

For Information regarding Transmission Overhaul Specifications, please refer to Service and Repair. Service and Repair
