Component Tests and General Diagnostics

Cruise Control Input Test

1. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on page 11-3).
2. Turn the ignition switch ON (II).
3. Make sure the HDS communicates with the vehicle and the ECM/PCM. If it doesn't, troubleshoot the DLC circuit.
4. Go to PGM-FI, and check for DTCs.
5. Do the following tests while monitoring parameters in the PGM-FI DATA LIST with the HDS.

NOTE: Intermittent failures are often caused by loose circuit connections. While monitoring cruise control inputs, flex their circuits, and note if any of the test results change.

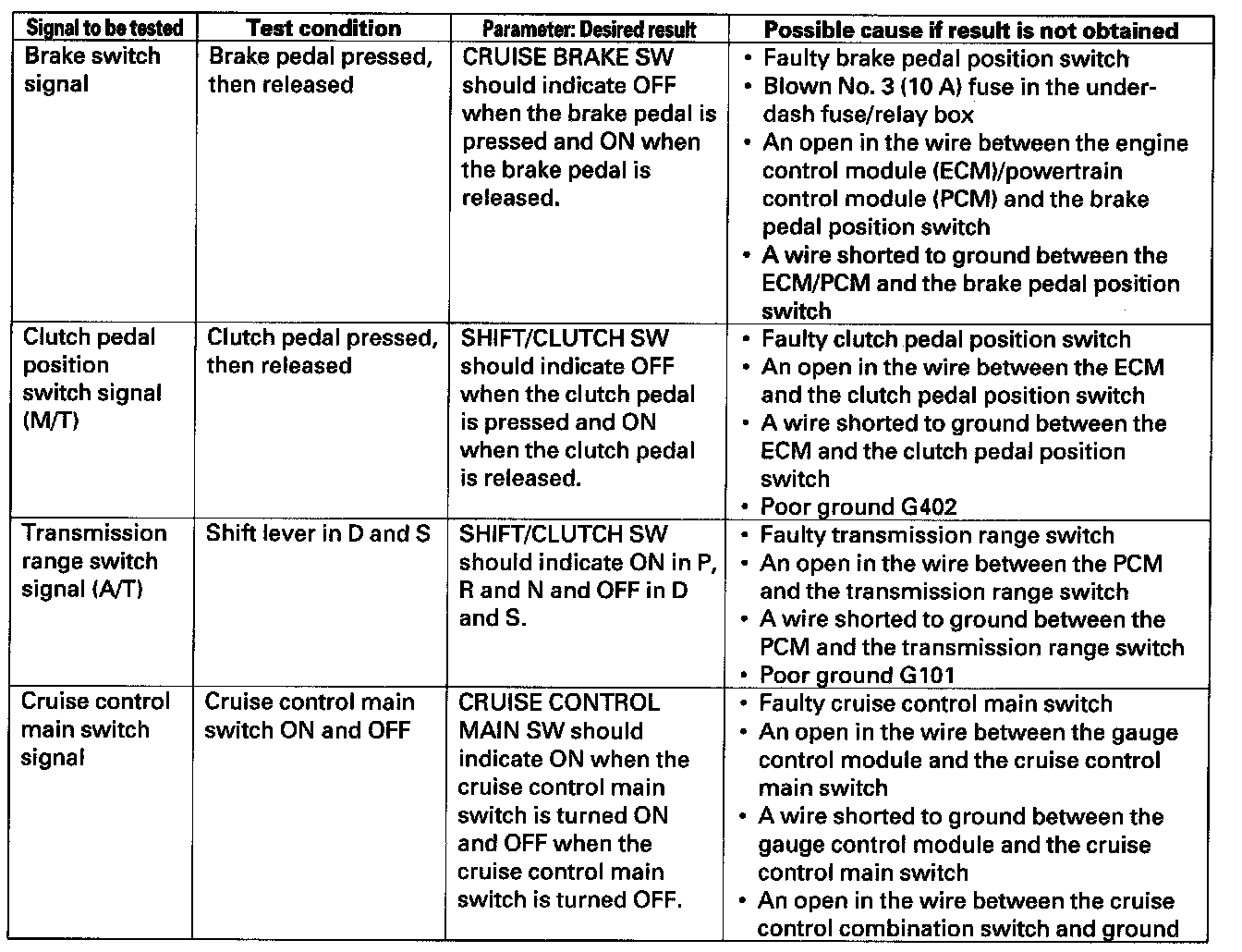

Cruise Control Input Test Part 1:

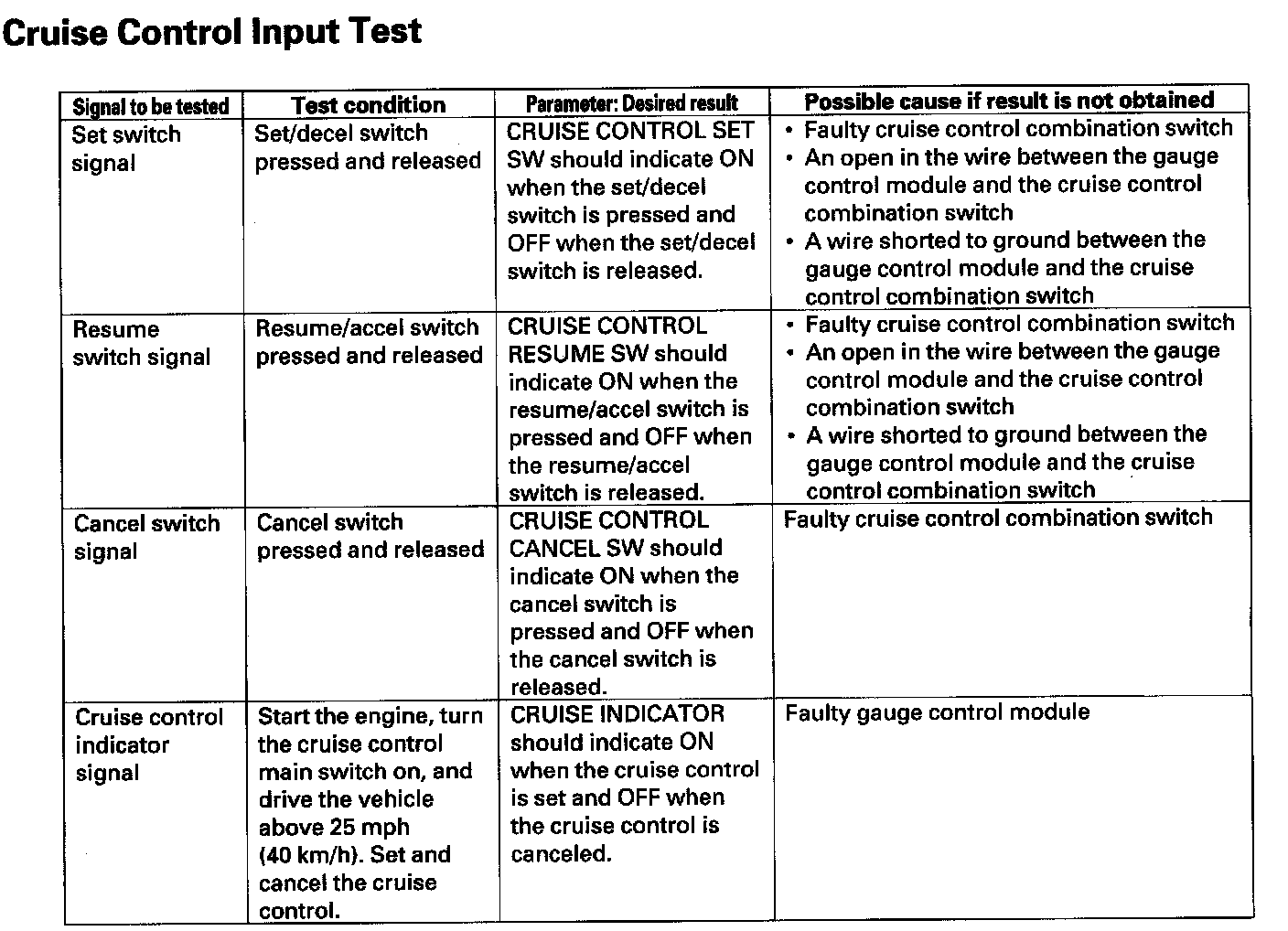

Cruise Control Input Test Part 2:
