Marker Lamp
Marker Lamp

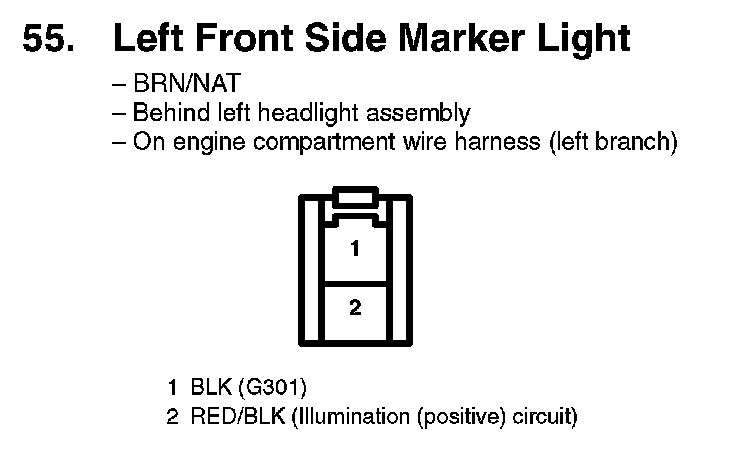

55. Left Front Side Marker Light:

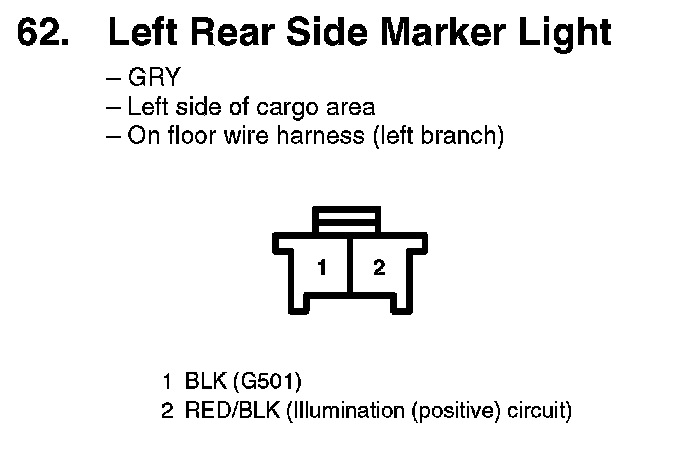

62. Left Rear Side Marker Light:

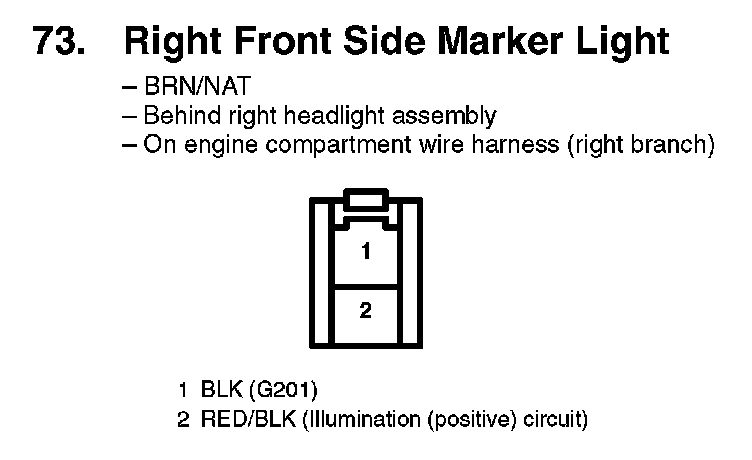

73. Right Front Side Marker Light:
80. Right Rear Side Marker Light:
