Variable Valve Timing Pressure Switch
Variable Valve Timing Pressure Switch

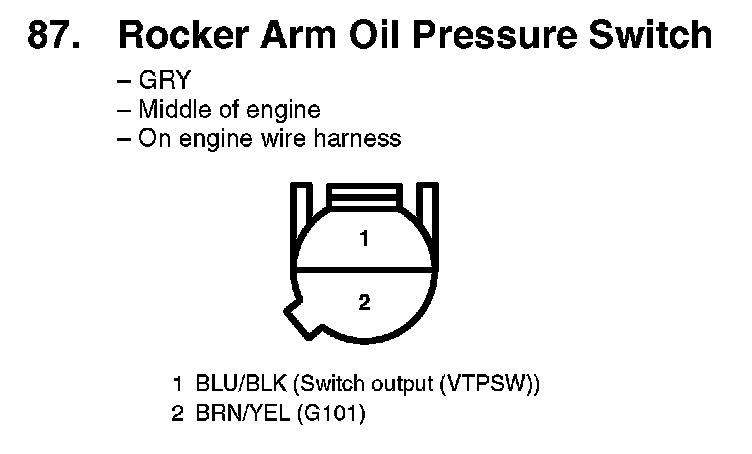

87. Rocker Arm Oil Pressure Switch:
