Engine Ground Cable

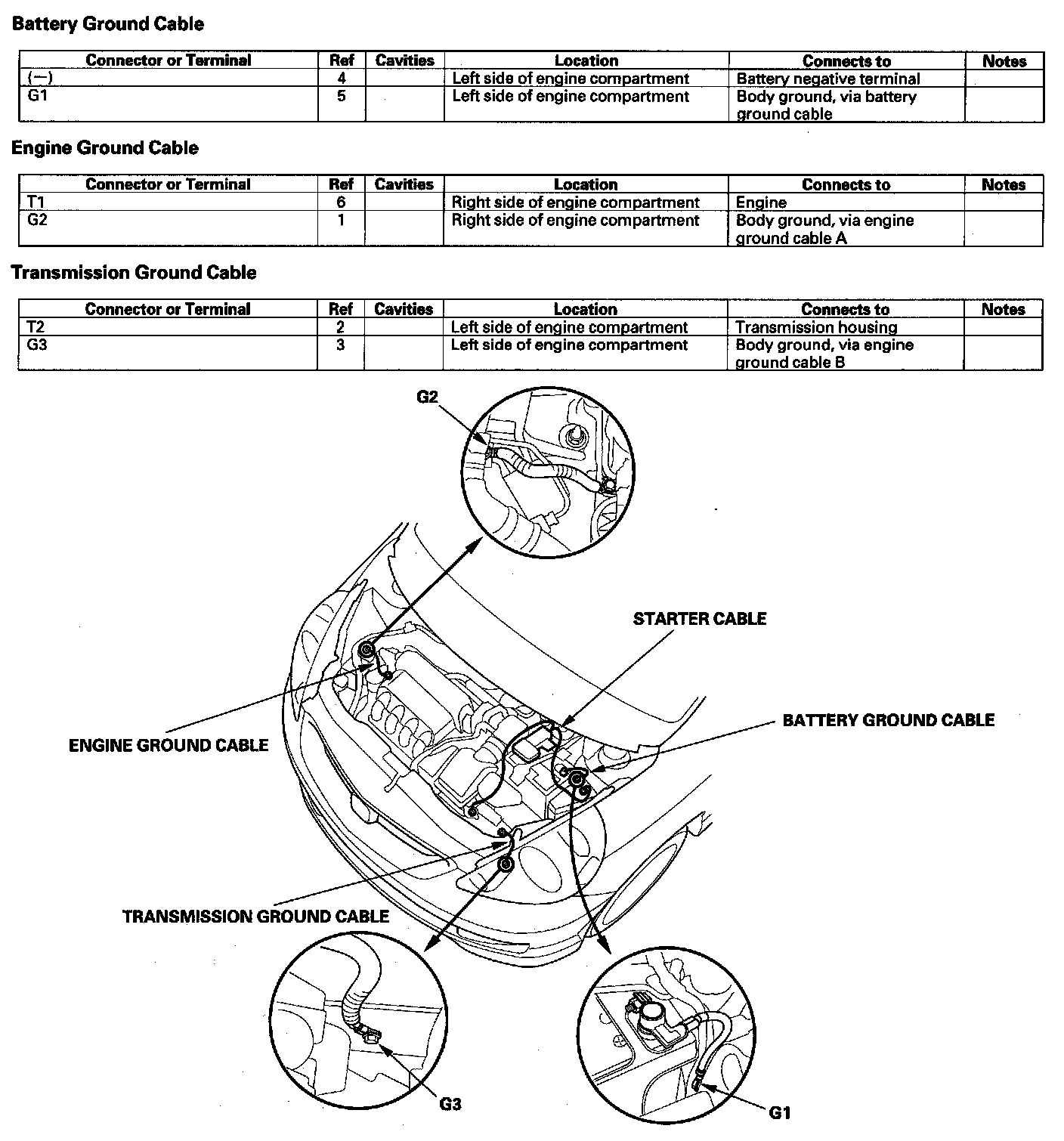

Battery Ground Cable/Engine Ground Cable/Transmission Ground Cable:



Harness Location View:

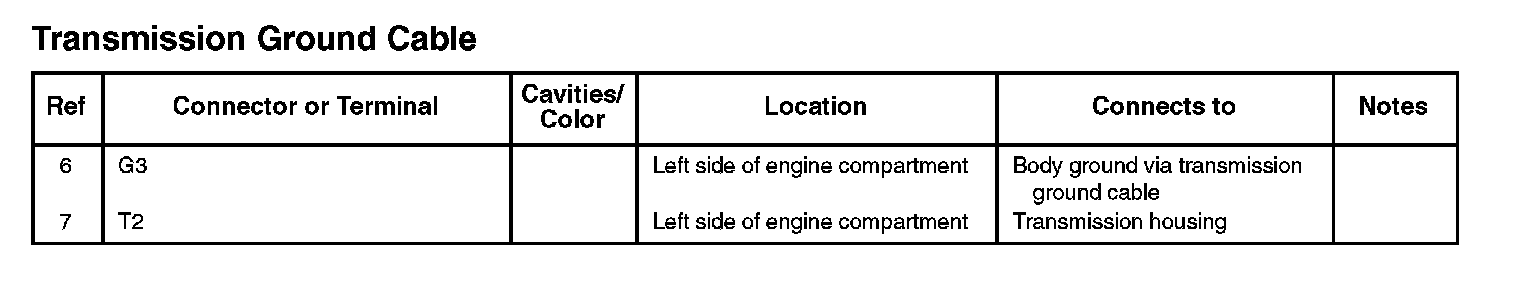

Transmission Ground Cable:
