Compressor Clutch Relay: Locations

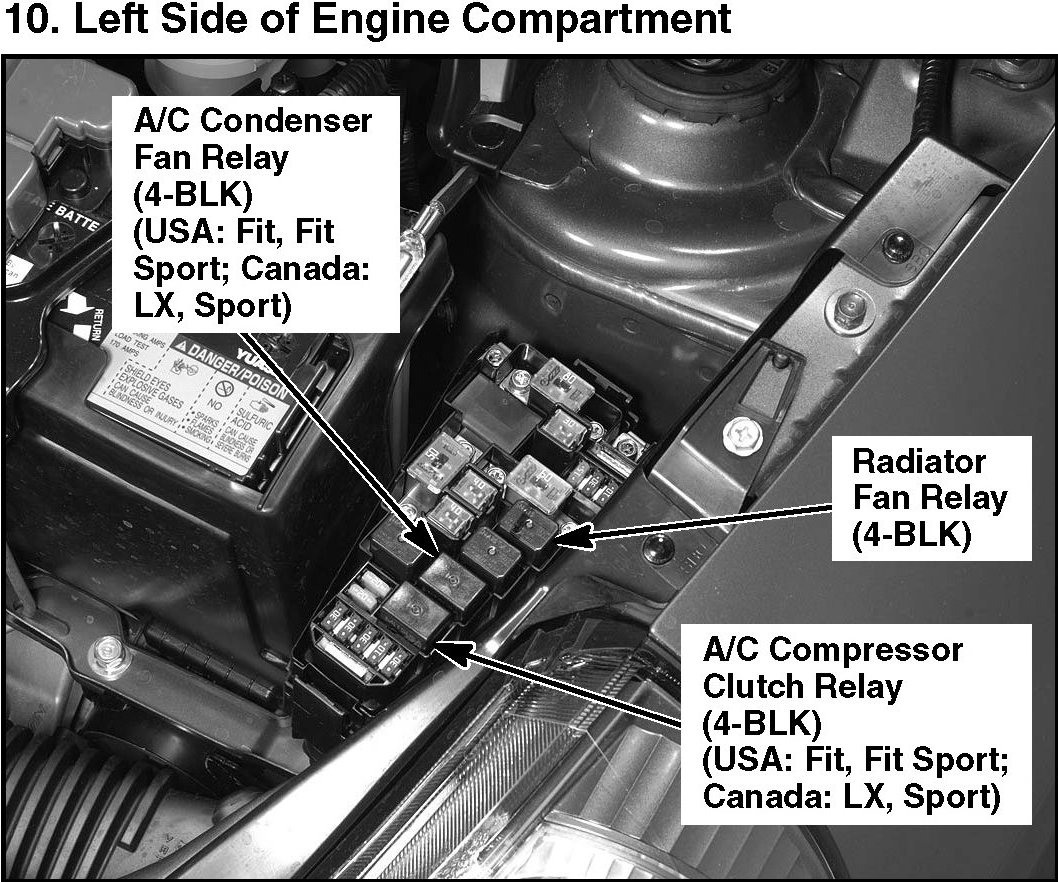

10. Left Side Of Engine Compartment:

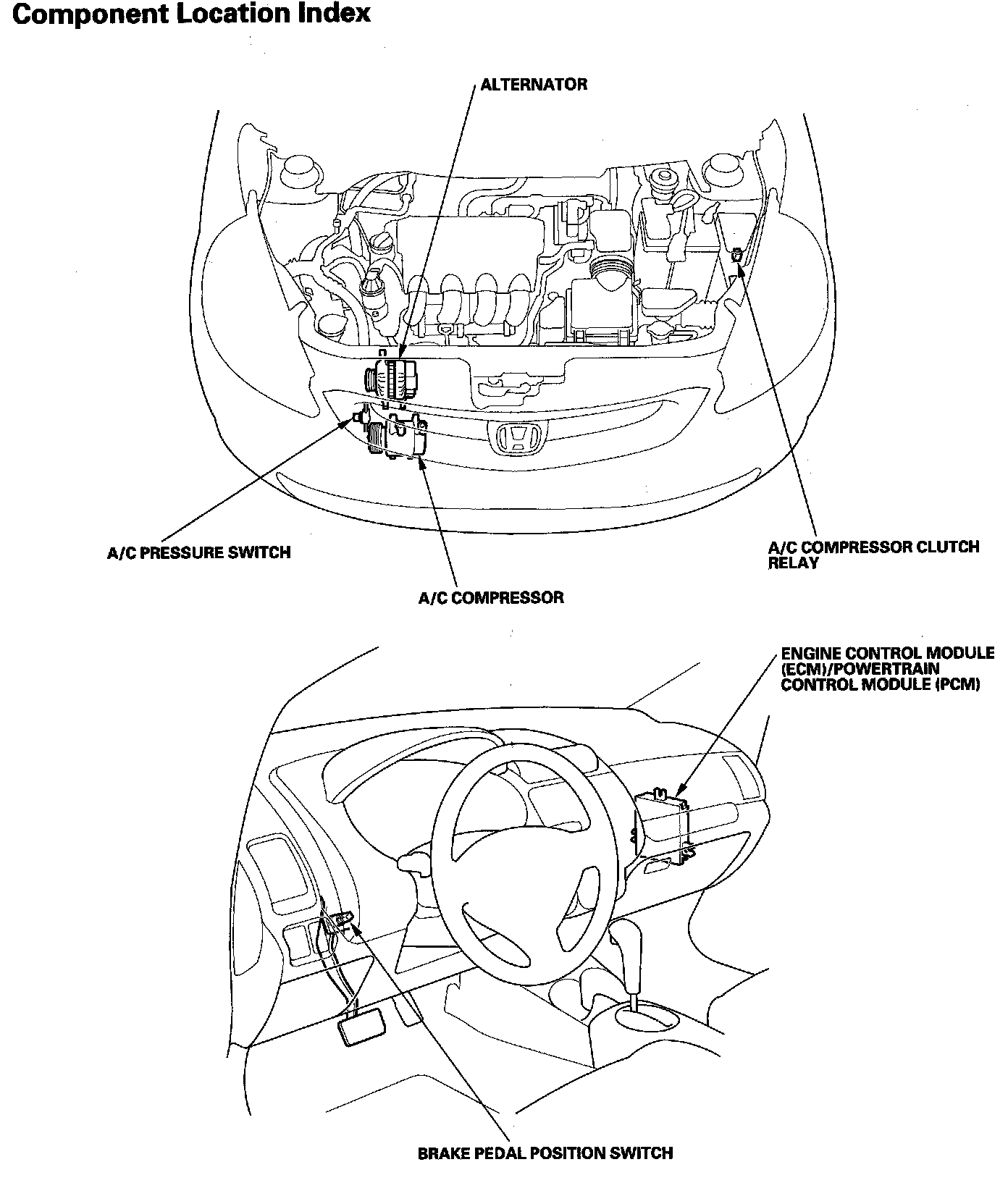

Idle Control System Component Location Index:

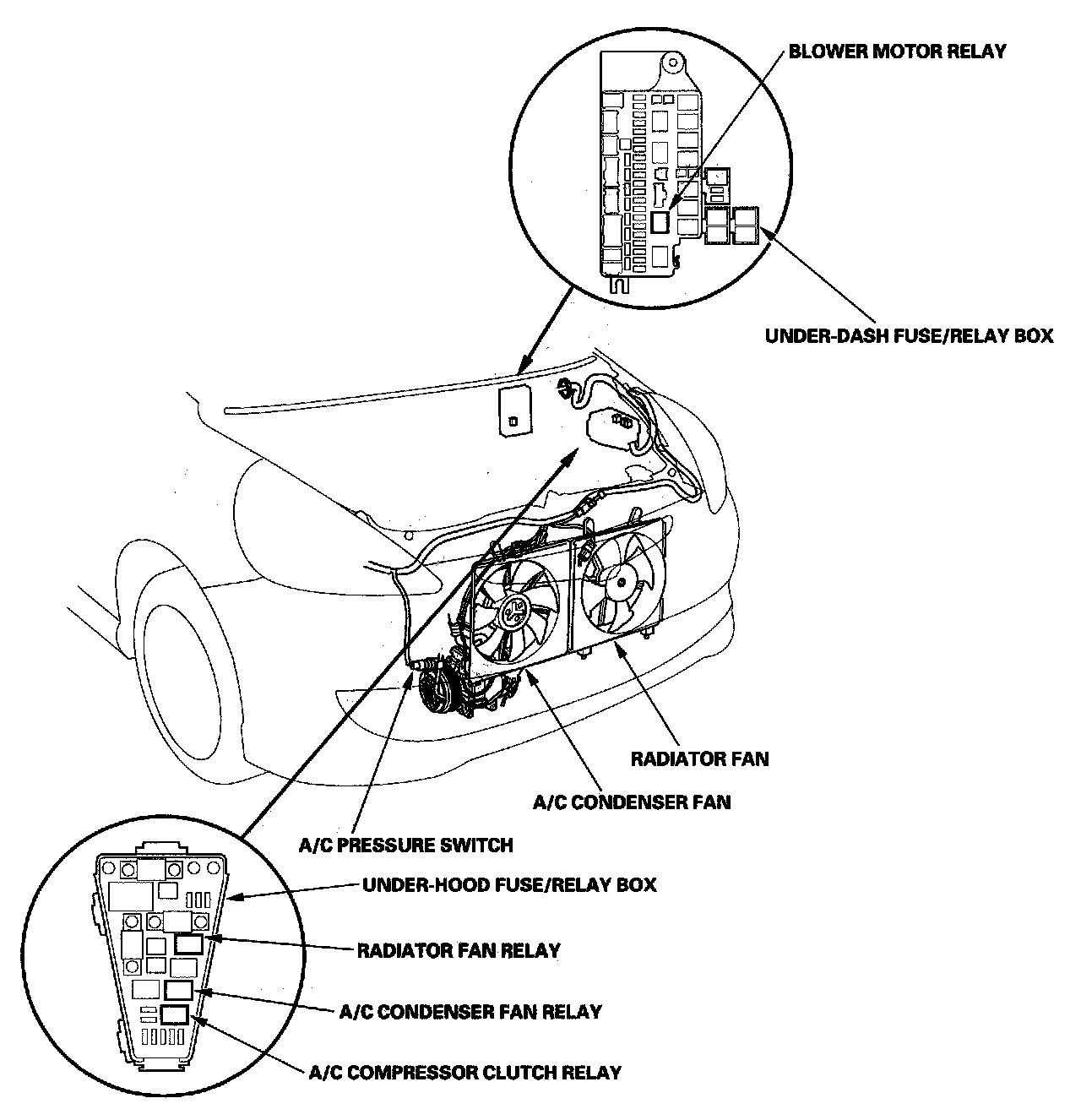

Heating/Air Conditioning Component Location Index:

Relay And Control Unit Locations Engine Compartment:
