Condenser Fan Motor Relay: Locations

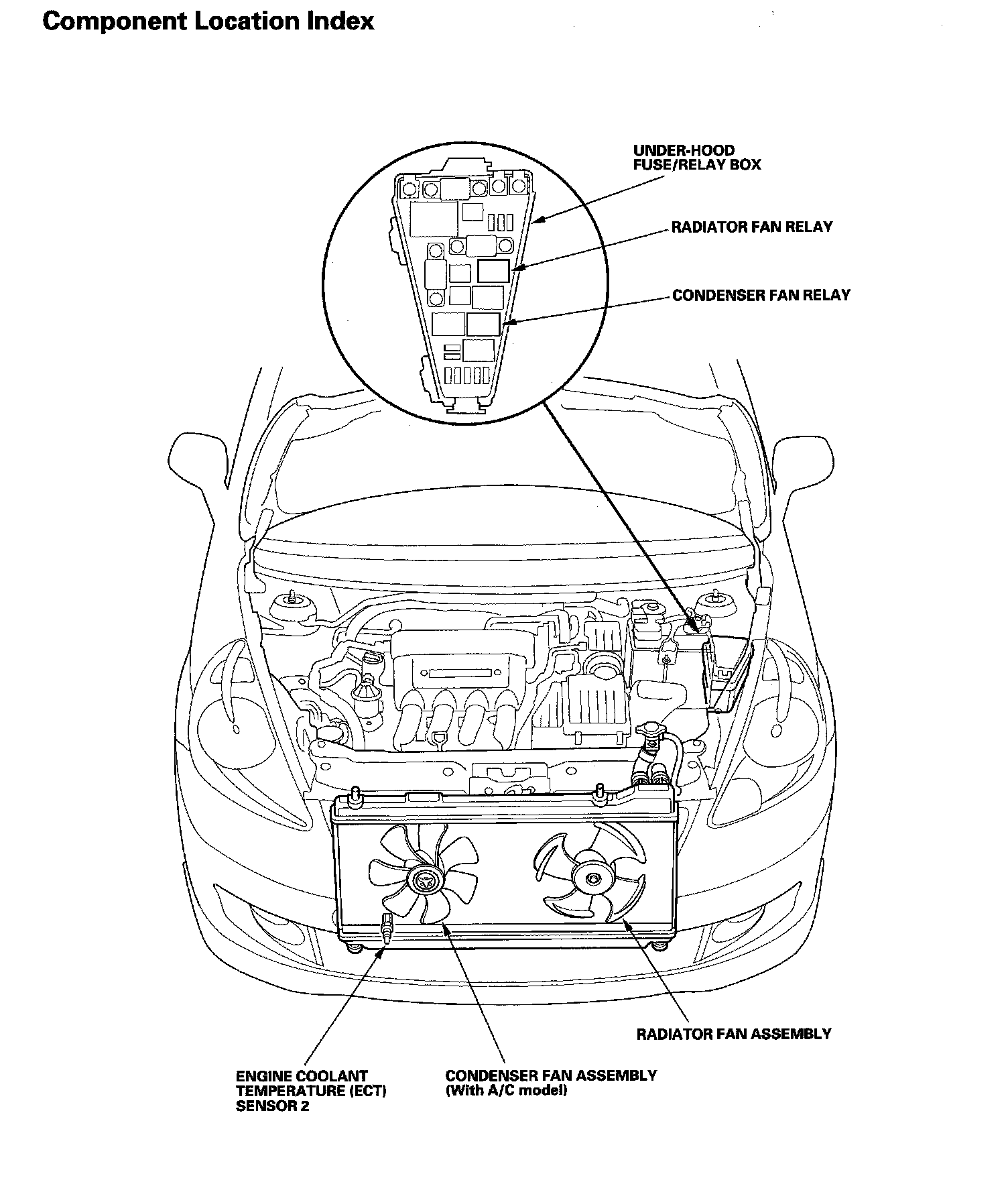

Fan Controls Component Location Index:

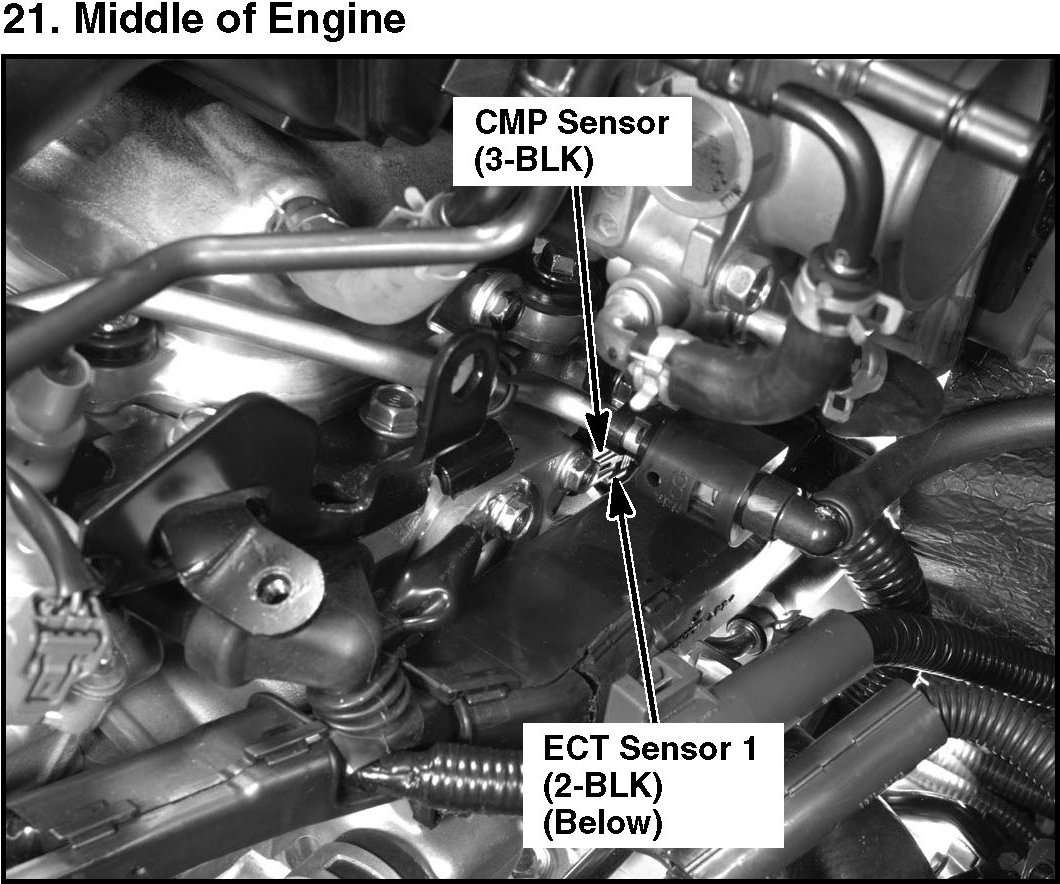

21. Middle Of Engine:

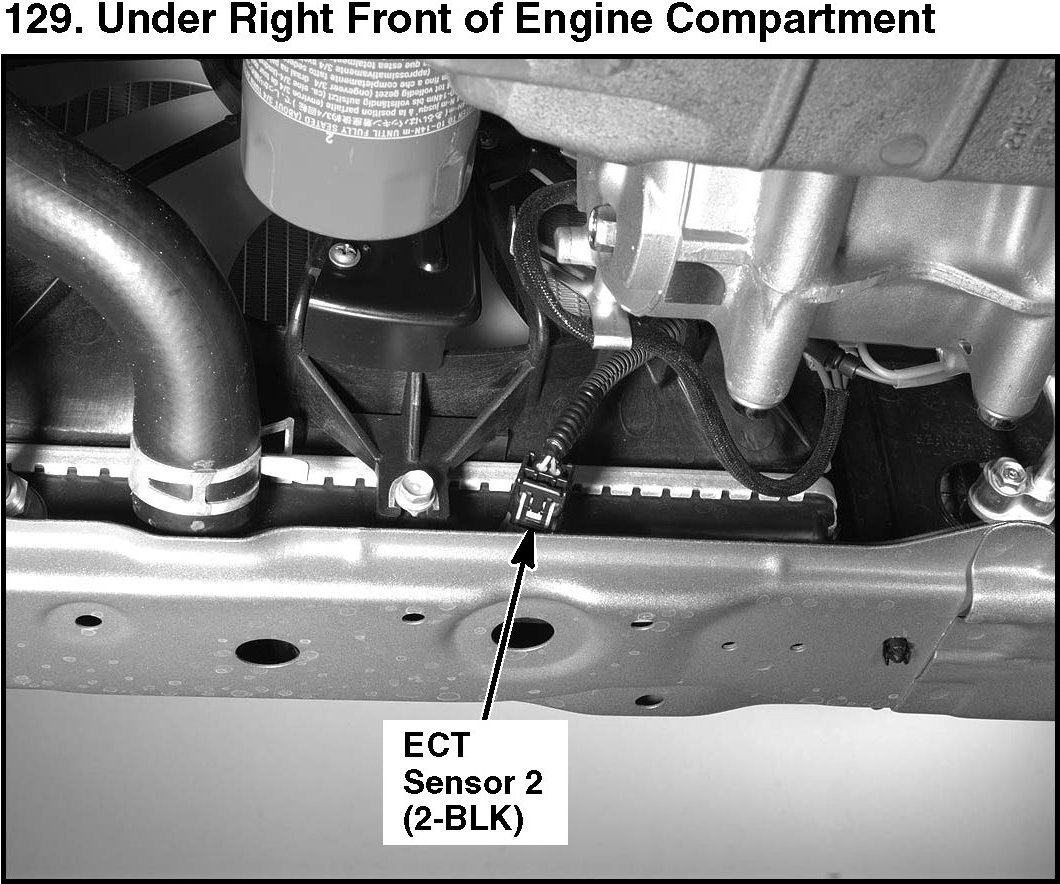

129. Under Right Front Of Engine Compartment:
