Dome Lamp: Service and Repair

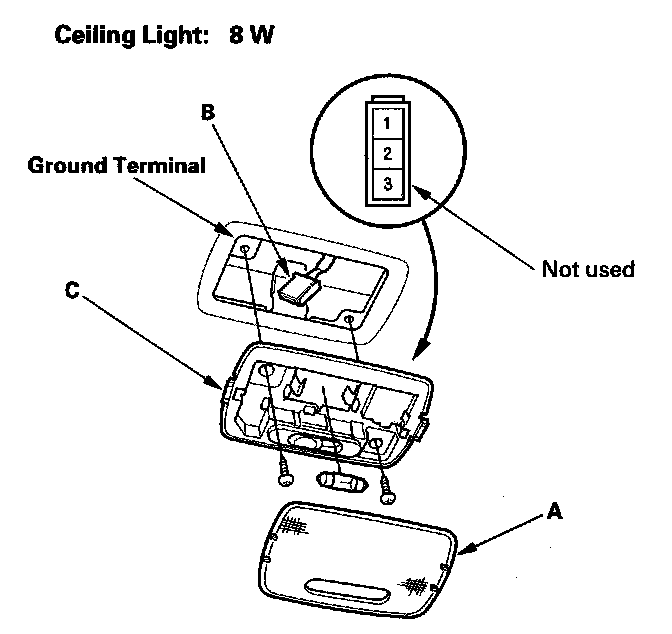

Ceiling Light Test/Replacement1. Turn the light switch OFF.
2. Carefully pry off the lens (A) with a small screwdriver.
3. Remove the two mounting screws.
4. Disconnect the 3P connector (B) from the housing (C).
5. Check for continuity between the terminals in each switch position according to the table.
6. If the continuity is not as specified, check the bulb.
If the bulb is OK, replace the light.
If the continuity is as specified, go to step 5 on the gauge control module input test Component Tests and General Diagnostics, and test circuit A12.
7. Install the light in the reverse order of removal.
