Fog/Driving Lamp: Adjustments

Fog Light Adjustment

Before adjusting the fog lights:
- Park the vehicle on a level surface.
- Make sure the tire pressures are correct.
- The driver or someone who weights the same should sit in the driver's seat.

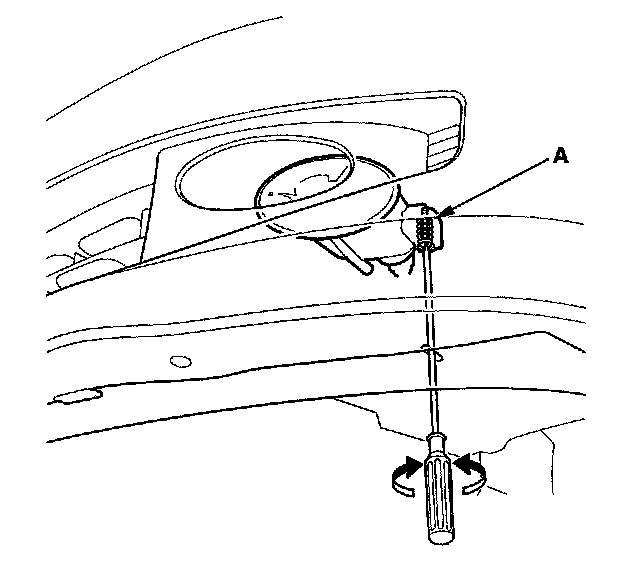

Adjust the fog lights to local requirements by turning adjuster (A).
