License Plate Lamp: Service and Repair

License Plate Light Replacement

1. Open the tailgate and remove the tailgate lower trim.

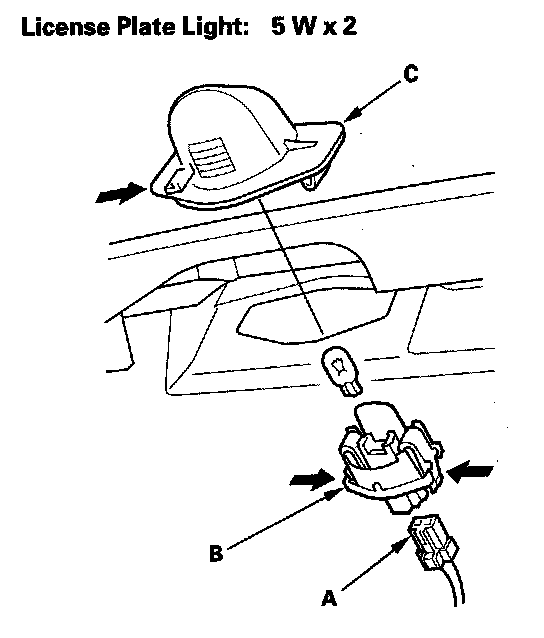

2. Disconnect the 2P connector (A) from the light, then remove the housing (B).






3. Remove the lens (C) from the tailgate.
4. Install the light in the reverse order of removal.
