Tail Lamp: Service and Repair

Taillight Replacement

1. Remove the rear bumper.
2. Open the tailgate and remove the maintenance lid.

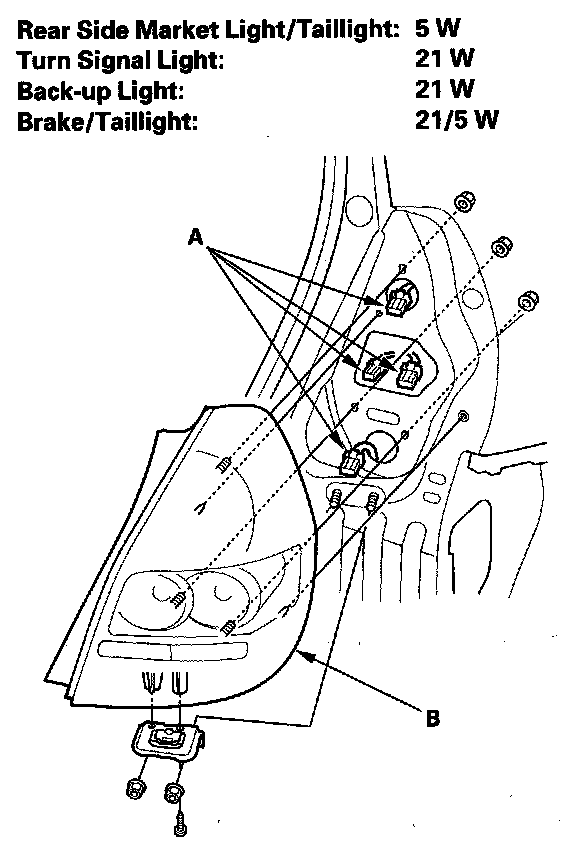

3. Disconnect the connectors (A) from the taillight (B).






4. Remove the mounting nuts and the screw, then remove the taillight.
5. When installing the taillight, check the gasket; if it is distorted or stays compressed, replace it.
6. After installing the taillight, run water over the taillight to make sure they do not leak.
