A/C - Blower Motor Is Noisy/Reduced Blower Speed

11-008

February 16, 2011

Applies To: 2007-08 Fit - ALL

Blower Motor Is Noisy or Blower Motor Speed Is Reduced

SYMPTOM

The blower motor makes excessive noise, has a reduced speed, or intermittently does not work.

PROBABLE CAUSE

There is a poor contact area on the blower motor commutator.

CORRECTIVE ACTION

Replace the blower motor.

PARTS INFORMATION

Blower Motor: P/N 79310-SSA-305

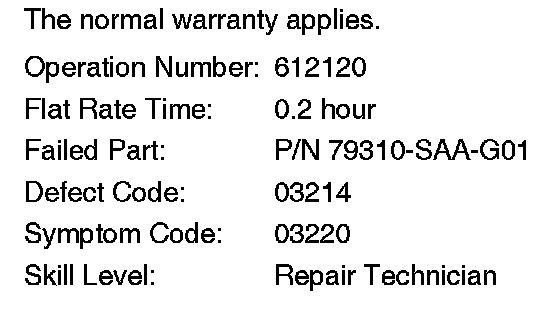

WARRANTY CLAIM INFORMATION

REPAIR PROCEDURE

1. Disconnect the connector from the blower motor.





2. Remove the three blower motor screws and the blower motor.

3. Install a new blower motor with the three screws, then connect the connector.

4. Check the operation of the blower motor.
