A/C, Cooling System - Gurgling Noise From Dash Area
08-096July 14, 2009
Applies To:
2007-08 Fit - ALL
Gurgle From Behind or Under the Dashboard
(Supersedes 08-096, dated December 12, 2008, to revise the information marked by the black bars and asterisks)
*REVISION SUMMARY
Under WARRANTY CLAIM INFORMATION, the Defect Code was changed.*
SYMPTOM
A gurgling noise occurs behind or underneath the dashboard at idle, under light acceleration, or during deceleration.
PROBABLE CAUSE
Air is trapped in the heater core.
CORRECTIVE ACTION
Bleed the air from the cooling system.
REQUIRED MATERIALS
Honda Long Life Antifreeze/Coolant Type 2:
P/N 0L999-9011, H/C 7792401
(One bottle repairs about four vehicles.)
WARRANTY CLAIM INFORMATION
In warranty:
The normal warranty applies.
Operation Number: 1140A2
Flat Rate Time: 0.3 hour
Failed Part: P/N 79110-TF0-G01
H/C 9102922
Defect Code: 03217
Symptom Code: 04201
Template ID: 08-096A
Skill Level: Repair Technician
Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.
REPAIR PROCEDURE
NOTE:
^ Make sure there are no cooling system leaks, and make sure the radiator cap is OK. Leaks or a faulty cap can let air into the cooling system. A leak between the hose fitting on the filler neck and the hose inside the coolant reservoir will cause the same condition. The radiator cap seals to build pressure, and is vented to allow coolant to be drawn out of the reservoir into the radiator. If the hose to the reservoir or the reservoir leaks, air can get into the system.
^ Do not loosen the radiator cap when the engine and radiator are hot, or hot coolant may spray out. Allow the engine and radiator to cool before loosening the radiator cap.
1. With the engine and radiator cool, open the radiator cap, and place the cap loosely on the filler neck, but do not tighten it.
2. Start the engine, and let the vehicle idle until the engine is warm and the cooling fan has cycled on and off twice.
3. Turn the ignition switch to LOCK (0), and remove the radiator cap.

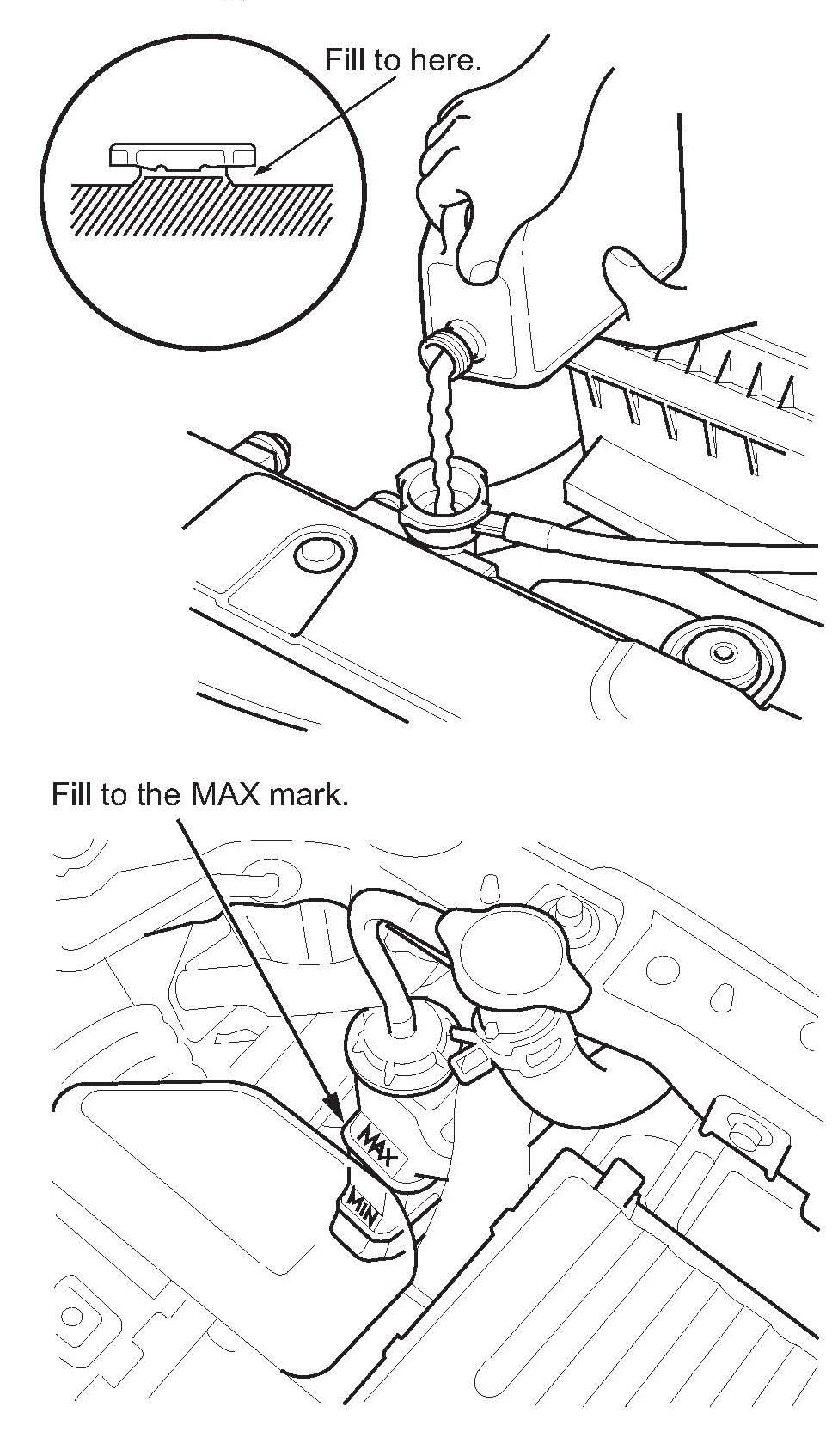

4. Fill the radiator with coolant to the base of the filler neck, and fill the coolant reservoir to the MAX mark.
NOTE:
^ Use only Honda Long Life Antifreeze/Coolant Type 2.
^ Do not add water to Honda Long Life Antifreeze / Coolant Type 2.
5. Install and tighten the radiator cap, then let the engine cool to ambient temperature.
NOTE:
^ Blow air over the engine with an electric fan to cool it more quickly.
^ The coolant level in the reservoir should drop from the MAX mark and approach the MIN mark as the engine cools. If the coolant level does not drop, check for cooling system leaks or a faulty radiator cap. A leak between the hose fitting on the filler neck and the hose inside the coolant reservoir will cause the same condition.
6. When the engine is cool, fill the coolant reservoir to the MAX mark.
NOTE:
Do not loosen or remove the radiator cap.
7. Test-drive the vehicle, and make sure the noise is gone. If the heater core still gurgles, repeat steps 1-6.
