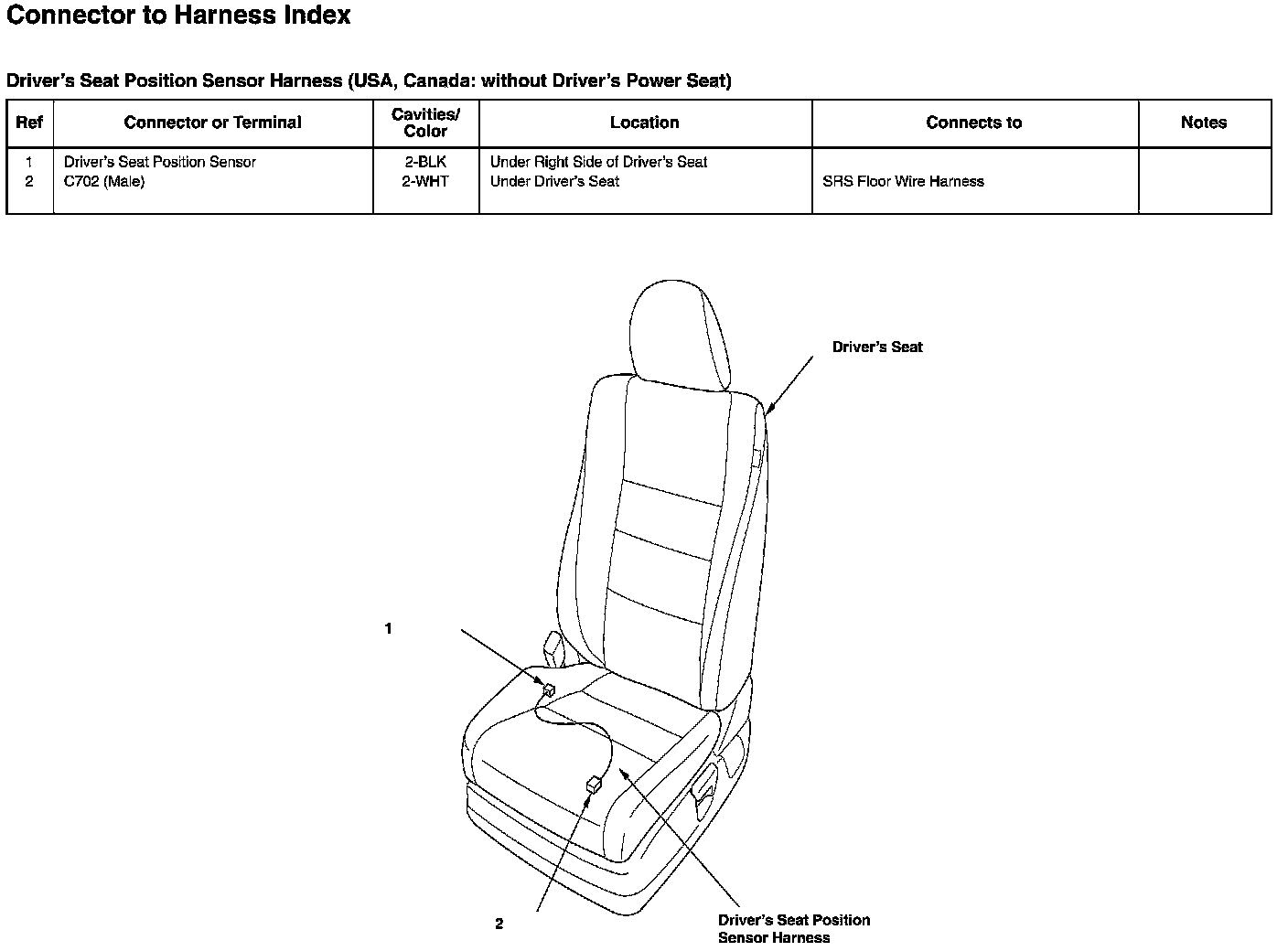

Driver's Seat Position Sensor Harness Connector and Harness Locations (USA, Canada: Without Driver's Power Seat)
Driver's Seat Position Sensor Harness Connector and Harness Locations (USA, Canada: Without Driver's Power Seat)
