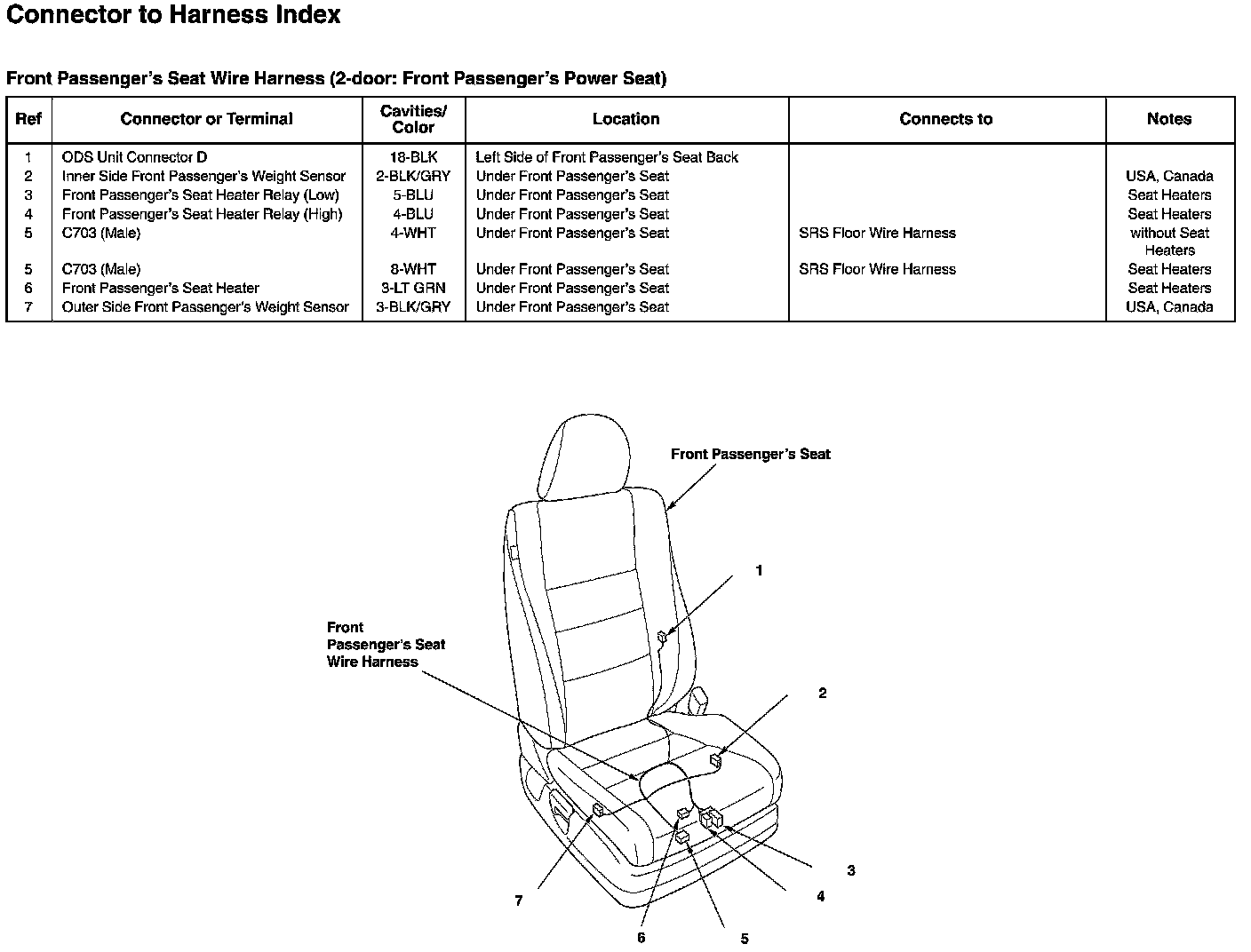

Front Passenger's Seat Wire Harness Connector and Harness Locations (2-Door: Front Passenger's Power Seat)
Front Passenger's Seat Wire Harness Connector and Harness Locations (2-Door: Front Passenger's Power Seat)
