Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2009
>>
Accord V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

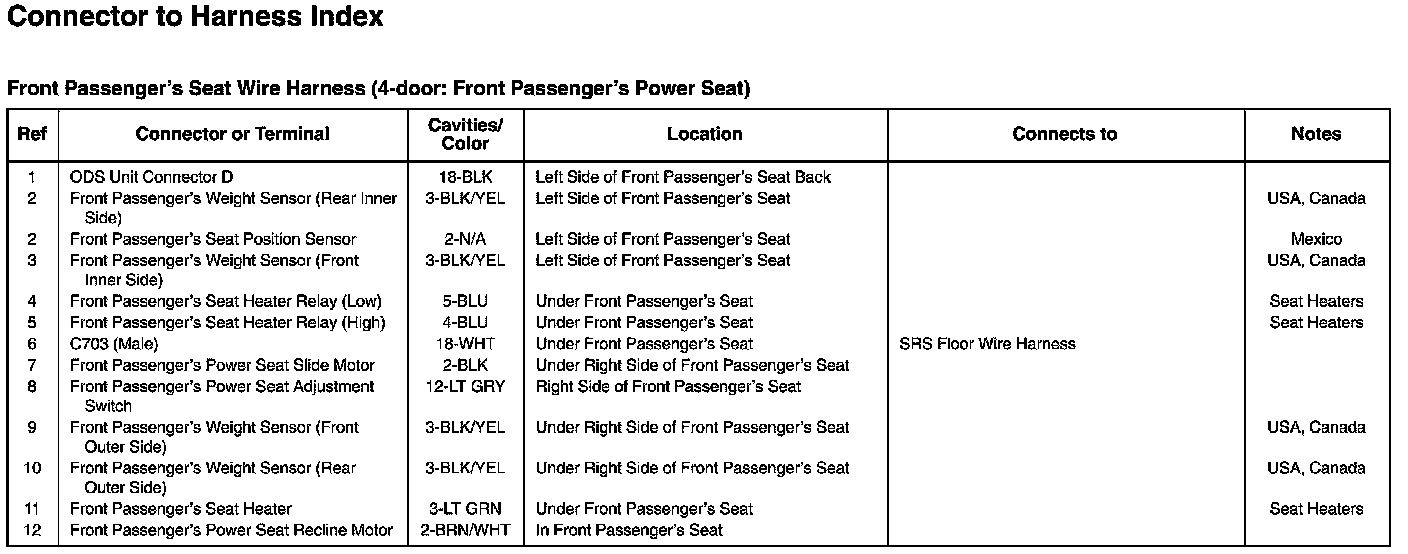

Front Passenger's Seat Wire Harness Connector and Harness Locations (4-Door: Front Passenger's Power Seat)
Front Passenger's Seat Wire Harness Connector and Harness Locations (4-Door: Front Passenger's Power Seat)
