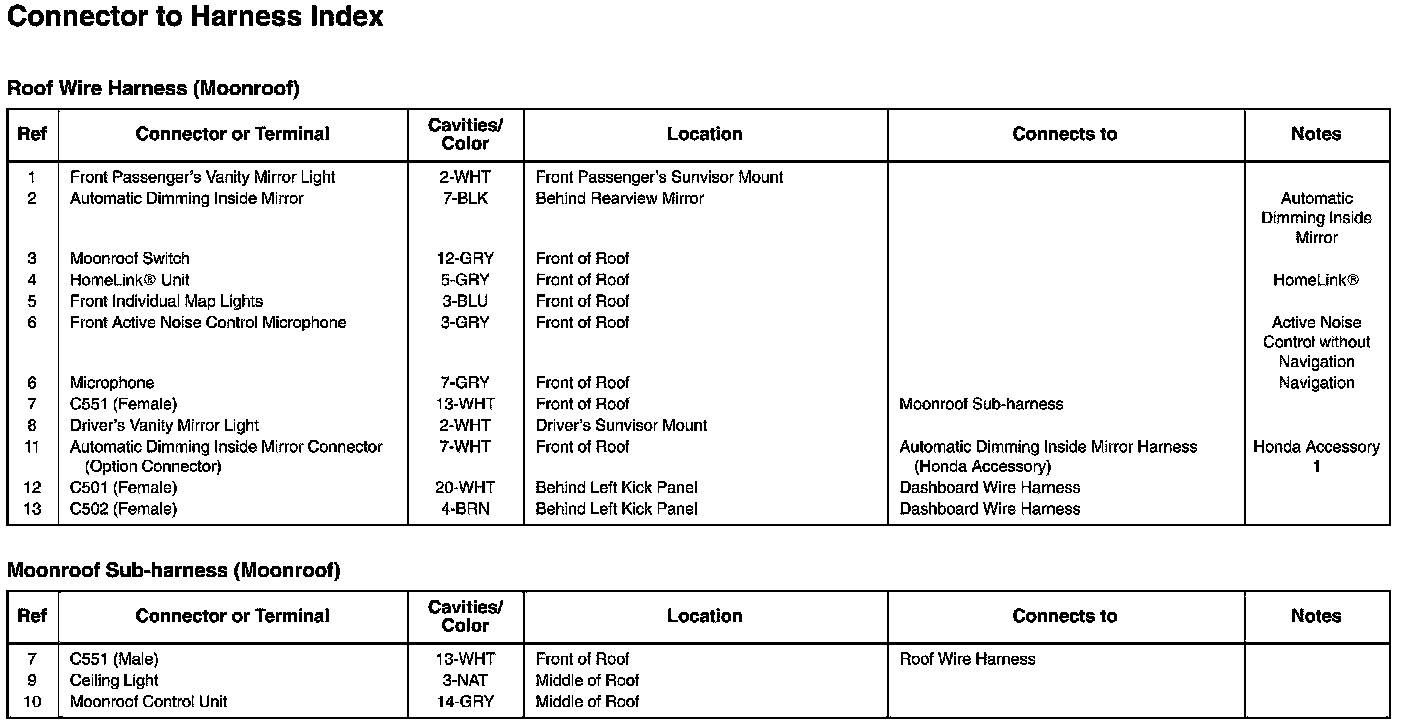

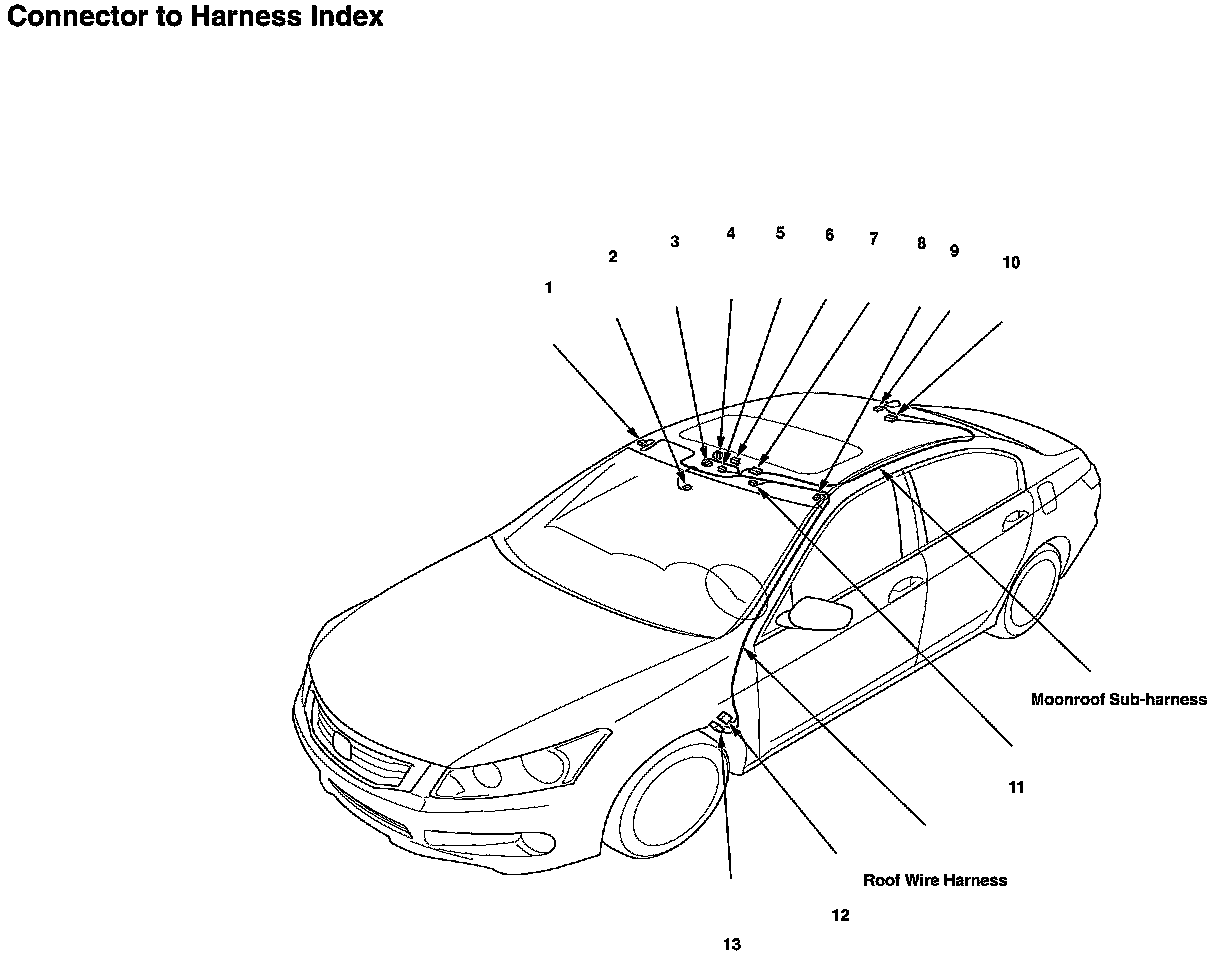

Roof Wire Harness and Moonroof Sub-Harness Connector and Harness Locations (Moonroof)
Roof Wire Harness and Moonroof Sub-Harness Connector and Harness Locations (Moonroof)
