Entry Lights Control System Control Unit Input Test

Entry Lights Control System Control Unit Input Test

NOTE:Before testing, troubleshoot the multiplex integrated control unit first, using B-CAN System Diagnosis Test Mode A. Troubleshooting - B-CAN System Diagnosis Test Mode A

Driver's MICU

1. Turn the ignition switch to LOCK (0), and remove the driver's dashboard lower cover. Drivers Dashboard Lower Cover Removal/Installation

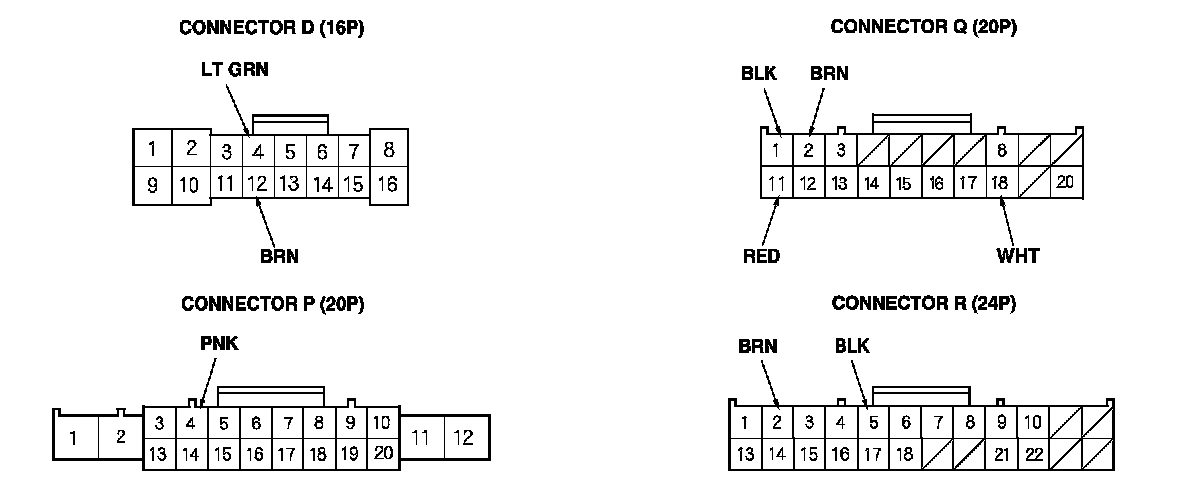

2. Disconnect driver's under-dash fuse/relay box connectors D, P, Q, and R.
NOTE: All connector views are shown from wire side of female terminals.

3. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.

- If the terminals look OK, go to step 4.

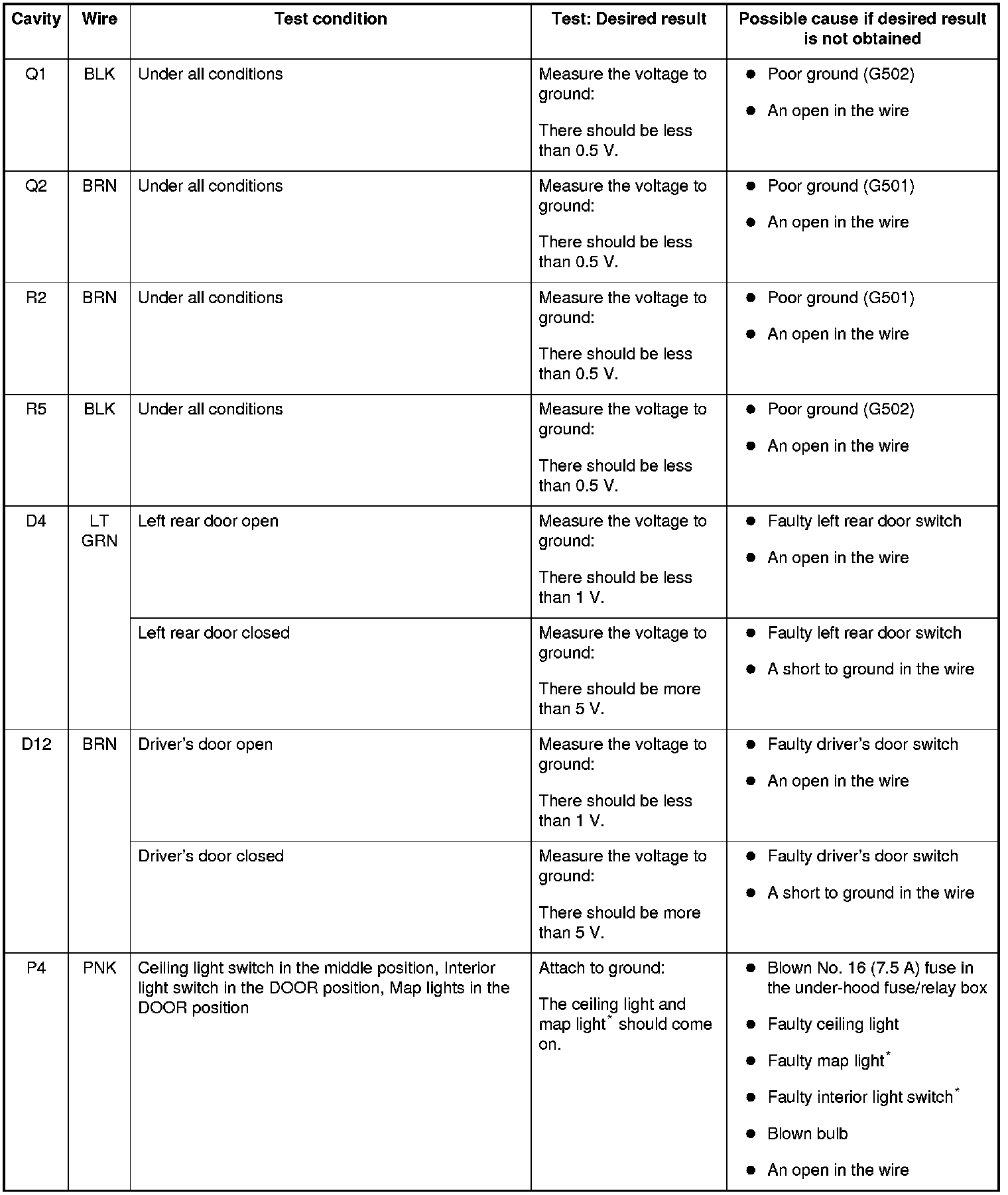

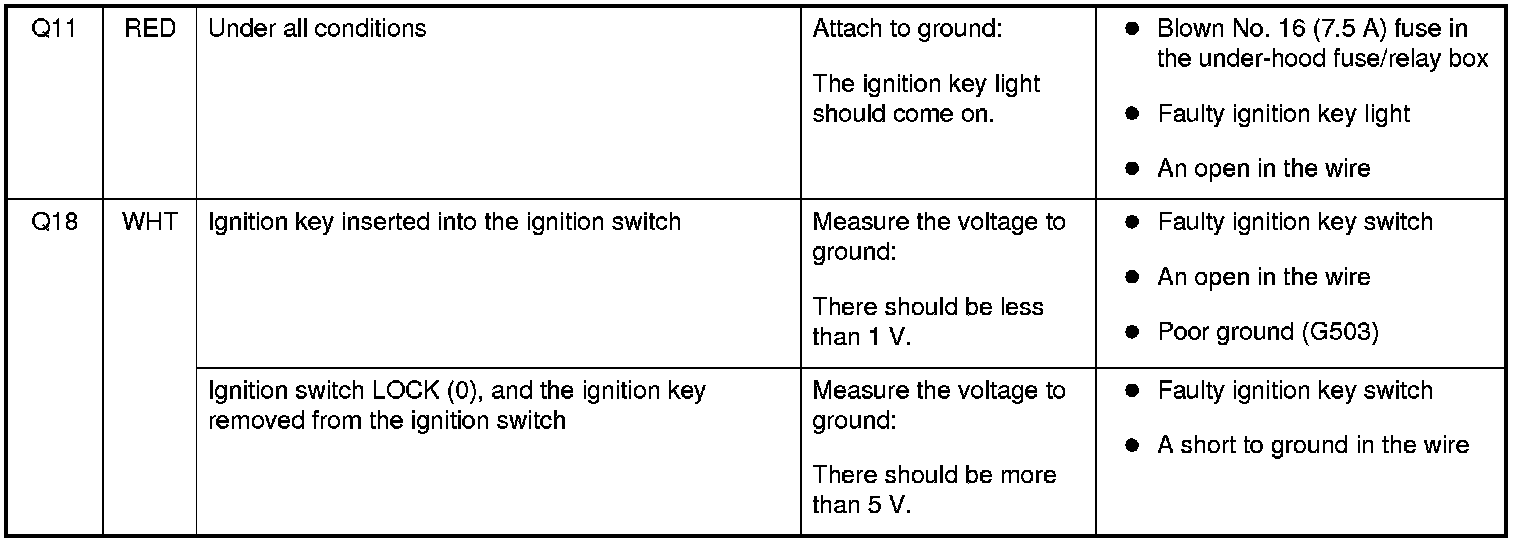

4. Reconnect the connectors to the driver's under-dash fuse/relay box, and make these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 5.









*: With moonroof






Passenger's MICU

5. Turn the ignition switch to LOCK (0), and remove the right kick panel.
- 2-door Interior Trim Removal/Installation - Door Sill Area (2-Door)

- 4-door Interior Trim Removal/Installation - Front Door Sill Area (4-Door)

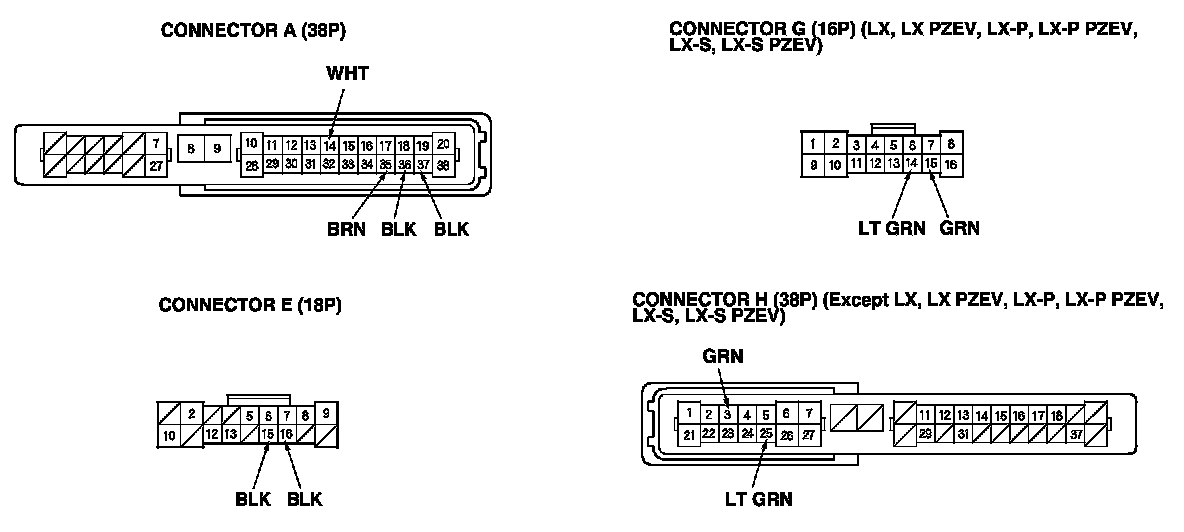

6. Disconnect passenger's under-dash fuse/relay box connectors A, E, and G*1 (or H*2).
*1: LX, LX PZEV, LX-P, LX-P PZEV, LX-S, LX-S PZEV

*2: Except LX, LX PZEV, LX-P, LX-P PZEV, LX-S, LX-S PZEV

NOTE: All connector views are wire side of female terminals.

7. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.

- If the terminals look OK, go to step 8.

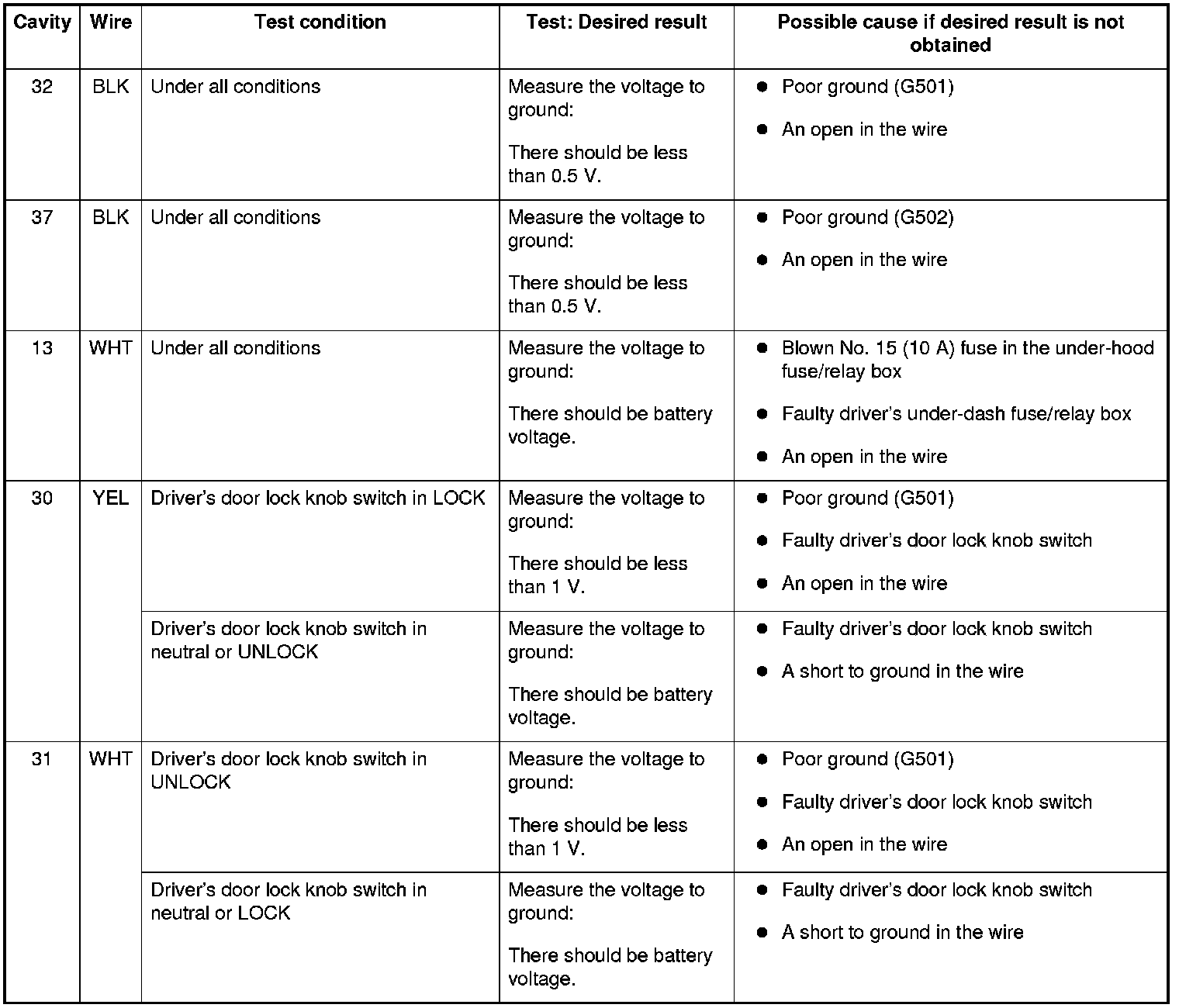

8. Reconnect the connectors to the passenger's under-dash fuse/relay box, and make these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 9.





*1: LX, LX PZEV, LX-P, LX-P PZEV, LX-S, LX-S PZEV

*2: Except LX, LX PZEV, LX-P, LX-P PZEV, LX-S, LX-S PZEV

Door Multiplex Control Unit

9. Turn the ignition switch to LOCK (0), and remove the power window master switch. Power Window Master Switch Replacement (4-Door)

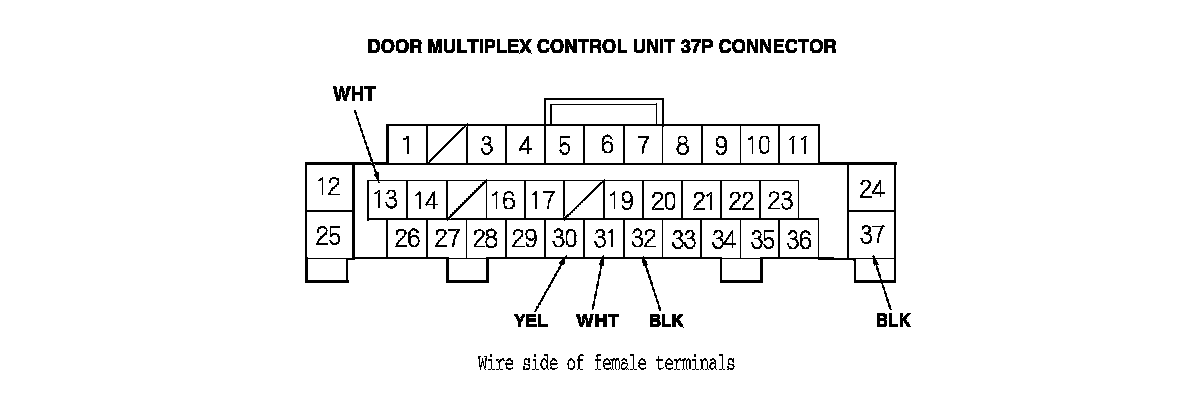

10. Disconnect the 37P connector from the door multiplex control unit.

11. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.

- If the terminals look OK, go to step 12.





12. Reconnect the 37P connector to the door multiplex control unit, and make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 13.





13. If multiple failures are found on more than one control unit, replace the driver's under-dash fuse/relay box (includes the driver's MICU). Drivers Under-Dash Fuse/Relay Box (MICU) Removal/Installation If input failures are related to a particular control unit, replace the control unit.
