Exterior Lights MICU Input Test

Exterior Lights MICU Input Test

NOTE:

- Before testing, troubleshoot the multiplex integrated control unit first, using B-CAN System Diagnosis Test Mode A. Troubleshooting - B-CAN System Diagnosis Test Mode A

- Before testing, check the No. 15 (7.5 A) and No. 26 (10 A) fuses in the driver's under-dash fuse/relay box and No. 3 (10 A) fuse in the passenger's under-dash fuse/relay box.

Driver's MICU

1. Turn the ignition switch to LOCK (0), and remove the driver's dashboard lower cover.

2. Disconnect driver's under-dash fuse/relay box connectors B, D, F, G, Q, and R.
NOTE: All connector views are shown from wire side of female terminals.

3. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.

- If the terminals look OK, go to step 4.

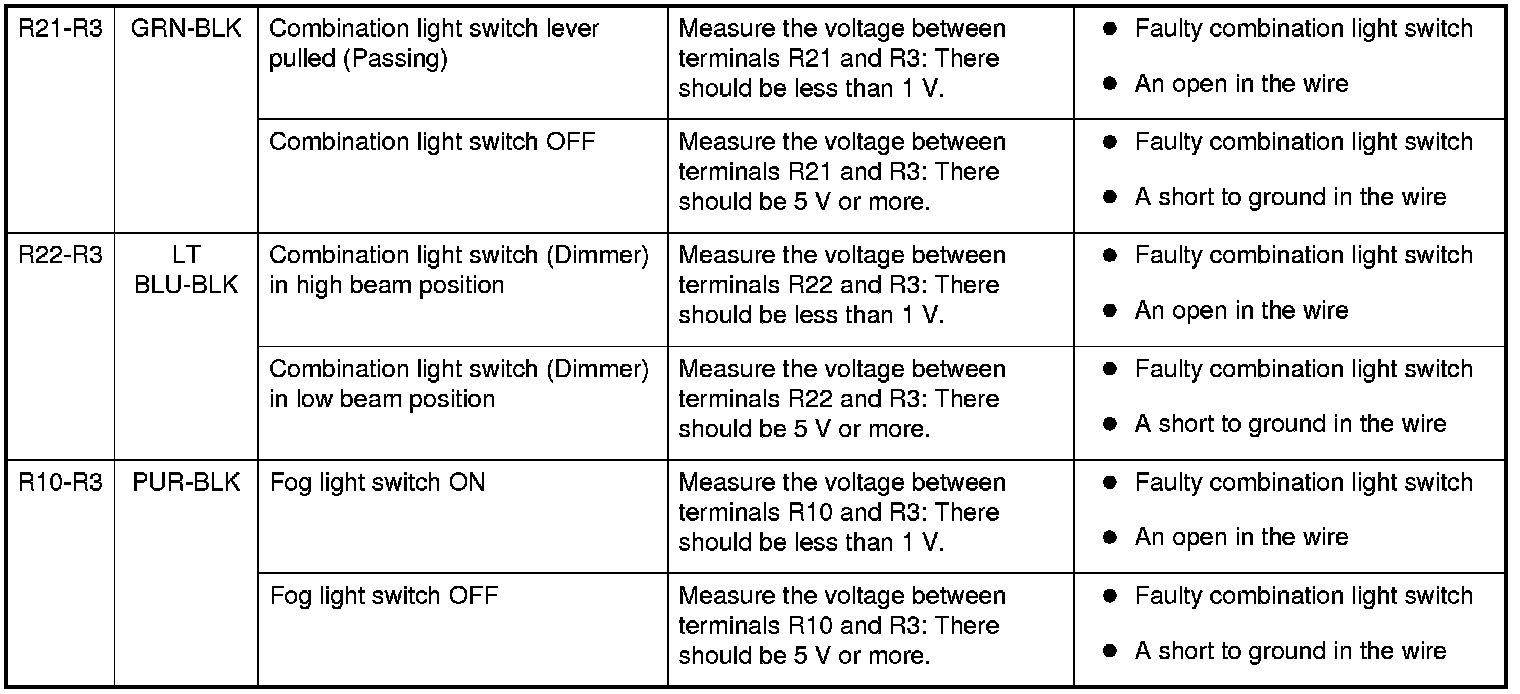

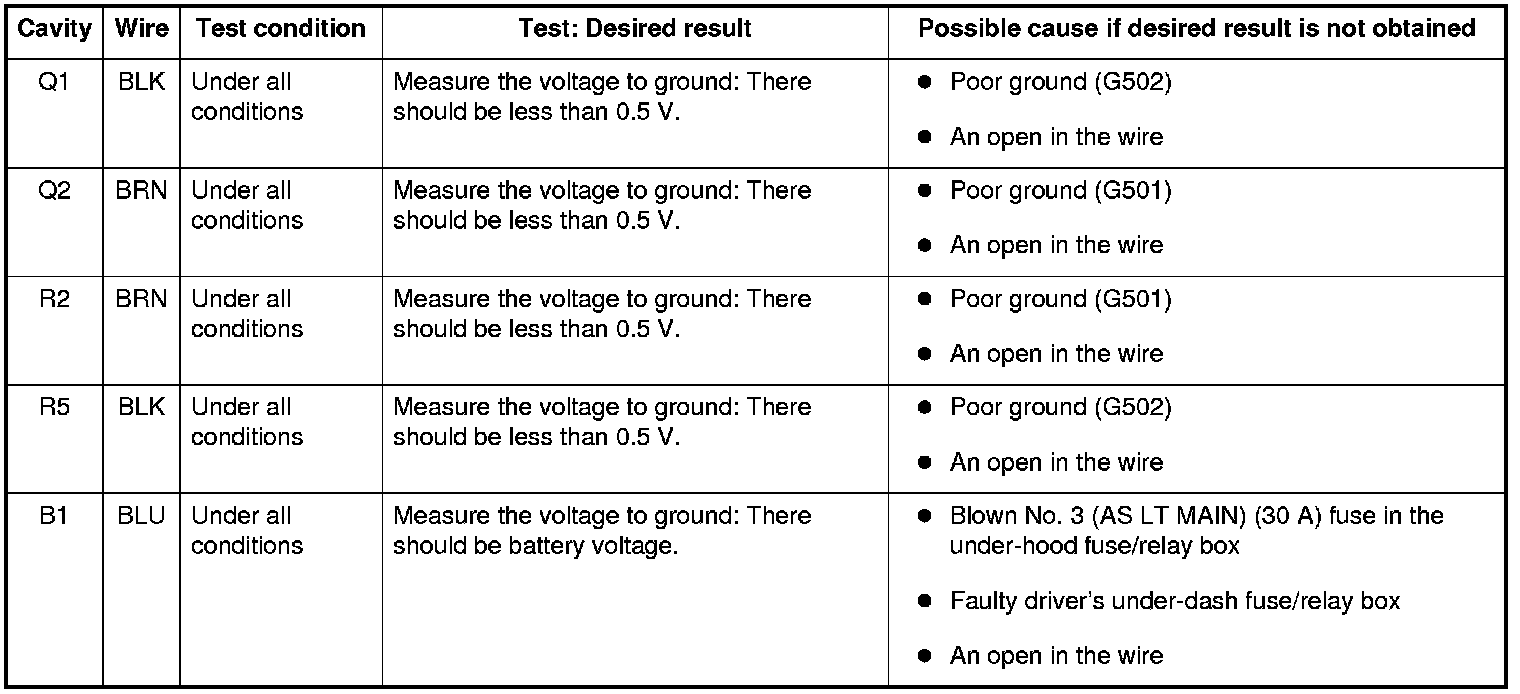

4. With the connectors still disconnected, make these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 5.





5. Reconnect the connectors to the driver's under-dash fuse/relay box, and make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 6.


















Passenger's MICU

6. Turn the ignition switch to LOCK (0), and remove the right kick panel:
- 2-door. Interior Trim Removal/Installation - Door Sill Area (2-Door)

- 4-door. Interior Trim Removal/Installation - Front Door Sill Area (4-Door)

7. Disconnect passenger's under-dash fuse/relay box connectors A and E.
NOTE: All connector views are shown from wire side of female terminals.

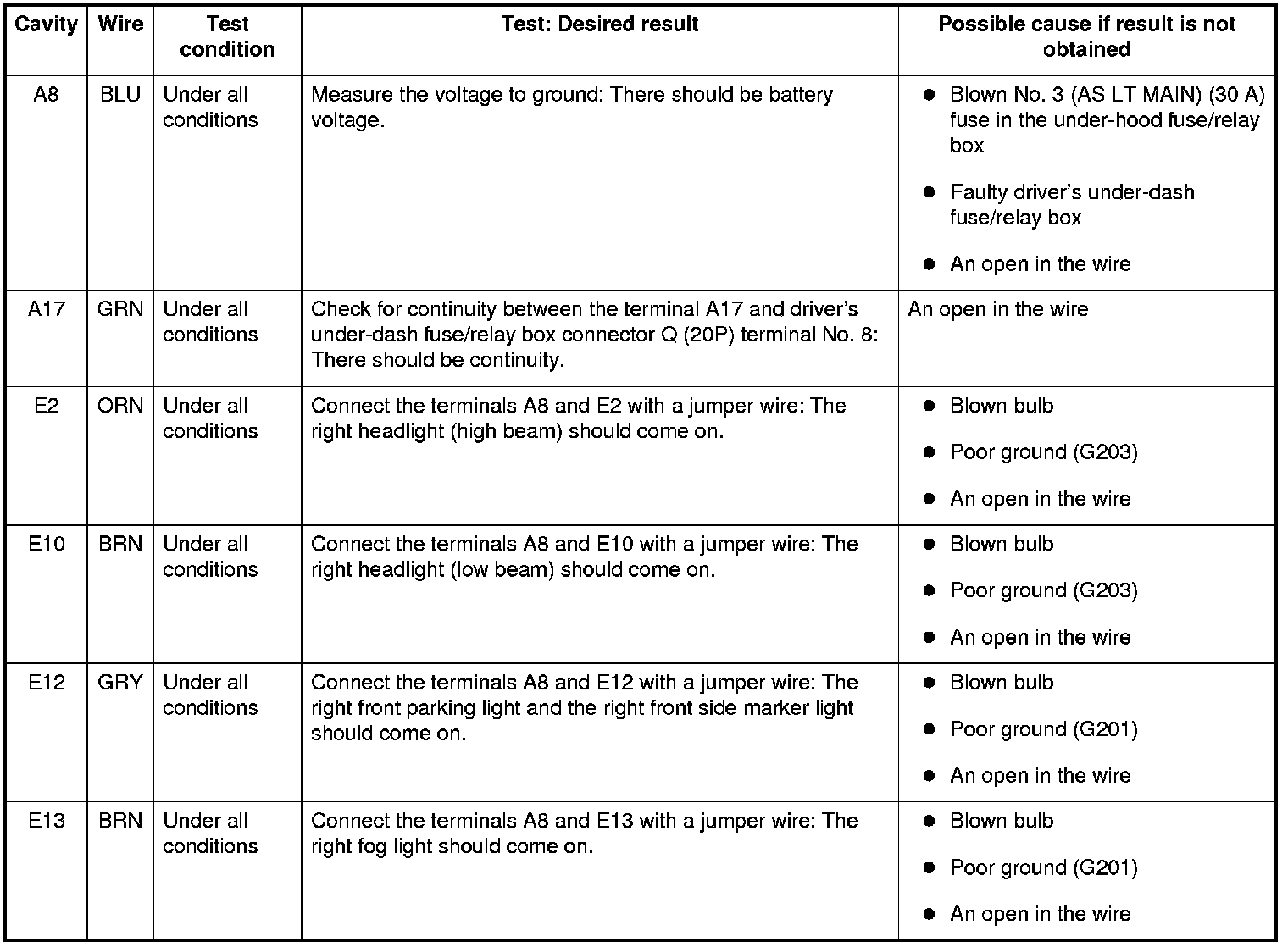

8. With the connectors still disconnected, make these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 9.





9. If multiple failures are found on more than one control unit, replace the driver's under-dash fuse/relay box (includes the driver's MICU). Drivers Under-Dash Fuse/Relay Box (MICU) Removal/Installation If input failures are related to a particular control unit, replace the passenger's under-dash fuse/relay box (includes the passenger's MICU). Passengers Under-Dash Fuse/Relay Box (MICU) Removal/Installation
