Fog Light Switch Test/Replacement

Fog Light Switch Test/Replacement

1. Remove the driver's dashboard lower cover. Drivers Dashboard Lower Cover Removal/Installation

2. Remove the steering column covers. Service and Repair

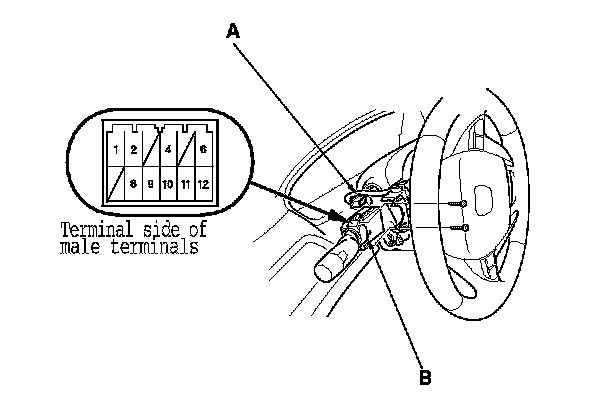

3. Disconnect the 12P connector (A) from the combination light switch (fog light switch) (B).

4. Remove the two screws, then slide out the combination light switch.






5. Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

- If the terminals look OK, check for continuity between the terminals in each switch position according to the table.

6. If the continuity check is not as specified, replace the switch.

Fog light switch:
