Wiper Motor Test (2-Door)

Wiper Motor Test

2-door

1. Remove the driver's side wiper arm. Service and Repair

2. Remove the left side cowl cover. Service and Repair

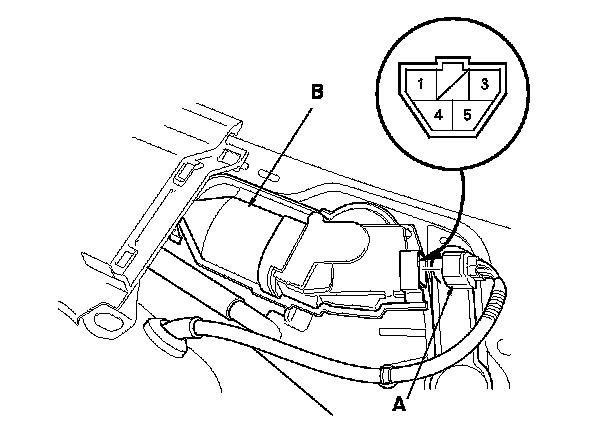

3. Disconnect 5P connector (A) from the wiper motor (B).

4. Test the motor by connecting battery power to the terminal No. 3 and ground to the terminal No. 4 of the wiper motor connector 5P. The motor should run at low speed.

5. Test the motor by connecting battery power to the terminal No. 5 and ground to the terminal No. 4 of the wiper motor connector 5P. The motor should run at high speed.

6. Connect an analog ohmmeter to the terminals No. 1 and No. 4, and run the motor at low or high speed. The needle of the ohmmeter should pulse.

7. If the motor does not run or fails to run smoothly, or there is no pulse, replace the motor.
