P0300
DTC Troubleshooting: P0300
DTC P0300: Random Misfire and Any Combination of the Following:
DTC P0301: No. 1 Cylinder Misfire Detected
DTC P0302: No. 2 Cylinder Misfire Detected
DTC P0303: No. 3 Cylinder Misfire Detected
DTC P0304: No. 4 Cylinder Misfire Detected
Special Tools Required
- Pressure gauge adapter 07NAJ-P07010A
- A/T low pressure gauge w/panel 07406-0070301
- A/T pressure hose 07406-0020201
- A/T pressure hose, 2,210 mm 07MAJ-PY4011A
- A/T pressure adapter 07MAJ-PY40120
- Oil pressure hose 07ZAJ-S5AA200
NOTE:
- Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information. Initial Inspection and Diagnostic Overview
- If the misfire is frequent enough to trigger detection of increased emissions during two consecutive driving cycles, the MIL will come on, and DTC P0300 (and some of the combination of P0301 through P0304) will be stored.
- If the misfire is frequent enough to damage the catalyst, the MIL will blink whenever the misfire occurs, and DTC P0300 (and some of the combination of P0301 through P0304) will be stored. When the misfire stops, the MIL will remain on.
- If any of the DTCs listed below are indicated at the same time as the random misfire DTCs, troubleshoot those DTCs first, then recheck for random misfire DTCs:
P0101, P0102, P0103: Mass air flow (MAF) sensor
P0107, P0108, P1128, P1129: Manifold absolute pressure (MAP) sensor
P0171, P0172: Fuel system
P0181, P0182, P0183: Fuel temperature sensor
P0191, P0192, P0193: Fuel rail pressure sensor
P0335, P0339: Crankshaft position (CKP) sensor
P0351, P0352, P0353, P0354: Ignition coil
P0365, P0369: Camshaft position (CMP) sensor
P0506, P0507: Idle control system
P1187, P1188: Fuel tank temperature (FTT) sensor
P1192, P1193: Fuel tank pressure (FTP) sensor
P2646, P2647, P2648, P2649: VTEC system
1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Start the engine, and let it idle without load (in P or N).
4. Monitor the OBD STATUS for DTC P0301, P0302, P0303, or P0304 in the DTCs MENU with the HDS.
Does the screen indicate FAILED?
YES - Go to step 9.
NO - If the screen indicates PASSED, go to step 5. If the screen indicates EXECUTING, keep idling until a result comes on. If the screen indicates OUT OF CONDITION, wait for several minutes, then recheck.
5. Check the CYL1 MISFIRE, CYL2 MISFIRE, CYL3 MISFIRE, and/or CYL4 MISFIRE in the DATA LIST for 10 minutes with the HDS.
Does the CYL1 MISFIRE, CYL2 MISFIRE, CYL3 MISFIRE, and/or CYL4 MISFIRE show misfire counts?
YES - Go to step 9.
NO - Go to step 6.
6. Test-drive the vehicle for several minutes in the range of these recorded freeze data parameters:
- ENGINE SPEED
- VSS
- REL TP SENSOR
- CLV (calculated load value)
- APP SENSOR
7. Monitor the OBD STATUS for DTC P0301, P0302, P0303, or P0304 in the DTCs MENU with the HDS.
Does the screen indicate FAILED?
YES - Go to step 9.
NO - If the screen indicates PASSED, go to step 8. If the screen indicates EXECUTING, keep driving until a result comes on. If the screen indicates OUT OF CONDITION, go to step 6 and recheck.
8. Check the CYL1 MISFIRE, CYL2 MISFIRE, CYL3 MISFIRE, and/or CYL4 MISFIRE in the DATA LIST for 10 minutes with the HDS.
Does the CYL1 MISFIRE, CYL2 MISFIRE, CYL3 MISFIRE, and/or CYL4 MISFIRE show misfire counts?
YES - Go to step 9.
NO - Intermittent failure, the system is OK at this time.
9. Turn the ignition switch to LOCK (0).
10. Inspect the spark plugs. Testing and Inspection If the spark plugs are fouled or worn, replace them.
11. Test-drive the vehicle for several minutes in the range of these recorded freeze data parameters:
- ENGINE SPEED
- VSS
- REL TP SENSOR
- CLV (calculated load value)
- APP SENSOR
12. Check the CYL1 MISFIRE, CYL2 MISFIRE, CYL3 MISFIRE, and/or CYL4 MISFIRE in the DATA LIST for 10 minutes with the HDS.
Does the CYL1 MISFIRE, CYL2 MISFIRE, CYL3 MISFIRE, and/or CYL4 MISFIRE show misfire counts?
YES - Go to step 13.
NO - Go to step 23.
13. Start the engine. Hold the engine speed at 3,000 rpm without load (in P or N) until the radiator fan comes on, then let it idle.
14. Check for these conditions:
- Engine coolant temperature (ECT SENSOR 1) above 176 °F (80 °C)
- Transmission in P or N
- All electrical loads off
15. Monitor the ENGINE SPEED in the DATA LIST with the HDS, and hold the engine speed at 2,500 rpm. Once the engine speed is met, hold the accelerator pedal steady for more than 10 seconds.
Did the engine speed vary more than 100 rpm from 2,500 rpm?
YES - Try to keep the engine speed between 2,500 rpm±100 rpm for more than 10 seconds. After the condition is met, step 16.
NO - Go to step 16.
16. While holding the engine speed at 2,500 rpm, check the MAF SENSOR in the DATA LIST with the HDS.
Is there about 5.9-8.5 gm/s?
YES - Go to step 17.
NO - Replace the MAF sensor/IAT sensor, Service and Repair then go to step 22.
17. Turn the ignition switch to LOCK (0).

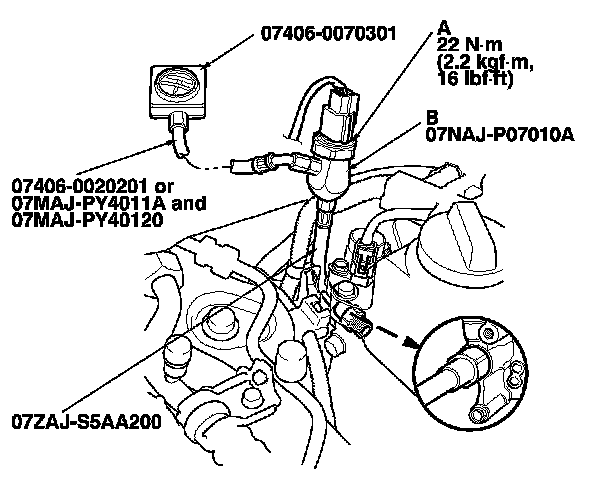

18. Remove the EOP sensor (A), and attach the special tools as shown, then attach the rocker arm oil pressure sensor (EOP sensor) to the pressure gauge adapter (B).
NOTE: Install the parts in the reverse order of removal with a new O-ring.
19. Reconnect the rocker arm oil pressure sensor (EOP sensor) 3P connector.
20. Start the engine. Hold the engine speed at 3,000 rpm without load (in P or N) until the radiator fan comes on, then let it idle.
21. Check the oil pressure at engine speeds of 1,000 rpm and 2,000 rpm.
Is the oil pressure below 49 kPa (7 psi, 0.5 kgf/cm2)?
YES - Go to step 23.
NO - Inspect the VTEC system, then go to step 22.
22. Turn the ignition switch to ON (II).
23. Reset the PCM with the HDS.
24. Clear the CKP pattern with the HDS.
25. Do the PCM idle learn procedure. ECM/PCM Idle Learn Procedure
26. Do the CKP pattern learn procedure. Initial Inspection and Diagnostic Overview
27. Test-drive the vehicle for several minutes in the range of these recorded freeze data parameters:
- ENGINE SPEED
- VSS
- REL TP SENSOR
- CLV (calculated load value)
- APP SENSOR
28. Check for Temporary DTCs or DTCs with the HDS.
Is DTC P0300, P0301, P0302, P0303, or P0304 indicated?
YES - Check for poor connections or loose terminals at the ignition coil, the injector, and the PCM, then go to troubleshooting DTC P0301, P0302, P0303, or P0304. P0301
NO - Go to step 29.
29. Monitor the OBD STATUS for DTC P0301, P0302, P0303, or P0304 in the DTCs MENU with the HDS.
Does the screen indicate PASSED?
YES - Troubleshooting is complete. If any other Temporary DTCs or DTCs were indicated in step 28, go to the indicated DTC's troubleshooting.
NO - If the screen indicates FAILED, go to step 1 and recheck. If the screen indicates EXECUTING, keep driving until a result comes on. If the screen indicates OUT OF CONDITION, go to step 27.
