Door Switch: Service and Repair

Fuel Fill Door Switch Replacement

NOTE:

- Put on gloves to protect your hands.

- Take care not to scratch the body and related parts.

1. Remove the these items:
- Fuel pipe protector Fuel Pipe Protector Replacement

- Trunk side trim panel, left side

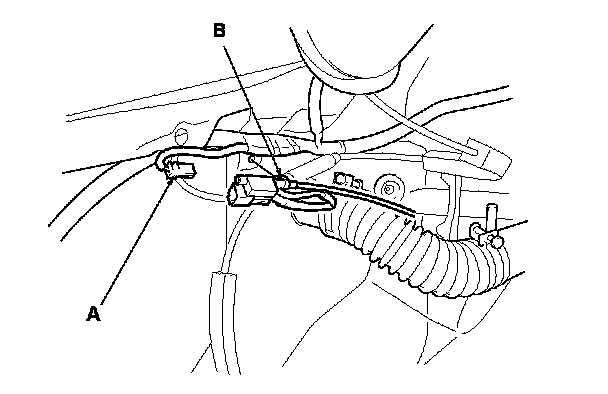

2. From the trunk compartment, disconnect the fuel fill door switch connector (A), and detach the harness clip (B).

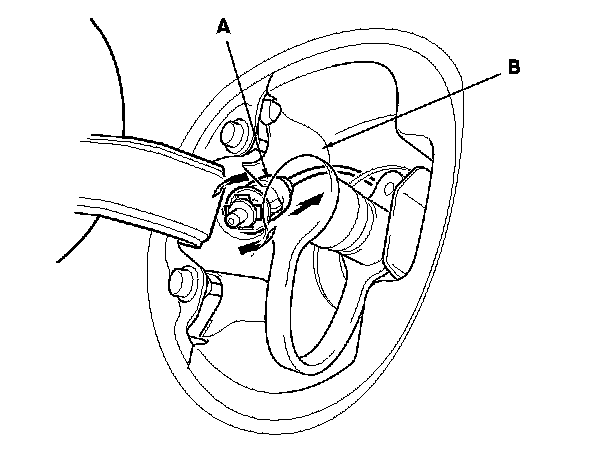

3. Open the fuel fill door, and from the wheel arch, remove the fuel fill door switch (A) by turning it 90 ° from the fuel receptacle adapter (B).

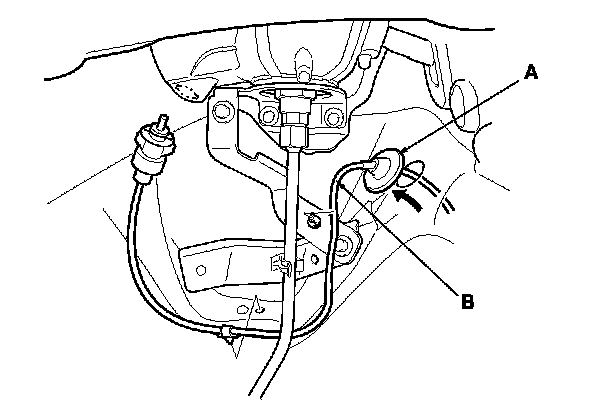

4. From the wheel arch, detach the clips, and remove the grommet (A), then pull the fuel fill door switch cable (B) out through the hole in the body. Take care not to kink the cable.






5. Install the fuel fill door switch cable in the reverse order of removal, and note these items:
- Check for damages or stress-whitened clips, and replace them with new ones.

- Align the marks (A) on the sensor cable (B) with the cable clips (C) and grommet (D) as shown.

- Make sure the grommet is installed to the body properly.

- Make sure the fuel fill door switch connector is plugged in properly.
