Door Switch: Testing and Inspection




Fuel Fill Door Switch Test

1. Remove the trunk left side trim panel. Interior Trim Removal/Installation - Trunk Area (4-Door)

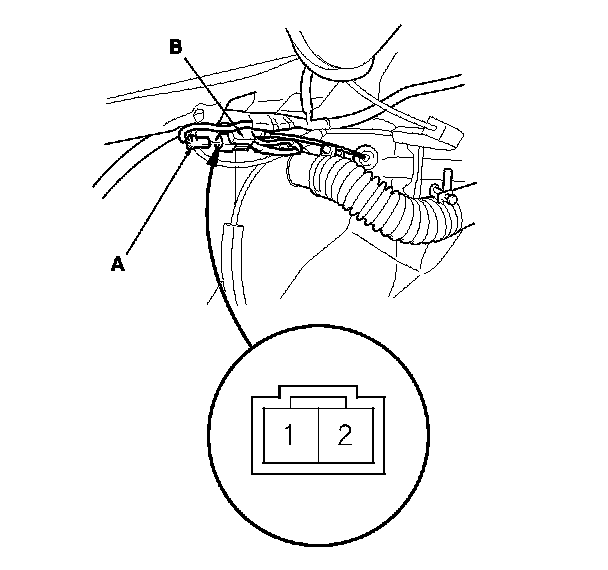

2. Disconnect the 2P connector (A) from the fuel fill door switch (B).

3. Check for continuity between the terminals.
- There should be continuity between terminals No. 1 and No. 2 with the fuel fill door in the open.

4. If the continuity is not as specified, replace the fuel fill door switch. Service and Repair
