CNG Fuel System - Fuel Receptacle Check
08-085November 14, 2008
Applies To:
1998-2009 Civic GX - ALL
Civic GX Fuel Receptacle Check
BACKGROUND

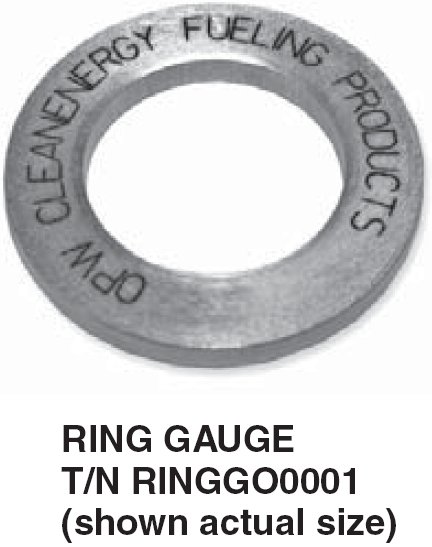

Over time, the fuel receptacle can become worn. A worn fuel receptacle is usually noticed as a raised lip around the outside of the receptacle. To check for a worn fuel receptacle, a new tool (Ring Gauge, T/N RINGGO0001) is available.
ORDERING INFORMATION
One ring gauge was shipped to each CNG-certified dealer as a required special tool. Additional ring gauges can be ordered through the Honda Tool and Equipment Program. To order on the iN, click on Service, then Service Bay, then Tool and Equipment Program. From the Tool and Equipment Program menu, click on the Online Catalog tab, and then search for Ring Gauge.
USING THE RING GAUGE
NOTE:
This simple check should be done whenever a Civic GX is in your shop for scheduled maintenance.
1. Open the fuel receptacle door.
2. Remove the dust cap from the fuel receptacle, and clean off any dirt or debris around the receptacle.

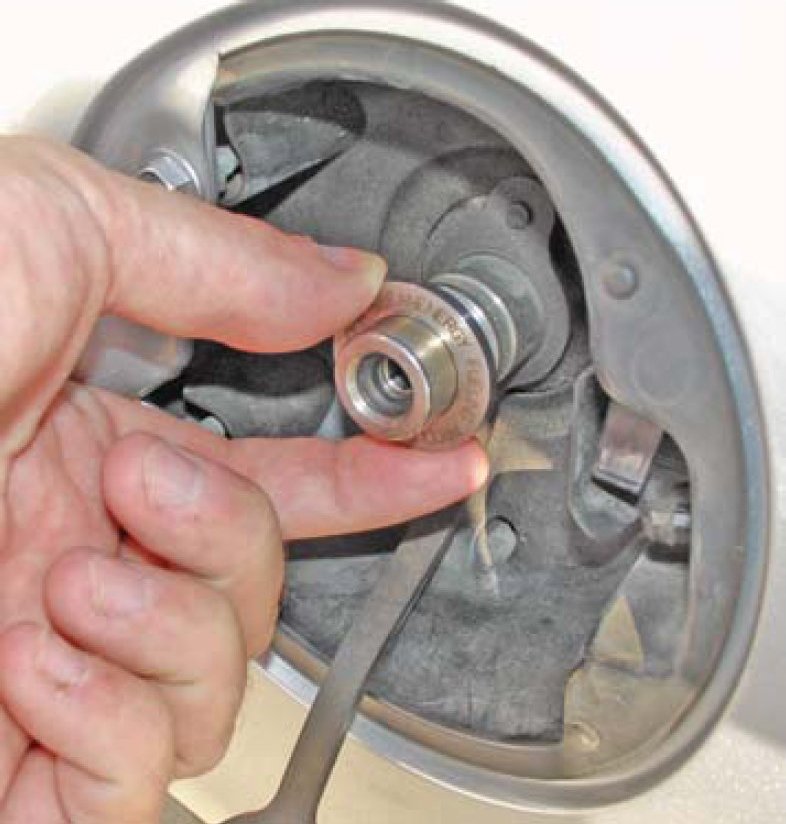

3. Slide the ring gauge over the fuel receptacle.
- If the ring gauge slides easily past the first lip on the fuel receptacle, the receptacle is OK. Remove the ring gauge, reinstall the dust cap, close the fuel receptacle door, and continue with your maintenance procedures.
OK
Ring gauge slides easily past first lip on fuel receptacle.
- If the ring gauge does not slide easily over the first lip on the fuel receptacle, the receptacle needs to be replaced. Refer to section 11 of the appropriate service manual for the replacement procedure.
NOT OK
Ring gauge does not slide easily over first lip of fuel receptacle.
