Cellular Phone: Description and Operation

HandsFreeLink System Description

HandsFreeLink Control Unit Inputs and Outputs

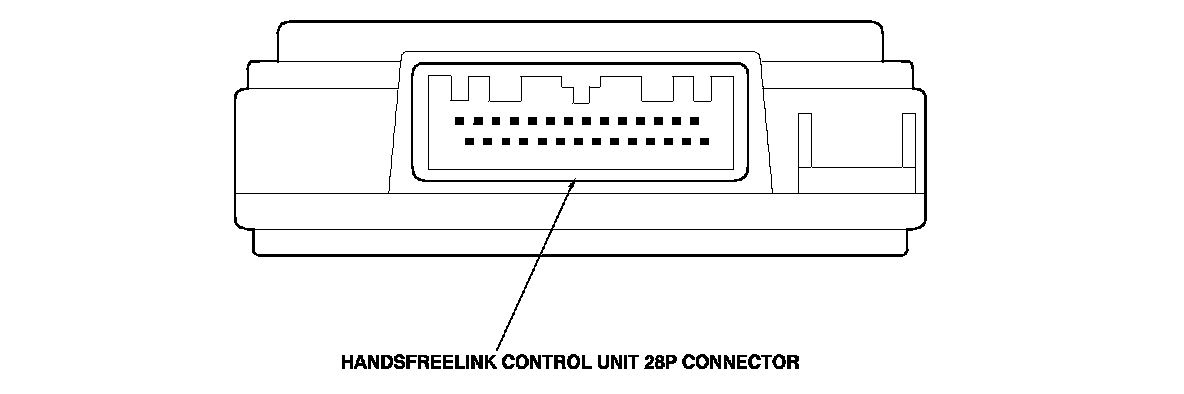

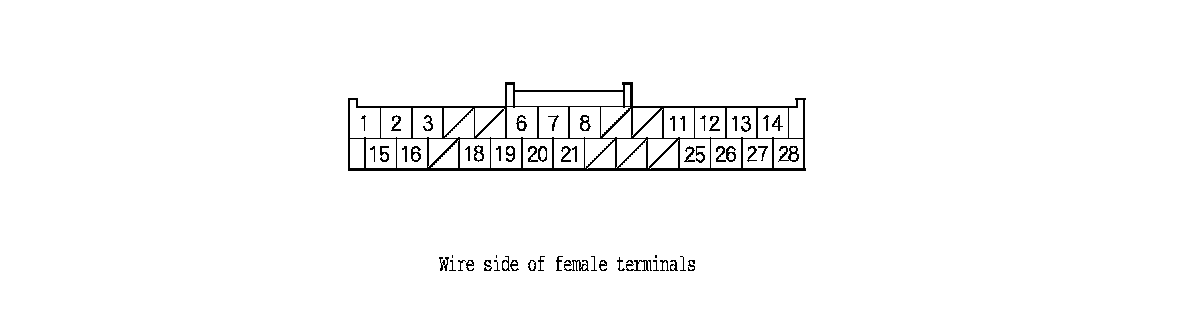

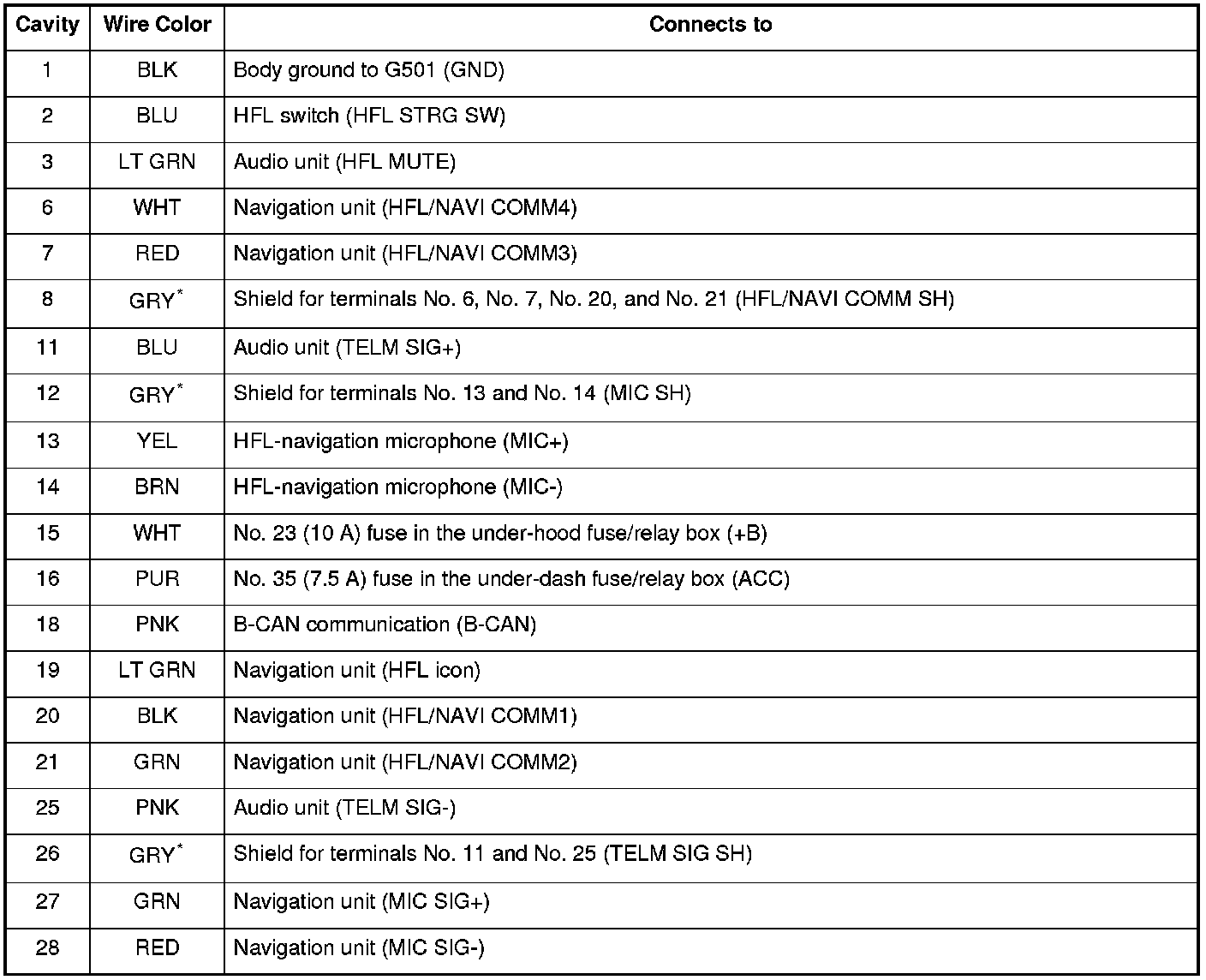

HANDSFREELINK CONTROL UNIT 28P CONNECTOR









*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
