Rear Seat Armrest Beverage Holder Replacement (4-Door)

Rear Seat Armrest Beverage Holder Replacement

Special Tools Required

- KTC trim tool set SOJATP2014*

For Some Models - 4-door

NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

- Take care not to tear or damage the seat covers.

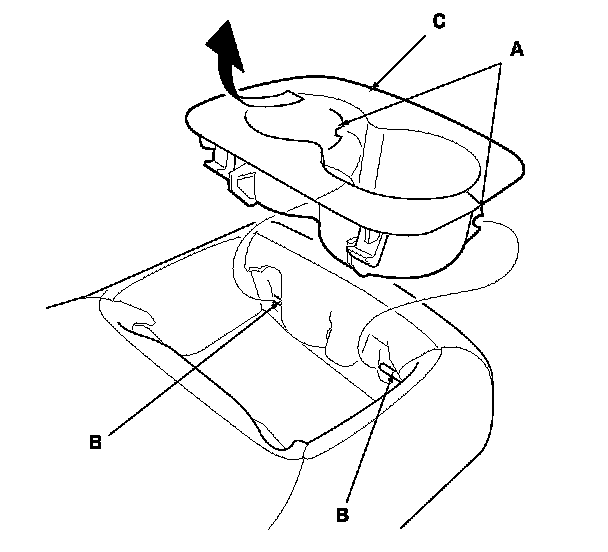

1. Using a trim tool, push on the bottom ribs (A) of the rear hooks (B) to pull the beverage holder (C), then release the hooks from the wire (D).






2. Release the front hooks (A) from the wire (B), then remove the beverage holder (C).

3. Install the beverage holder in the reverse order of removal. Make sure the front hooks are installed securely to the wire, then push down on the beverage holder and install the rear hooks into the wire securely.
