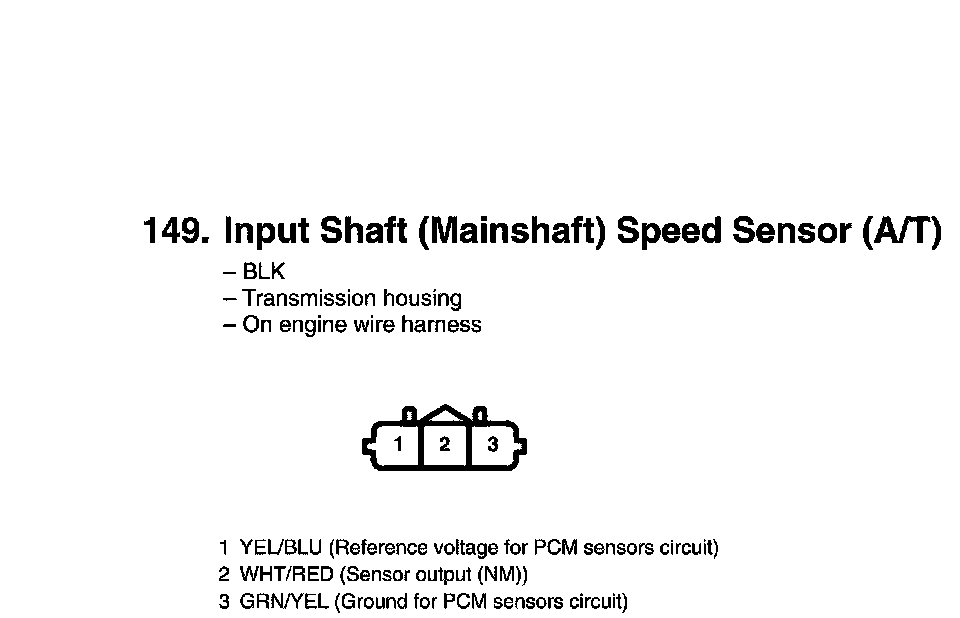

View 149 Input Shaft (Mainshaft) Speed Sensor Connector View (A/T)
View 149 Input Shaft (Mainshaft) Speed Sensor Connector View (A/T)
