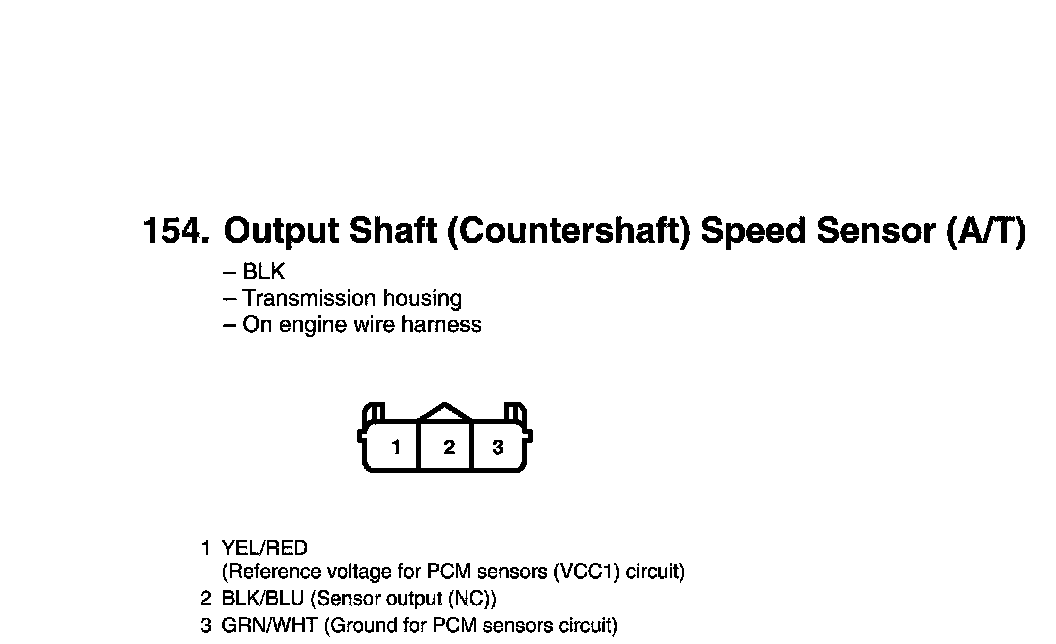

View 154 Output Shaft (Countershaft) Speed Sensor Connector View (A/T)
View 154 Output Shaft (Countershaft) Speed Sensor Connector View (A/T)
