Home >> Honda >> 2009 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 190 Fog Light Relay Connector View (Honda Accessory)

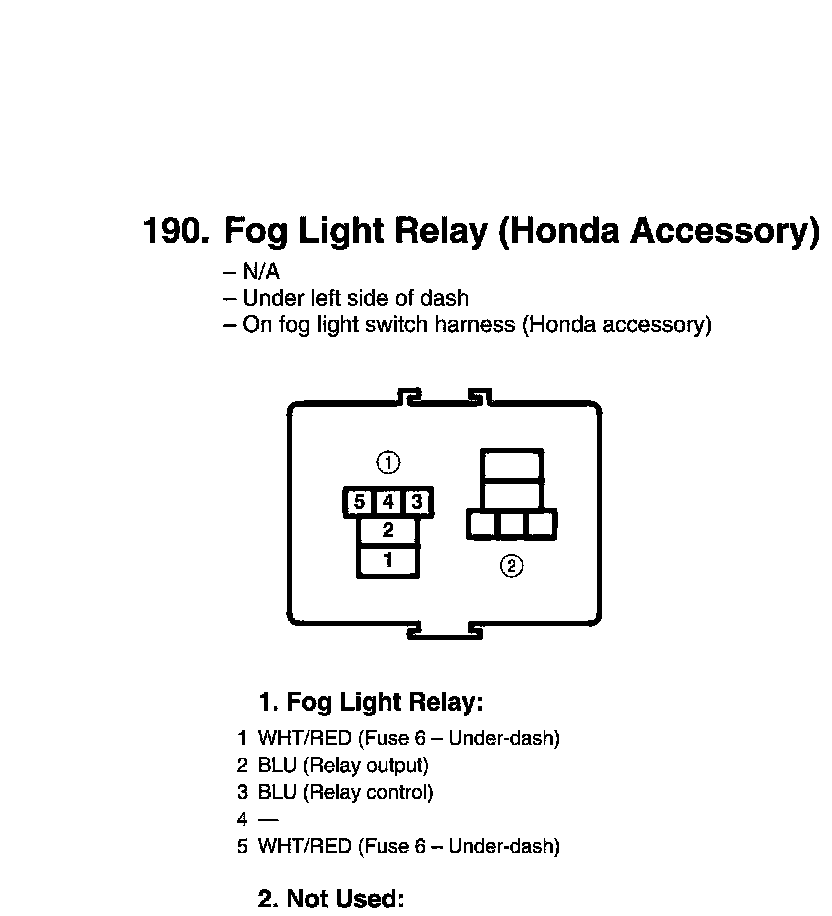

View 190 Fog Light Relay Connector View (Honda Accessory)
