Home >> Honda >> 2009 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 217 Front Passengers Seat Heater Switch Connector View

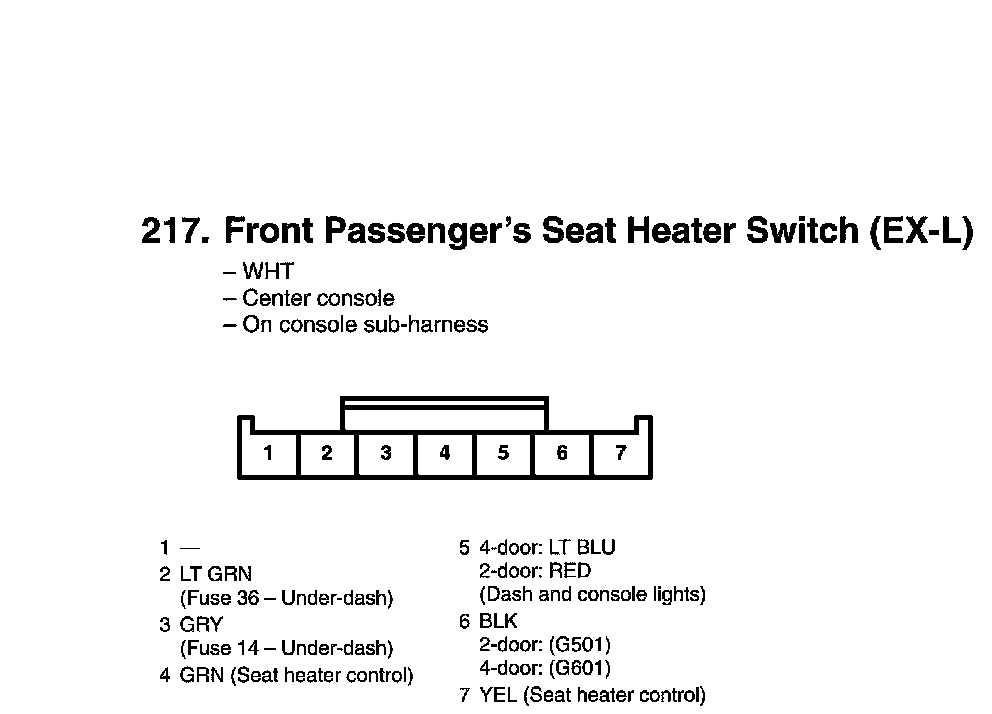

View 217 Front Passengers Seat Heater Switch Connector View
