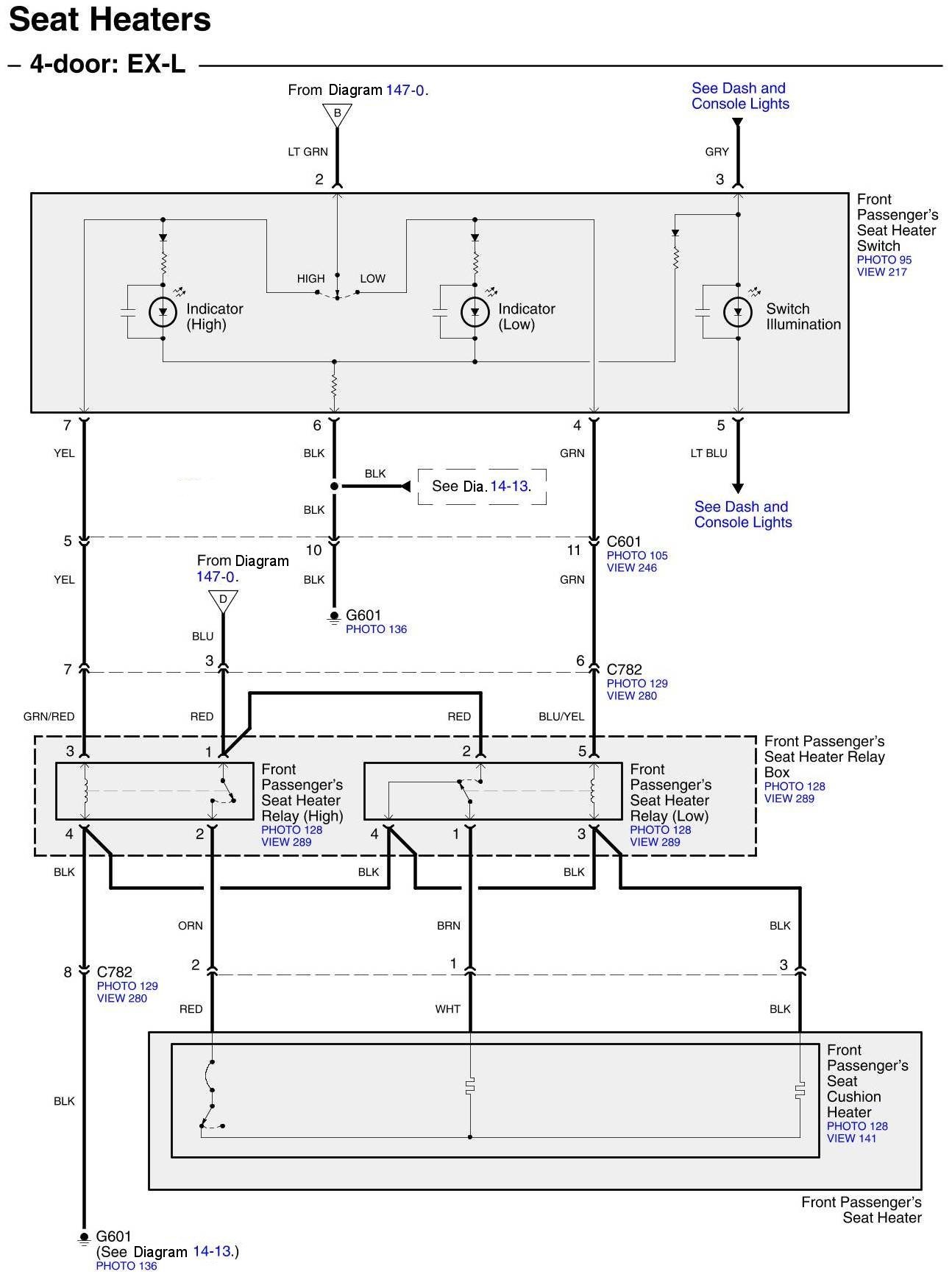

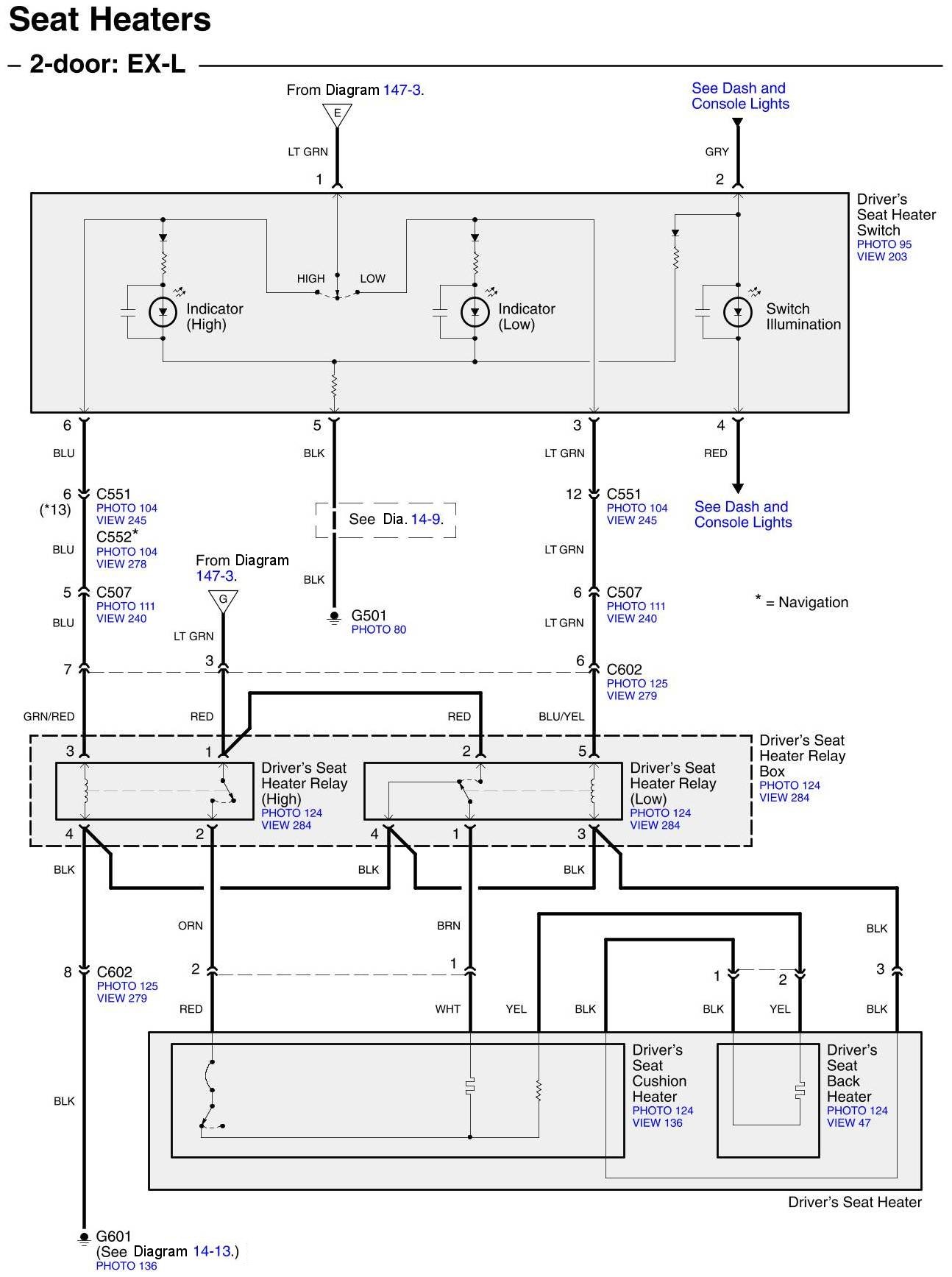

Diagram Set 147 (Seat Heaters)

Diagram 147-0:



Diagram 147-1:



Diagram 147-2:



Diagram 147-3:



Diagram 147-4:



Diagram 147-5:
