Diagram Set 156 (Navigation System)

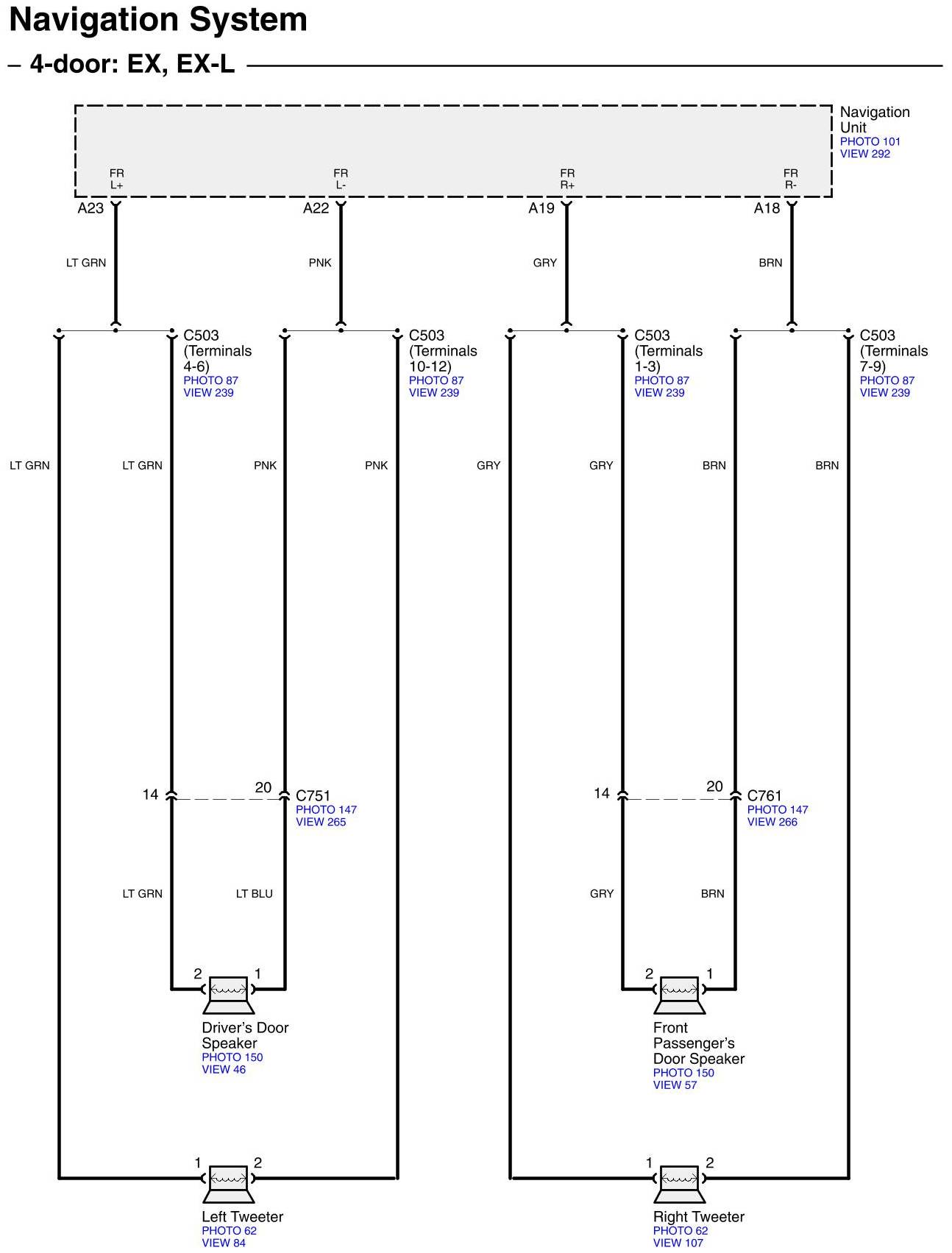

Diagram 156-0:



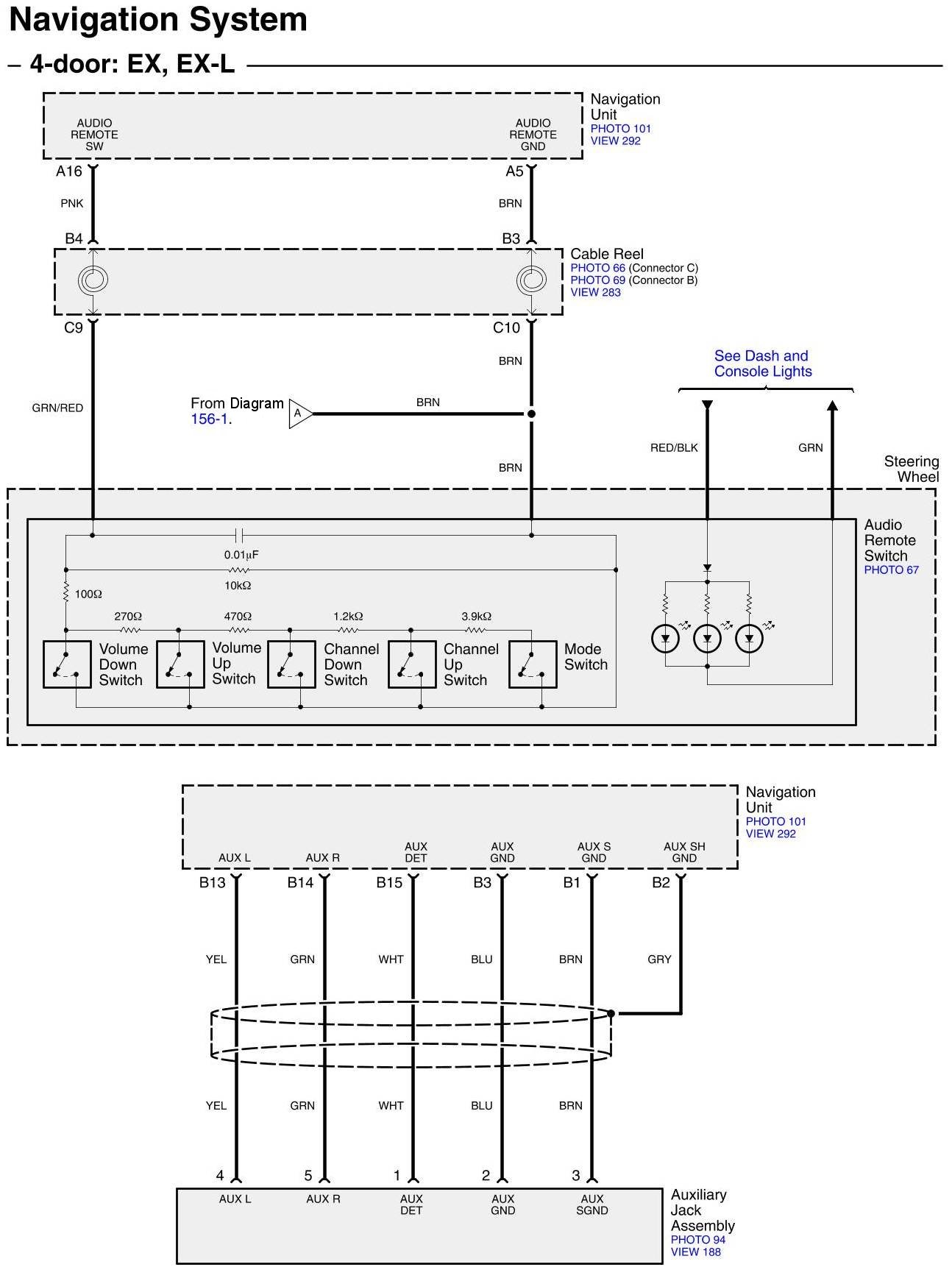

Diagram 156-1:



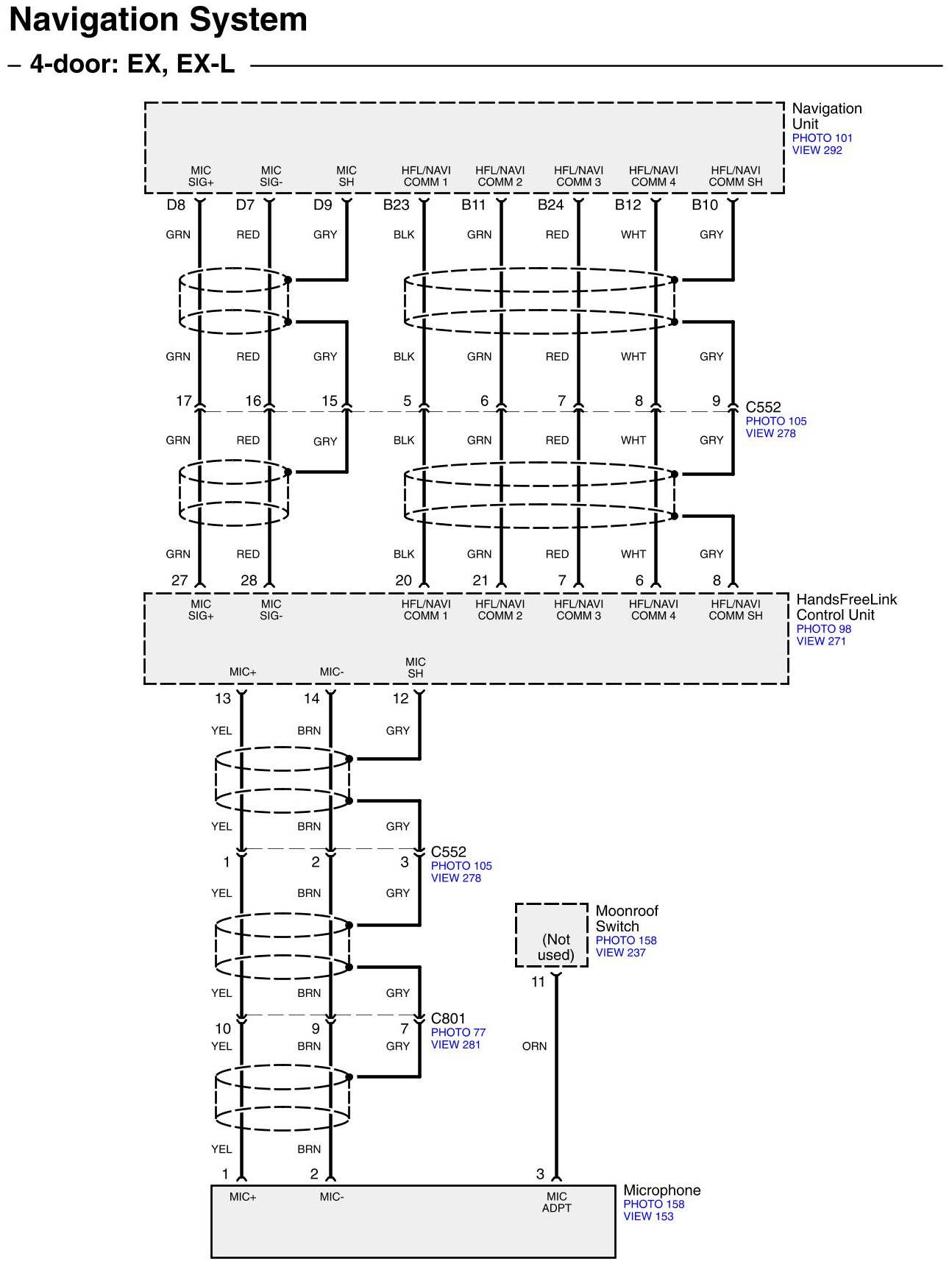

Diagram 156-2:



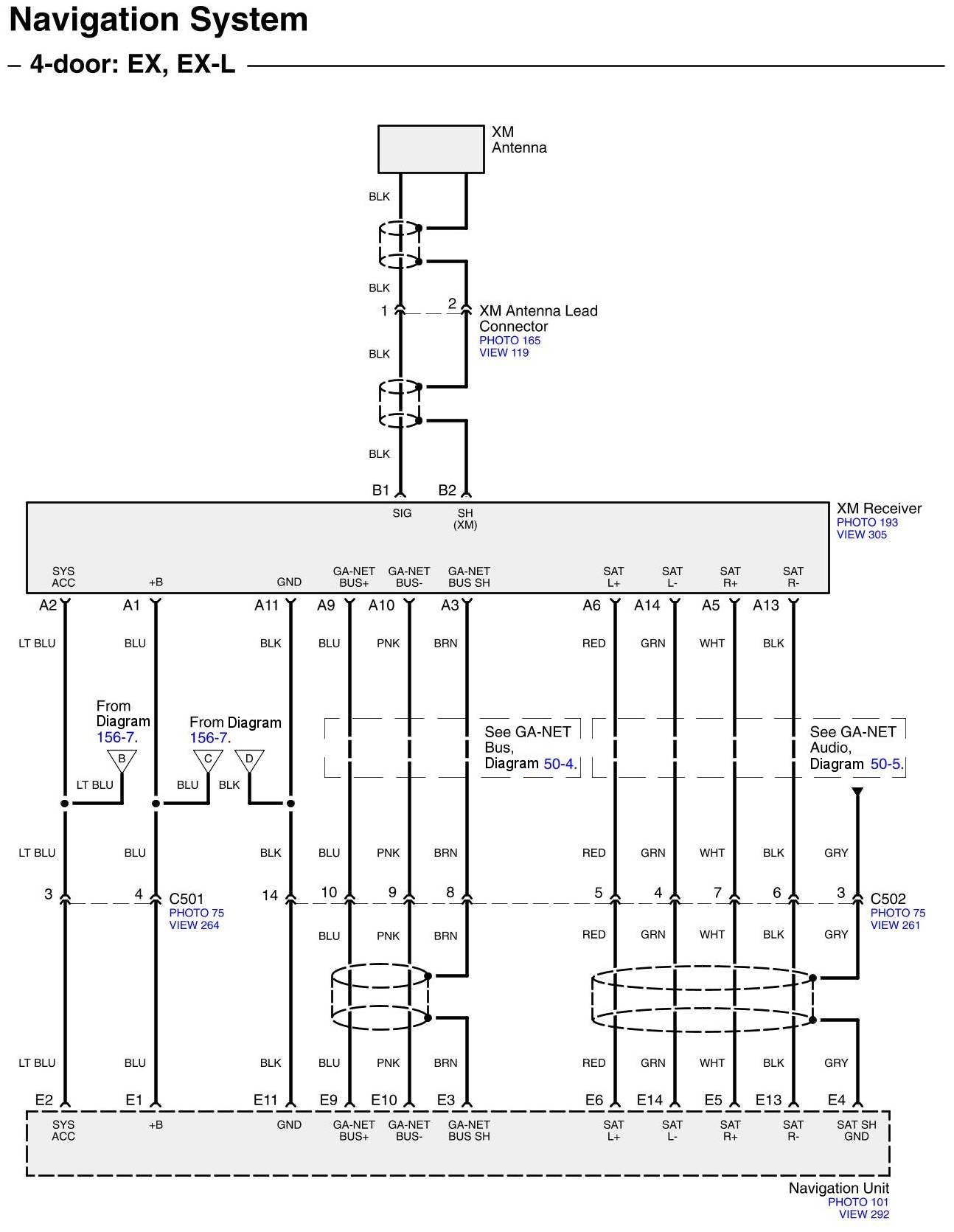

Diagram 156-3:



Diagram 156-4:



Diagram 156-5:



Diagram 156-6:



Diagram 156-7:



Diagram 156-18:



Diagram 156-19:



Diagram 156-20:



Diagram 156-21:



Diagram 156-22:



Diagram 156-23:



Diagram 156-24:



Diagram 156-25:



Diagram 156-26:
