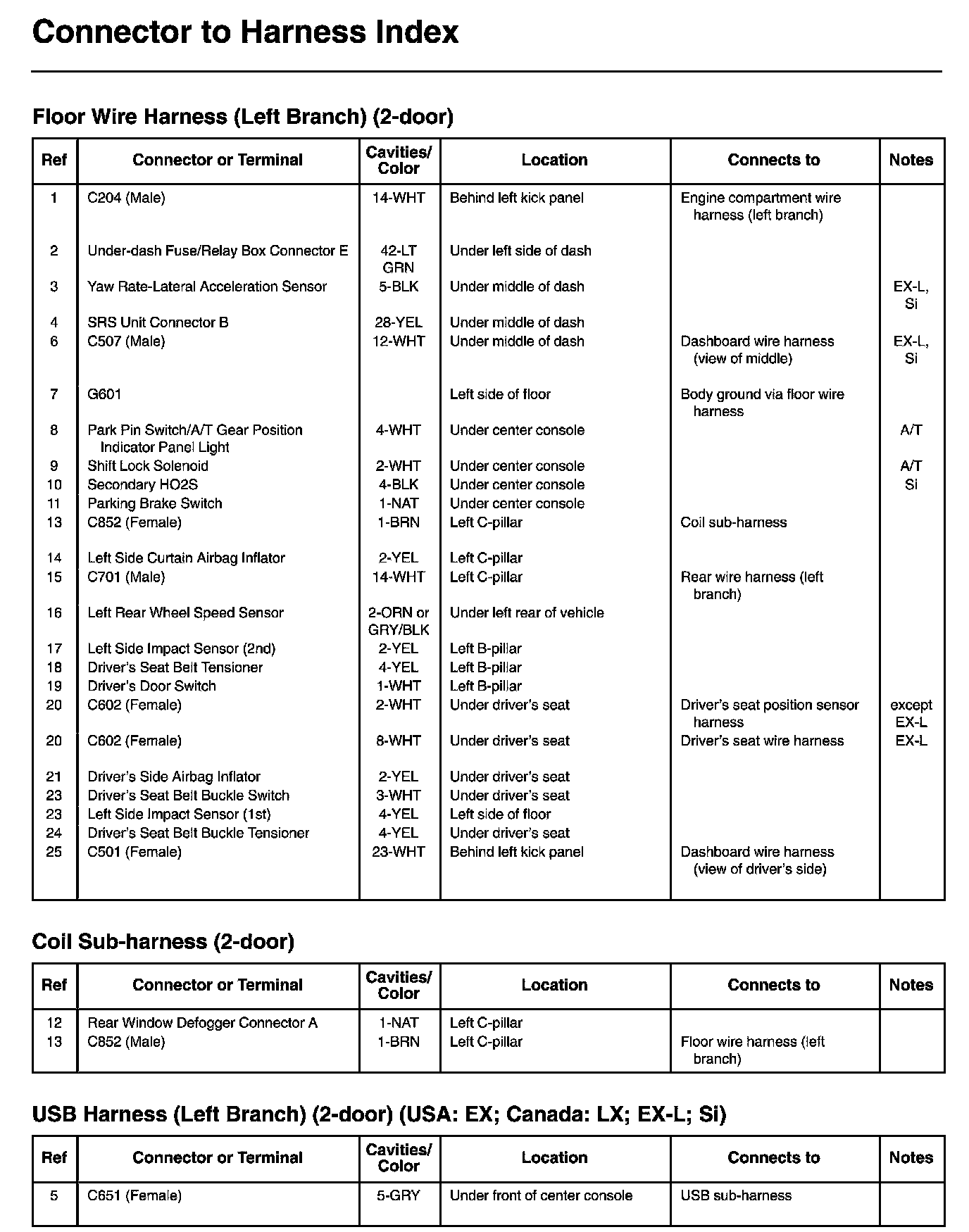

Floor Wire Harness, Coil Subharness, and USB Harness (Left branch) Connector and Harness Locations (2-Door)
Floor Wire Harness, Coil Subharness, and USB Harness (Left branch) Connector and Harness Locations (2-Door)
