Emission Control Systems: Application and ID

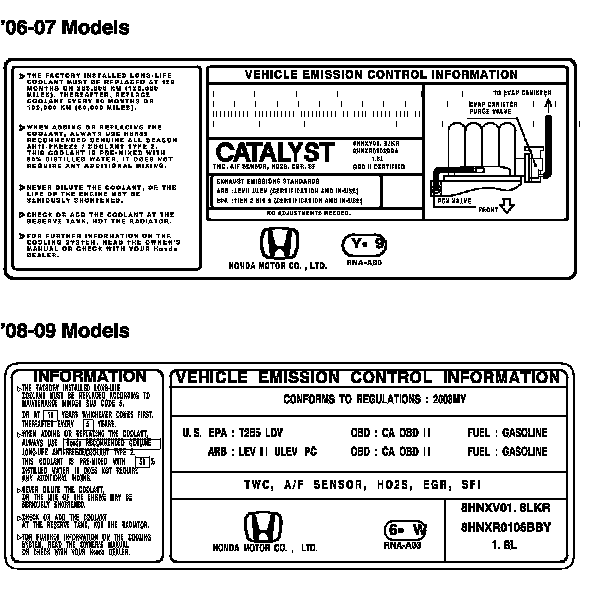

Under-hood Emission Control Label

Emission Group Identification

R18A1 engine Model

Example:





'06 Model

THIS VEHICLE CONFORMS TO U.S. EPA TIER 2 BIN 5 REGULATIONS APPLICABLE TO 2006 MODEL YEAR NEW PASSENGER CARS AND CALIFORNIA REGULATIONS APPLICABLE TO 2006 MODEL YEAR NEW LEV II ULEV PASSENGER CARS.

'07 Model

THIS VEHICLE CONFORMS TO U.S. EPA TIER 2 BIN 5 REGULATIONS APPLICABLE TO 2007 MODEL YEAR NEW PASSENGER CARS AND CALIFORNIA REGULATIONS APPLICABLE TO 2007 MODEL YEAR NEW LEV II ULEV PASSENGER CARS.

'08 Model

CONFORMS TO REGULATIONS: 2008 MY

'09 Model

CONFORMS TO REGULATIONS: 2009 MY

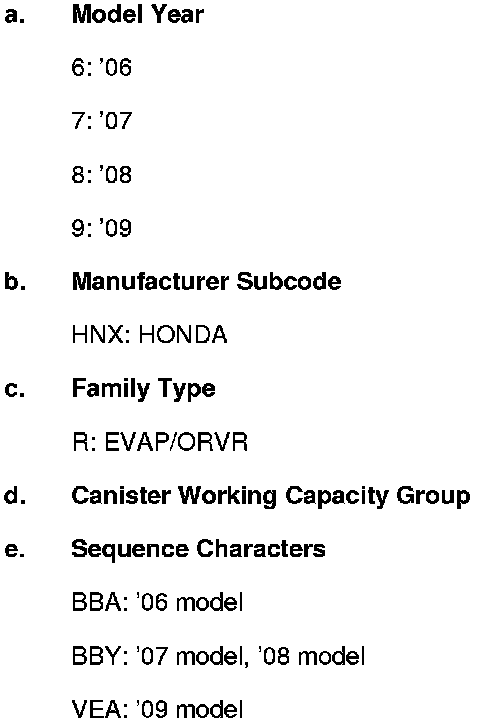

Test Group and Evaporative Family

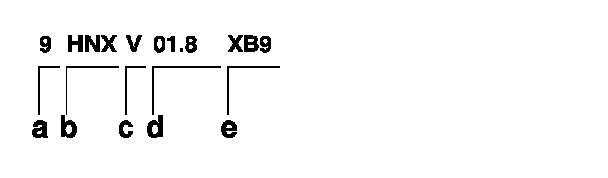

Test Group:

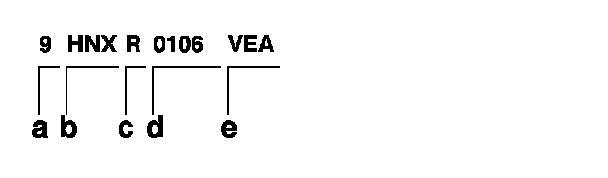

Evaporative Family:
