Body - Rattle From Front Of Vehicle While Driving

09-087

November 25, 2009

Applies To:
2009 Civic - ALL VINs starting with 1HG
- From VIN 19XFA1...9E000001 thru 19XFA1...9E031028

Rattle from the Front of the Vehicle

PROBLEM





A ridge on the upper left corner of the front bumper contacts the fender, causing the bumper to rattle when driving.

CORRECTIVE ACTION

Install a plastic washer (made from a trim clip) between the bumper and the fender.

PARTS INFORMATION

Trim Clip: P/N 90667-SDA-A01ZA, H/C 8257164

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Operation Number: 8100A3

Flat Rate Time: 0.2 hour

Failed Part: P/N 04711-SNA-A90ZZ
H/C 9035270

Defect Code: 06201

Symptom Code: 06201

Skill Level: Repair Technician

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REPAIR PROCEDURE





1. Remove the 5 x 20 mm screw near the left edge of the bumper.

2. Gently pull the upper corner of the bumper cover to detach it from the fender panel.

3. Make a plastic washer from a trim clip:

^ Remove the screw from the trim clip.

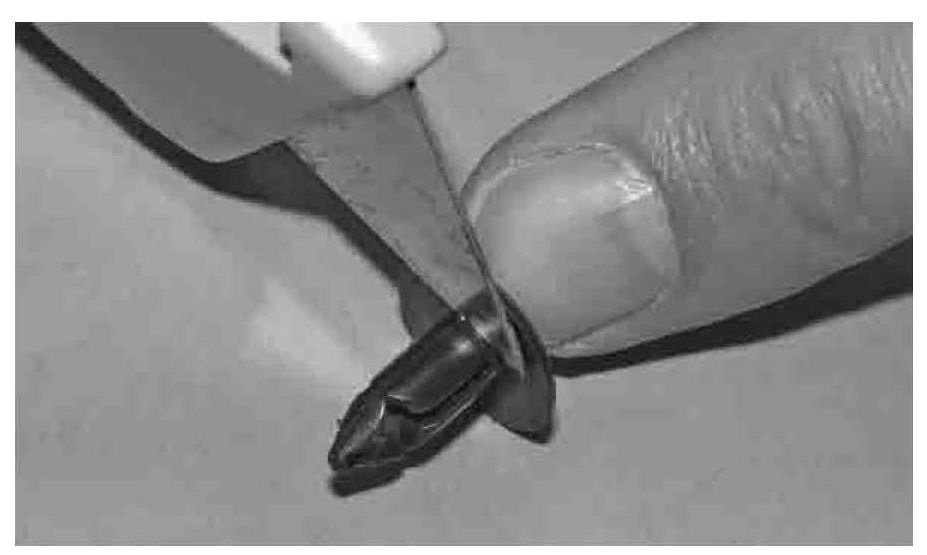

^ Using a utility knife, cut the head side off of the trim clip.





^ File down any burrs or excess material so the washer is smooth.

4. Reinstall the bumper cover with the washer.





^ Place the washer over the screw hole with the cut and filed side facing down. It should sit in the recessed area on the bumper cover.

^ Push the bumper cover inwards and slightly up. Make sure the washer does not come out of position.

^ Reinstall the screw, making sure it goes through the center of the washer.
