Campaign - Warranty Extension, Hood Paint Cracking
12-049August 24, 2012
Applies To:
2006-10 Civic - Check the iN VIN status for eligibility
Warranty Extension: Civic Hood Paint Cracking
BACKGROUND
On some 2006-10 Civics that are painted blue (paint code B-529P) or black (paint codes B-92P and NH-731P), the exterior paint on the hood and the leading edge of the front fenders may crack. American Honda is extending the warranty on the paint on the hood and tops of the front fenders on affected vehicles to 7 years from the original date of purchase with no mileage limit.
If this extended warranty has already expired based on the original date of purchase, American Honda is further extending the warranty 6 months from the mailing date of the notification letter. Do an iN VIN status inquiry to see if the customer is eligible. American Honda will update this bulletin and the iN VIN status when this warranty extension on all early production vehicles has expired.
This warranty extension only applies to factory-applied paint.
The warranty extension does not apply to any vehicle that has ever been declared a total loss or sold for salvage by a financial institution or insurer, or has a branded or similar title under any state's law.
CUSTOMER NOTIFICATION

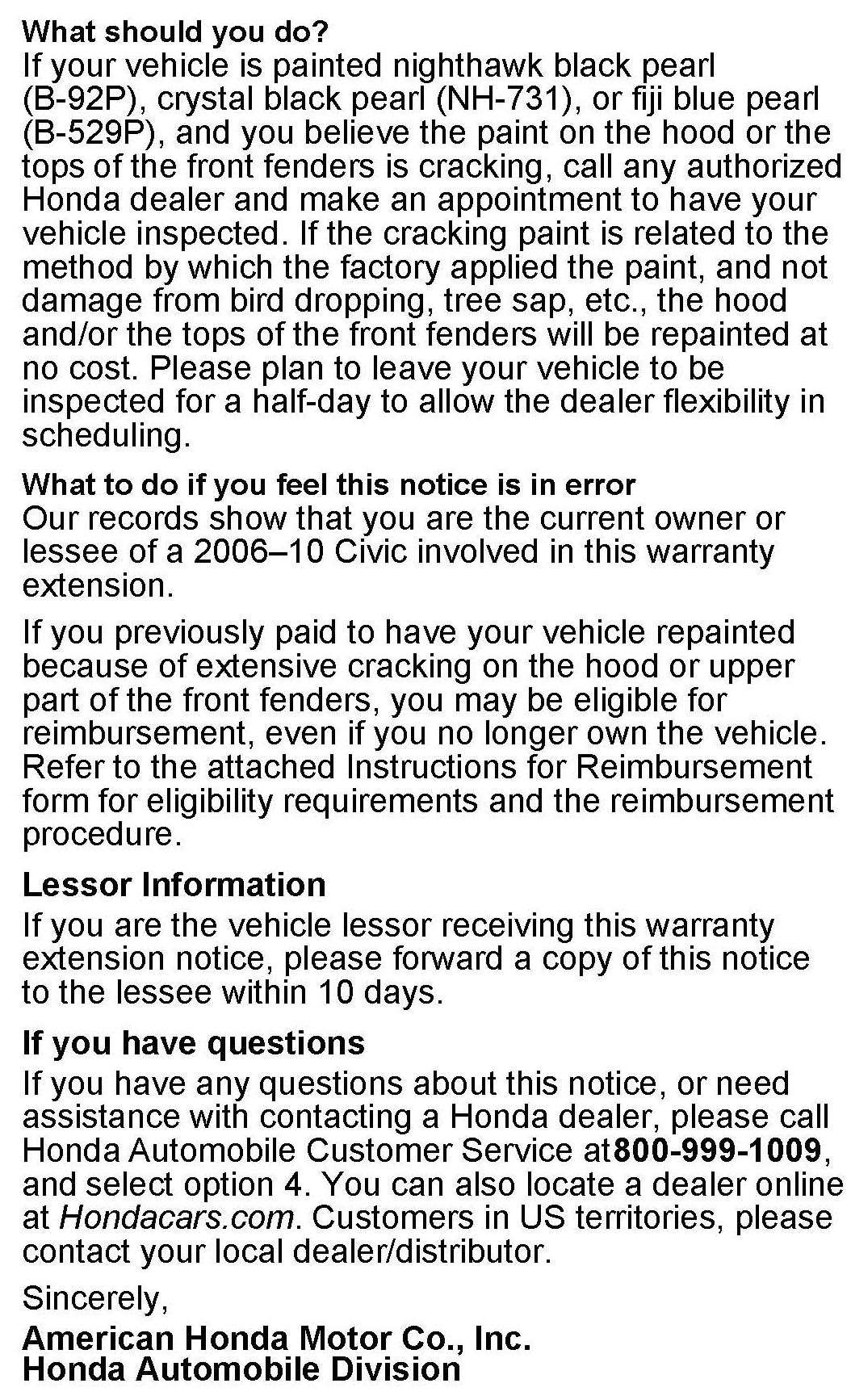

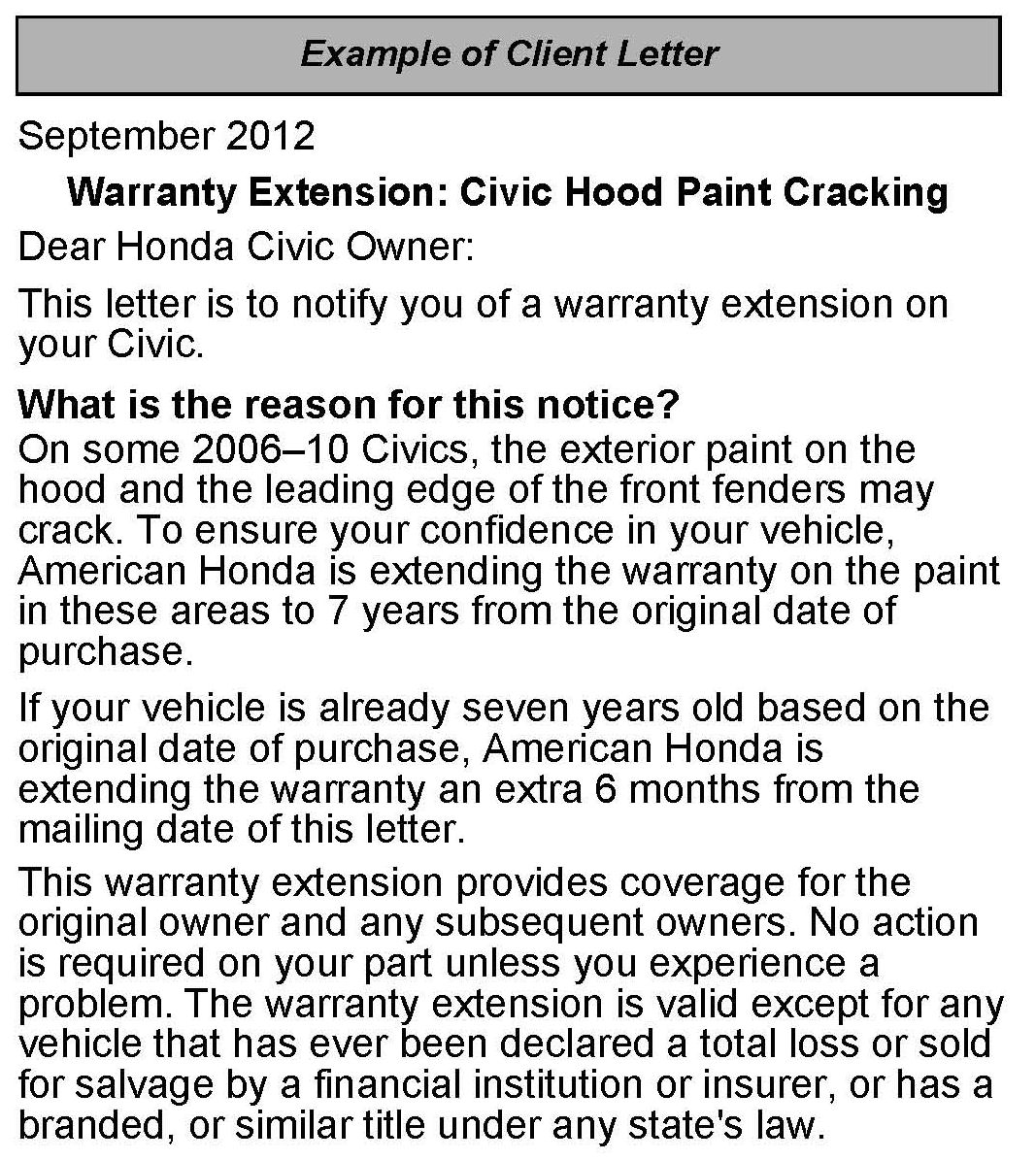

Owners of affected vehicles will receive a notification of this warranty extension. An example of the customer notification is included at the end of this service bulletin.
Before doing work on a vehicle, verify its eligibility by doing an iN VIN status inquiry.
CORRECTIVE ACTION
Inspect the vehicle and, if necessary, repaint the hood and the tops of both front fenders with an isocyanate 2-part color and clearcoat paint.
TOOL INFORMATION
Electronic Thickness Gauge or equivalent (commercially available): TIN PRC5437
Magnetic Paint Thickness Pull-off Gauge or equivalent (commercially available): TIN PRC2438
NOTE:
One magnetic paint thickness pull-off gauge will be shipped to dealerships starting in September 2012.
WARRANTY CLAIM INFORMATION
NOTE:
^ You need to enter the three paint thickness measurements from INSPECTION PROCEDURE step 4 in the three DTC fields.
^ If you need to paint areas other than the hood and the tops of the front fenders, make sure you get DPSM approval before starting the work.
^ The total cost of the repair should be between $700 and $1100 depending on the body shop labor rate. If you receive an estimate higher than $1100, make sure you get DPSM approval before starting the work.
^ Refer to Service Bulletin 10-002, Photos for Warranty Paint Repair Claims.
Operation Number: 9119A3
Flat Rate Time: 11.5 hours
Failed Part: P/N 60100-SNE-A90ZZ
Defect Code: 5P300
Symptom Code: S4800
Skill Level: Repair Technician
INSPECTION PROCEDURE
1. Check the paint code label on the driver's door to make sure the paint code is one of the following:
^ B-529P - blue
^ B-92P - black
^ NH-731P - black
2. Clean the vehicle, then bring it inside a shop with overhead lighting. Do not try to inspect the vehicle in sunlight as the sun's intensity may affect the ability to see any potential damage.

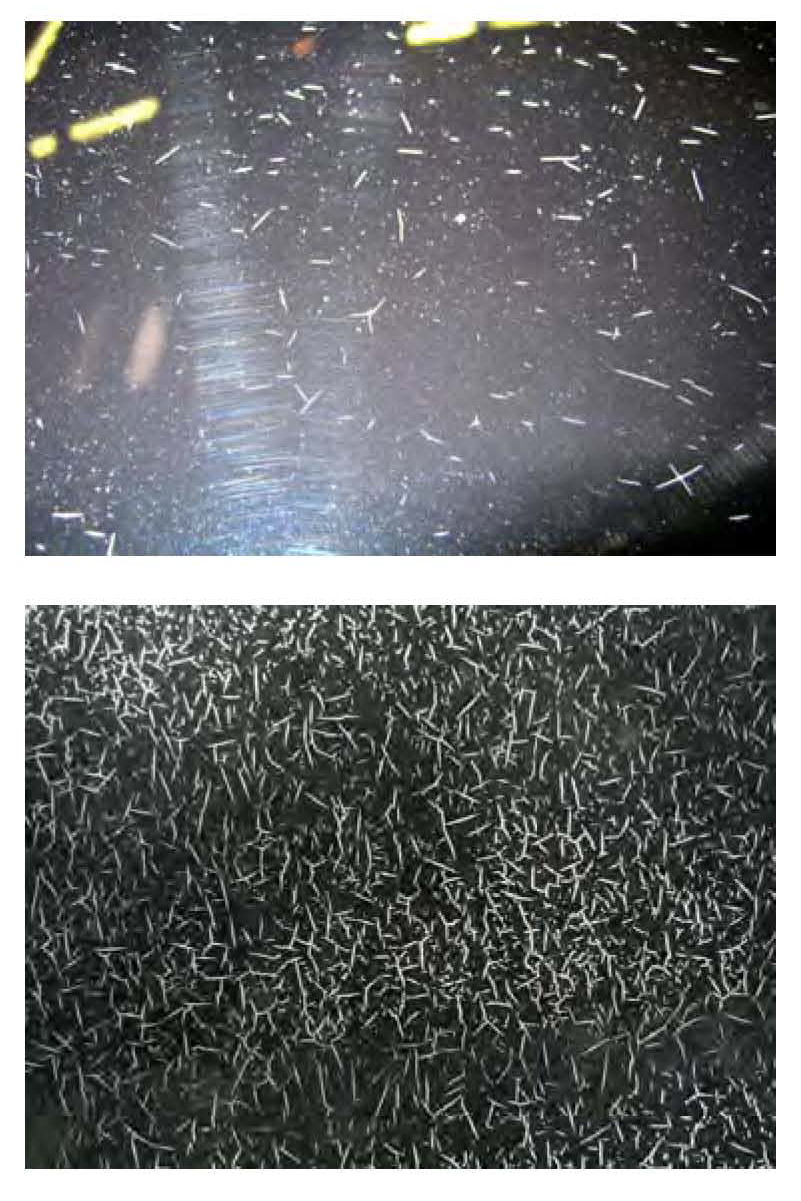

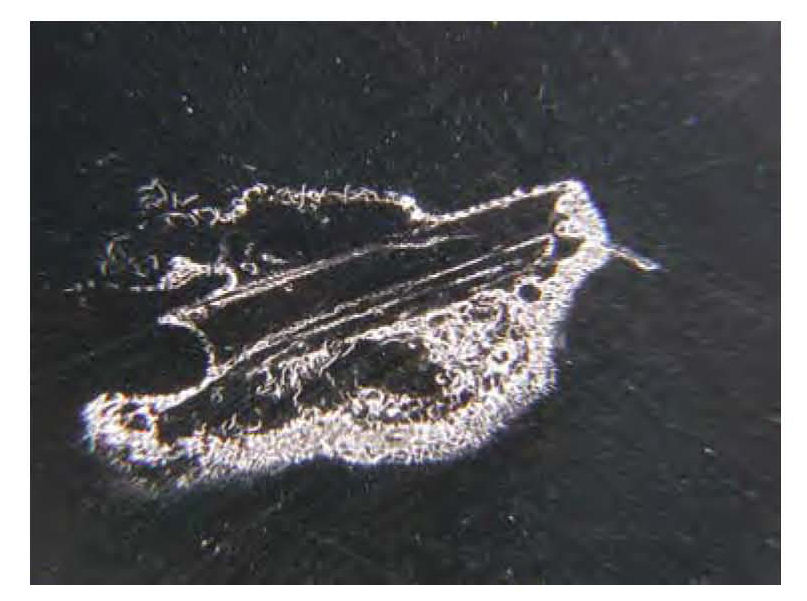

3. Inspect the hood and the tops of the front fenders for cracking paint. The cracks are usually 3-5 millimeters long and often have three legs and/or a small dot at the intersection as shown below.
^ If the cracking appears like the following, even if it is only on a small area of the hood and the tops of the fenders, go to step 4.

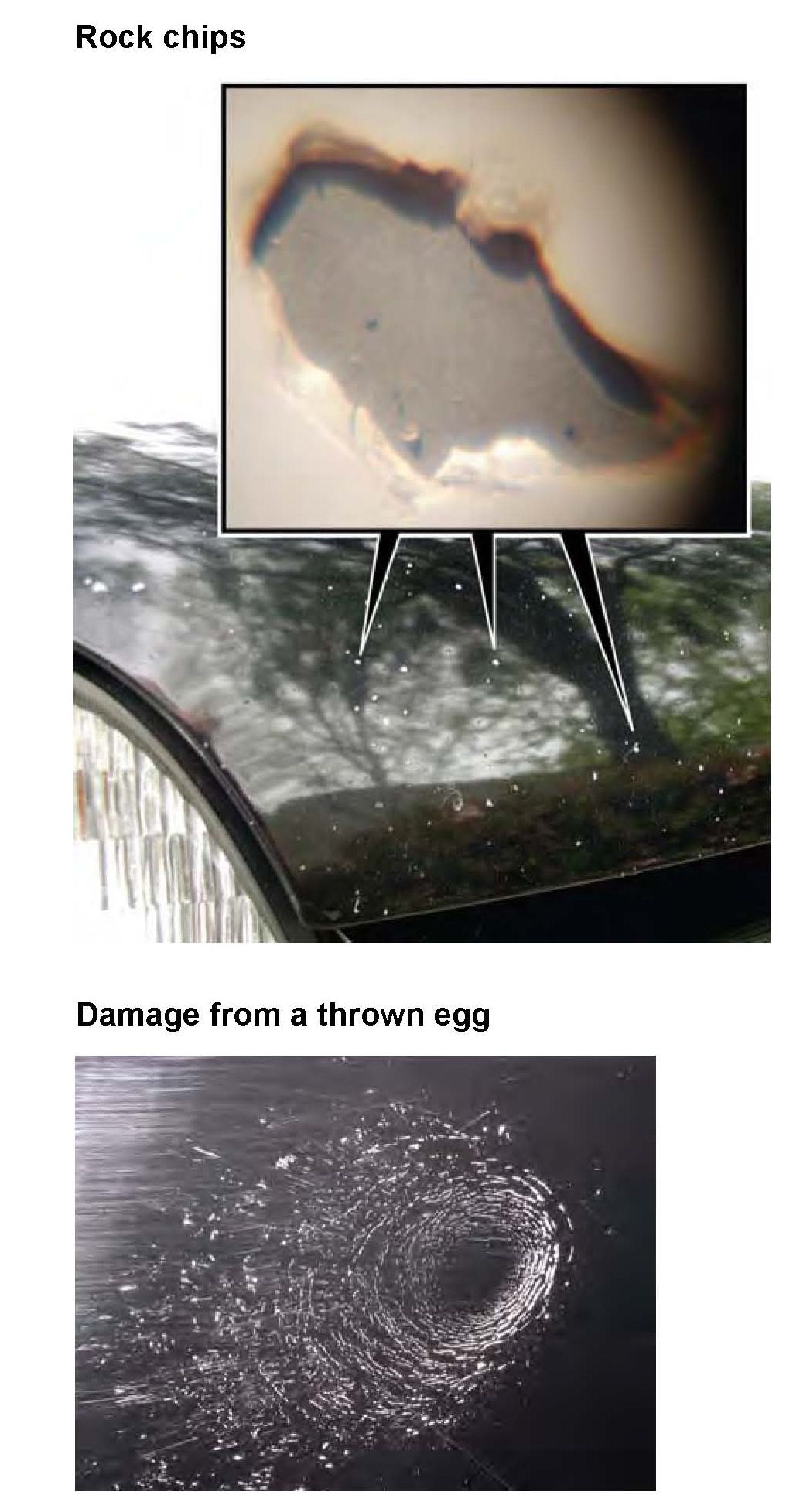

^ If the damage does not look like the above examples but looks like one of the following, this bulletin does not apply. Refer to the standard warranty paint procedure.

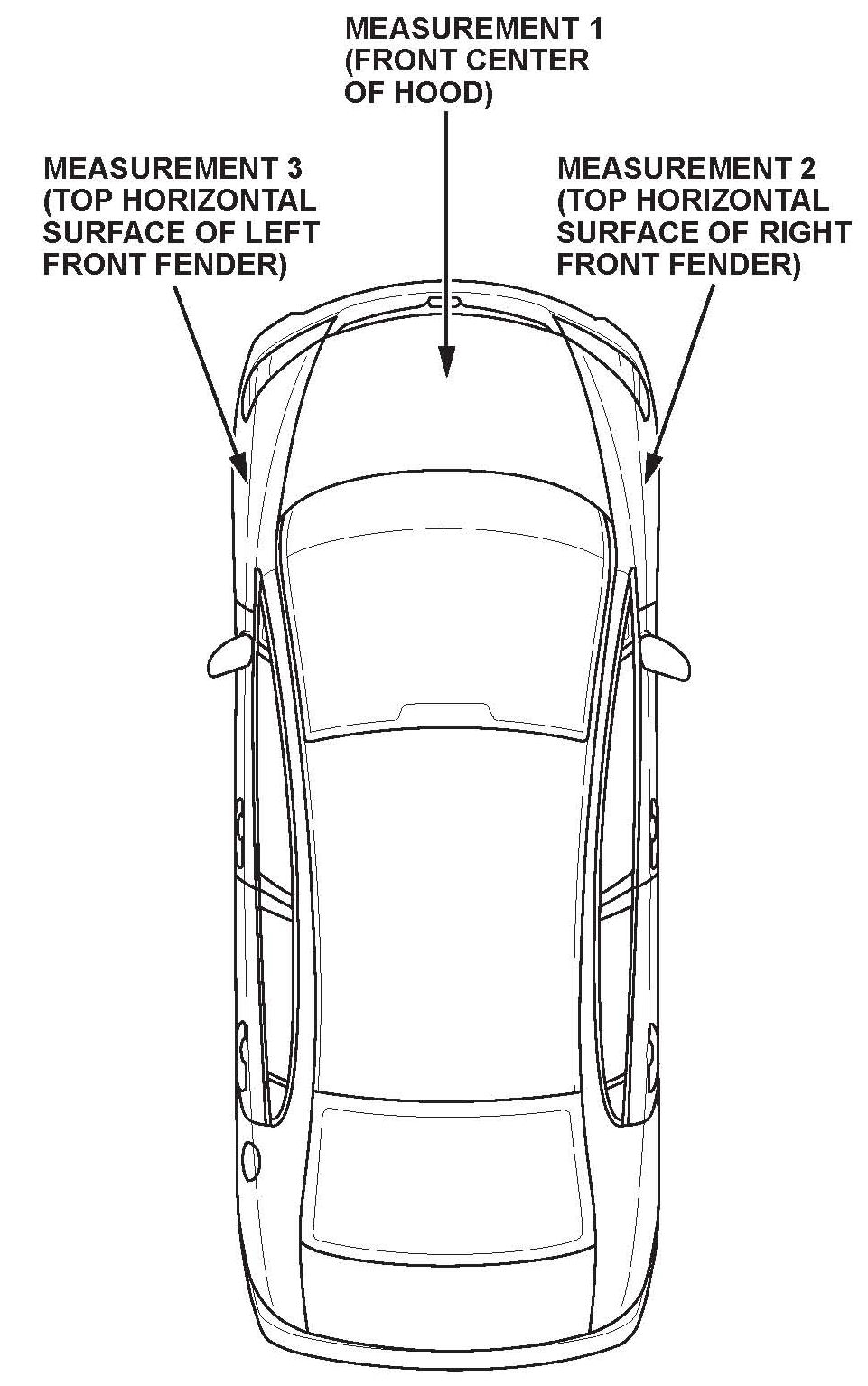

4. You must measure the paint thickness in the three areas listed with a magnetic pull-off gauge or an electronic paint thickness gauge to make sure it was applied by the factory. Write down the results on the repair order because they will be needed to submit a warranty claim.
NOTE:
Due to supply limitations, it may take a few months for Special Tools to send magnetic pull-off gauges to every dealership. If you do not have a gauge to measure the paint thickness, it will be necessary for you to borrow one from your dealer body shop or the independent body shop you send work to. The paint thickness measurements are required for each warranty claim.
^ If the paint thickness is between 4 and 5 mil (100 to 125 microns), go to the REPAIR PROCEDURE.
^ If the paint thickness is more than 6 mil (150 microns), the paint may not be factory paint. Contact your DPSM and get their approval before going to the REPAIR PROCEDURE.
REPAIR PROCEDURE
NOTE:
This procedure is an outline form that you can also use as a checklist for the repair. If you need more details on the procedures listed below, bookmark them in the applicable service manual, or view them online:
^ Front Grille Cover Replacement
^ Front Fender Trim Replacement
^ Front Bumper Removal/Installation
^ Headlight Replacement
^ Front Inner Fender Replacement
1. Remove the front bumper.
2. Remove the headlights.
3. Remove the front inner fenders.
4. Remove the cracked paint by sanding the hood and the tops of the front fenders.
5. Repaint the hood and the tops of both front fenders using an isocyanate 2-part color and clearcoat paint. Make sure the paint on the fender is blended to match the door.
6. Reinstall the front inner fenders, the headlights, and the front bumper.
