View 126 - Right Brake Light/Taillight Connector View

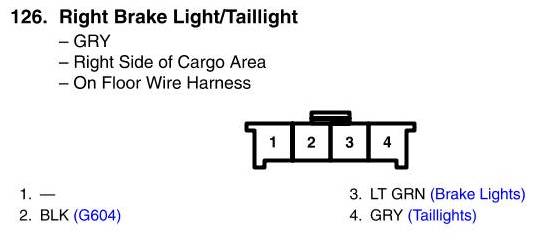

View 126 - Right Brake Light/Taillight Connector View
