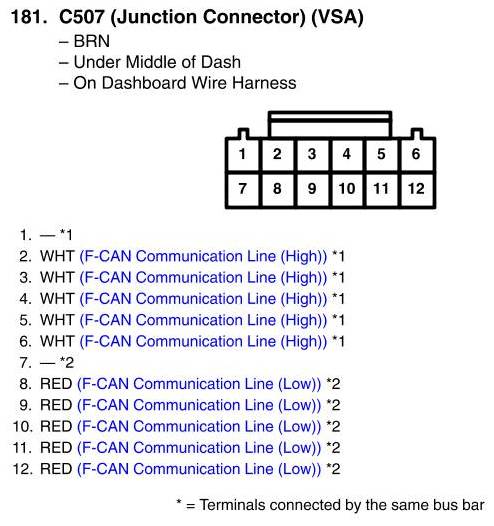

View 181 - C507 (Junction Connector) Connector View (VSA)
View 181 - C507 (Junction Connector) Connector View (VSA)
