Home >> Honda >> 2009 >> Fit L4-1.5L >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness And CKP Sensor Sub-harness Connector And Harness Locations (M/T)

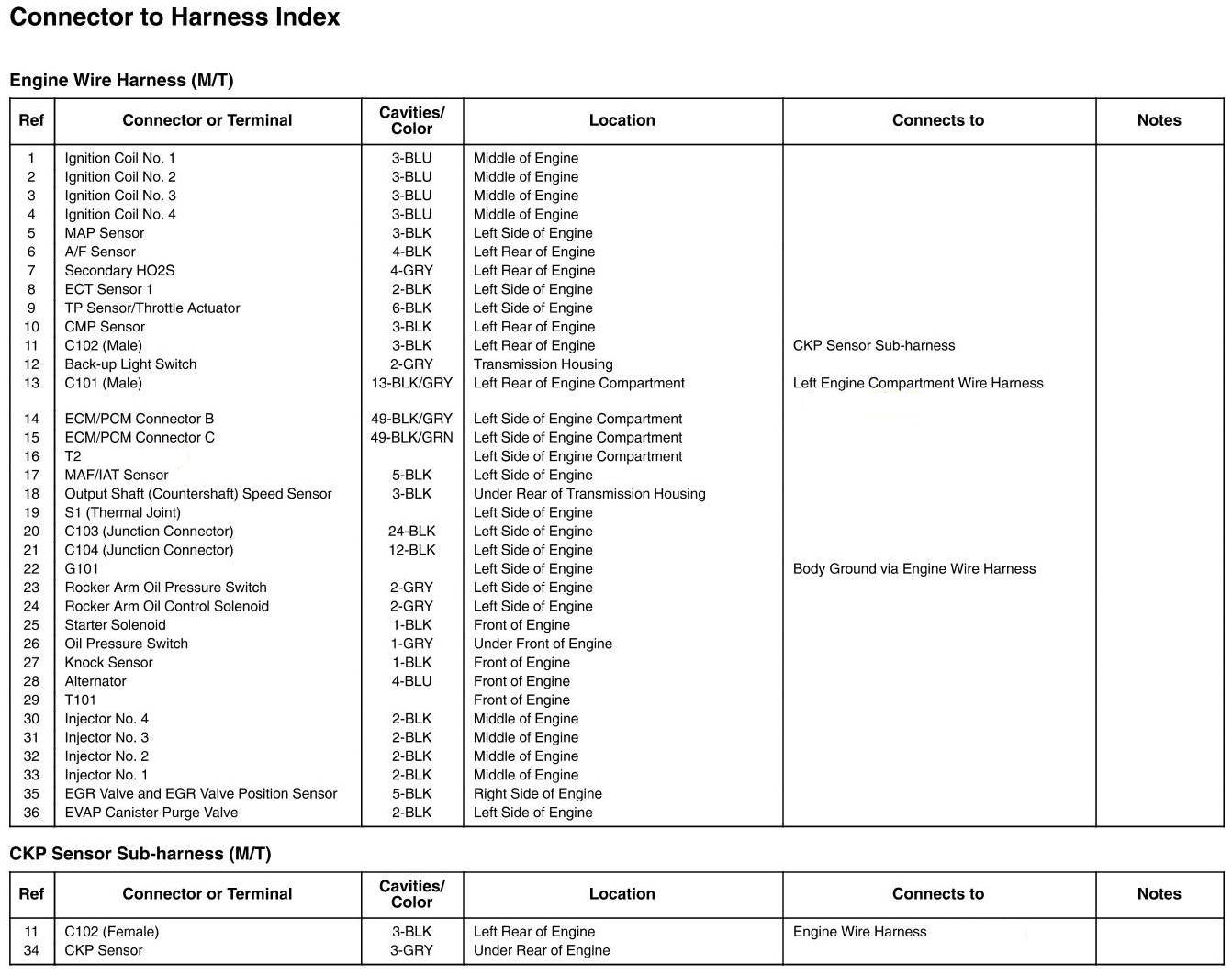

Engine Wire Harness And CKP Sensor Sub-harness Connector And Harness Locations (M/T)
