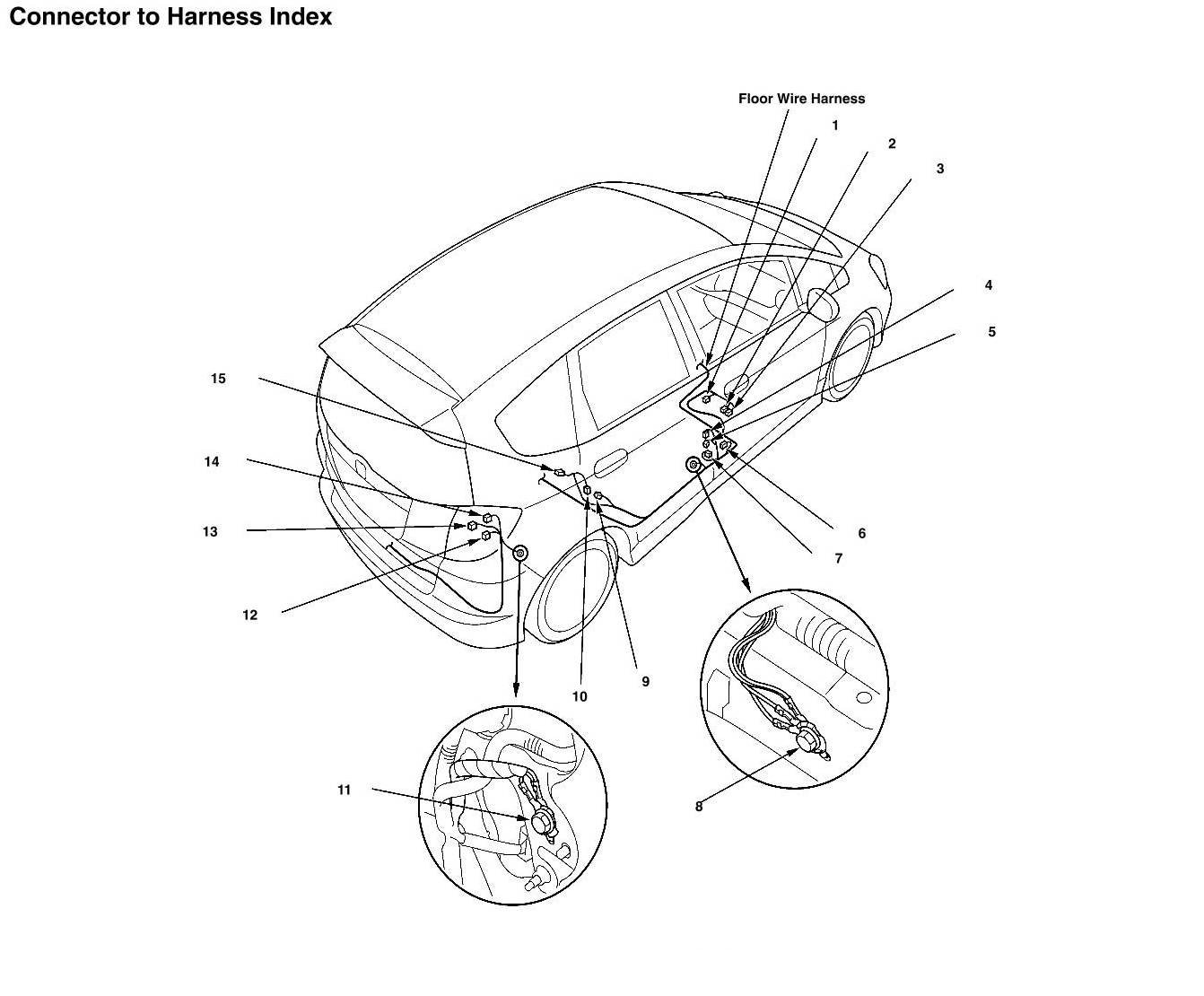

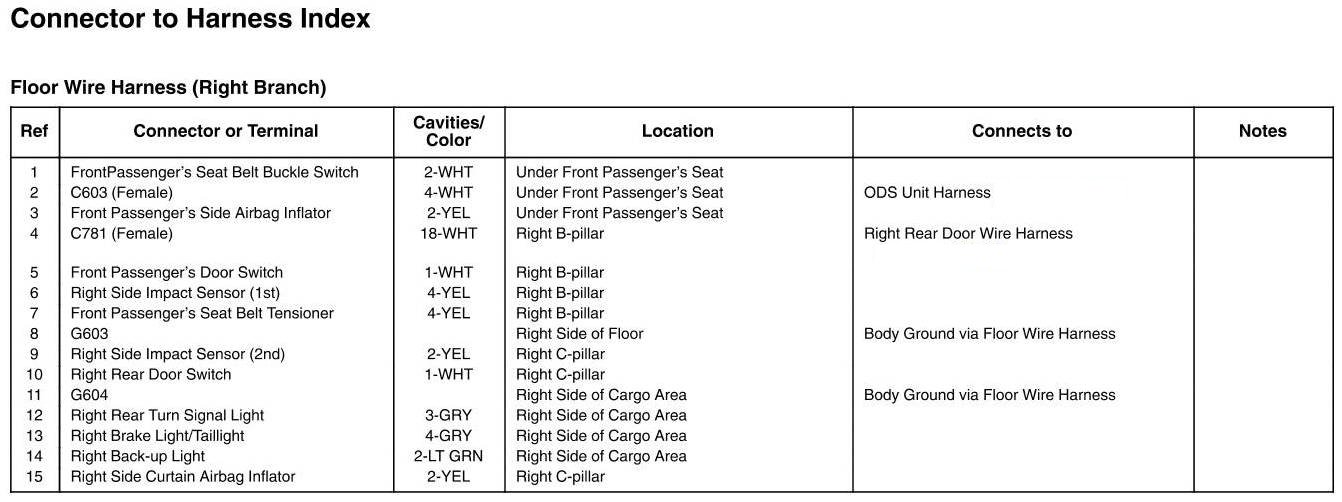

Floor Wire Harness (Right Branch) Connector And Harness Locations
Floor Wire Harness (Right Branch) Connector And Harness Locations
