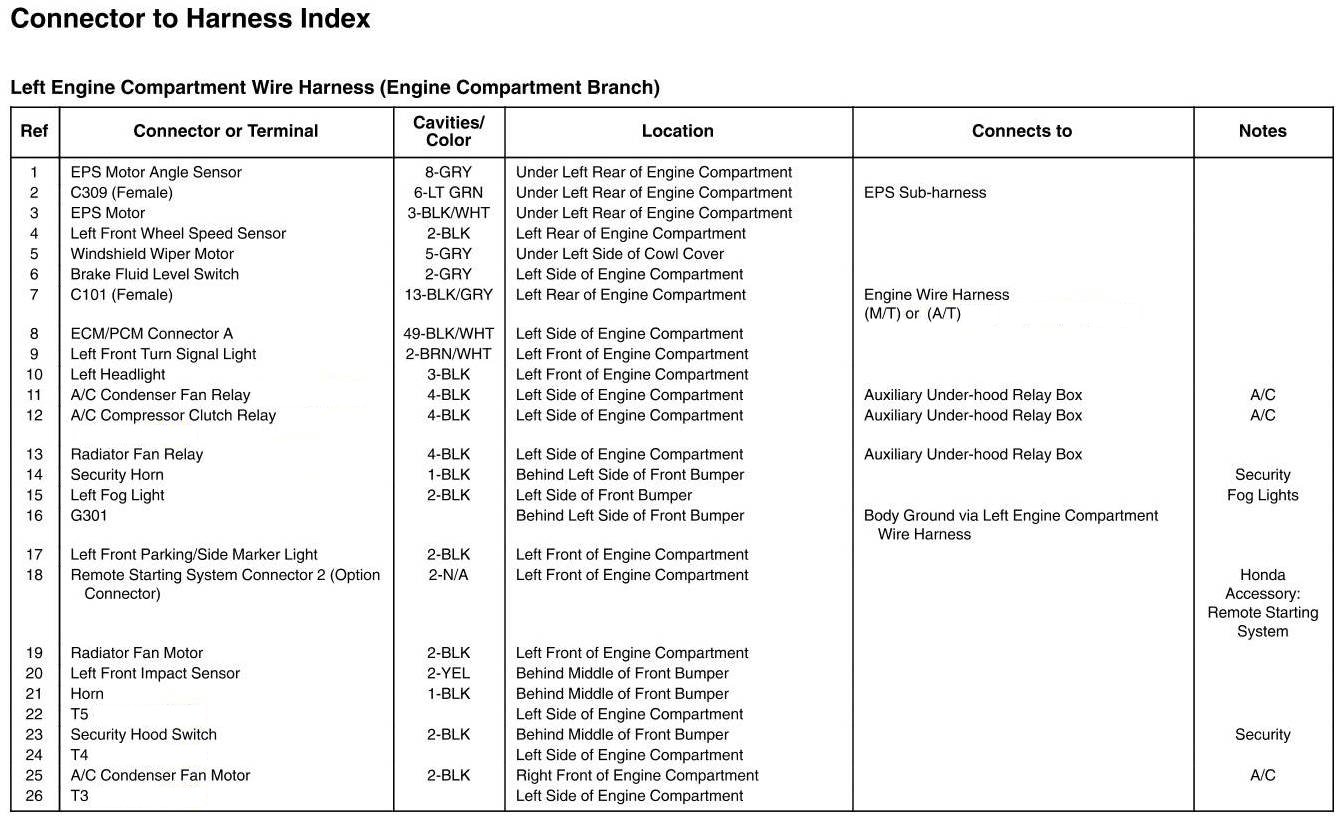

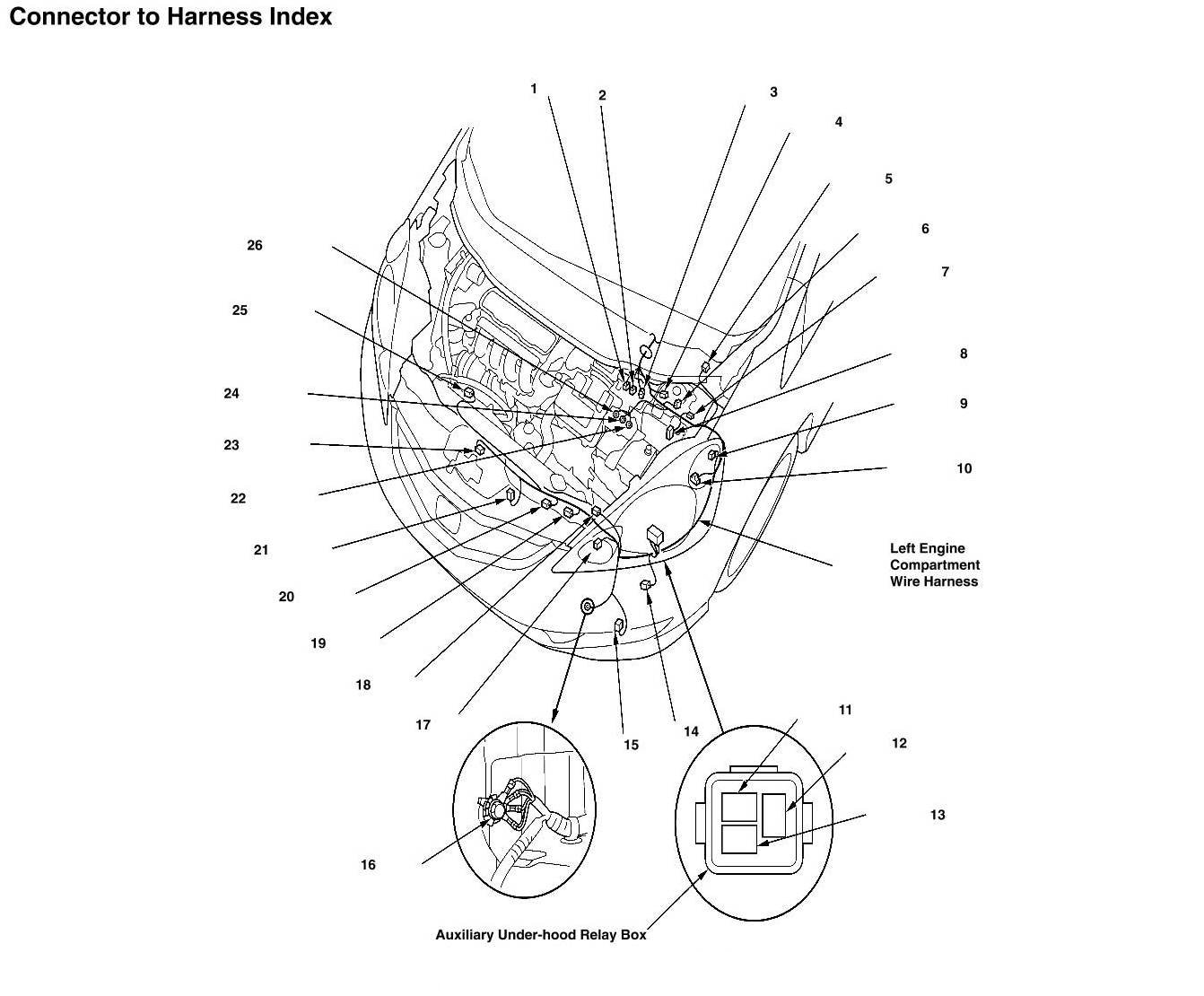

Left Engine Compartment Wire Harness (Engine Compartment Branch) Connector and Harness Locations
Left Engine Compartment Wire Harness (Engine Compartment Branch) Connector and Harness Locations
