Secondary Shaft (Contd) Specifications (A/T)
Secondary Shaft (Contd) Specifications (A/T)

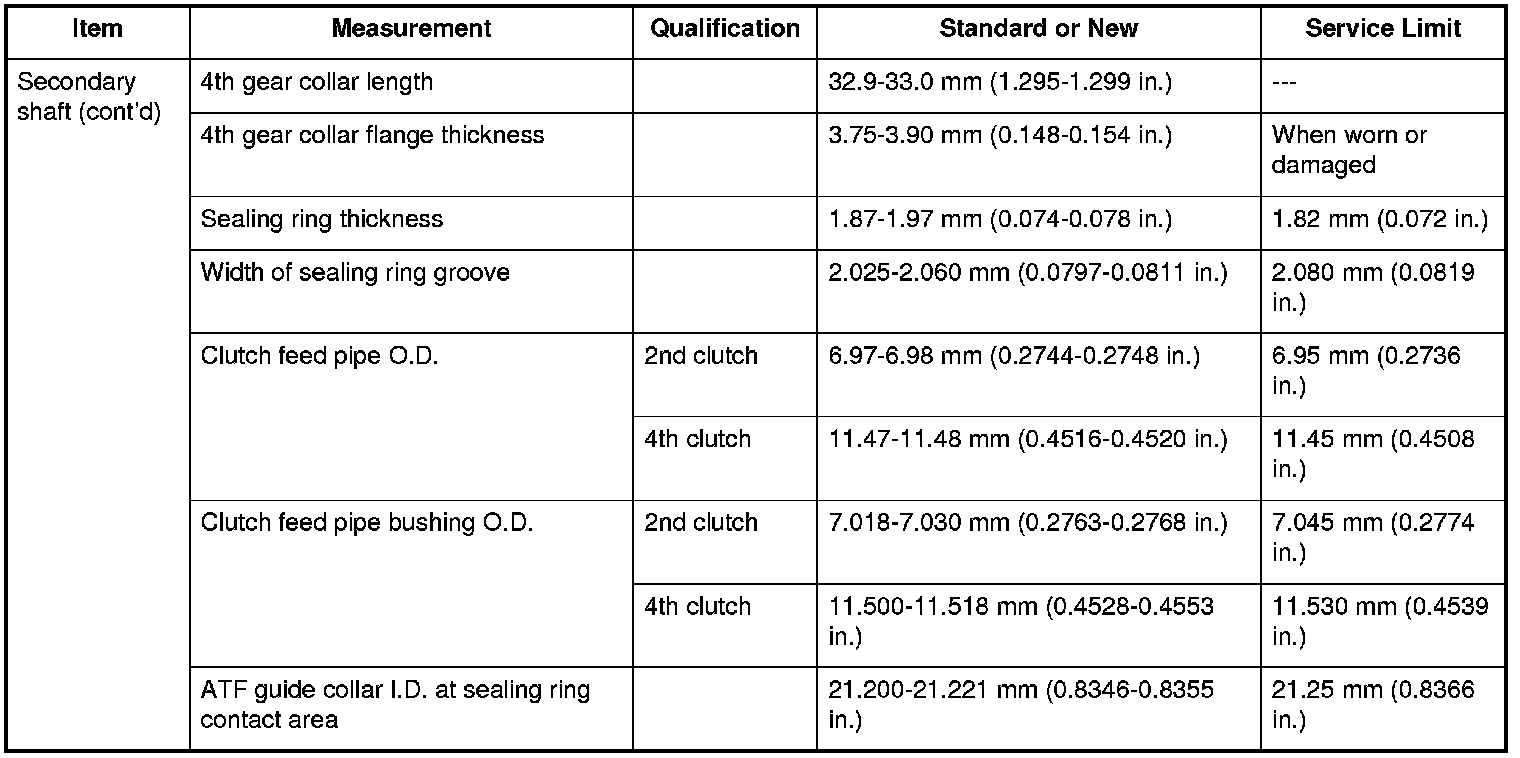

Secondary shaft (cont'd) Specifications
Secondary shaft (cont'd)
