Mirror Holder Replacement

Mirror Holder Replacement

Special Tools Required

- KTC trim tool set SOJATP2014*
NOTE:

- Put on gloves to protect your hands.

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

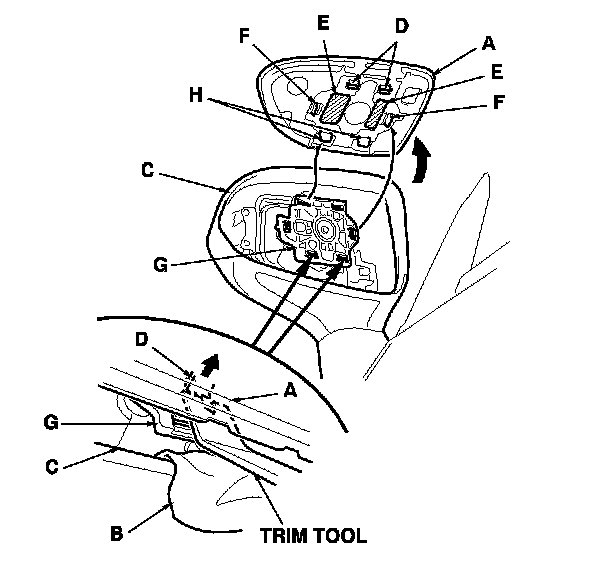

1. Carefully push on the top edge of the mirror holder (A) by hand.

2. Put a shop towel (B) in the opening between the lower edge of the mirror holder and the mirror housing (C) to prevent scratches, and detach the bottom clips (D) with a trim tool.

3. Carefully pull out the bottom edge of the mirror holder to separate the butyl tape (E), and then release the side clips (F).

4. Separate the mirror holder from the actuator (G) by releasing the hooks (H).

5. Scrape off the old butyl tapes, then clean the actuator surface with isopropyl alcohol, and apply the new butyl tapes to the actuator.





6. Insert the hooks on the mirror holder into the slots on the actuator. Position the mirror holder on the actuator, and carefully push the clips into place.

7. Check the actuator operation.
