Power Mirror Actuator Test

Power Mirror Actuator Test

1. Remove the door panel. Service and Repair

2. Disconnect the 3P connector from the power mirror.

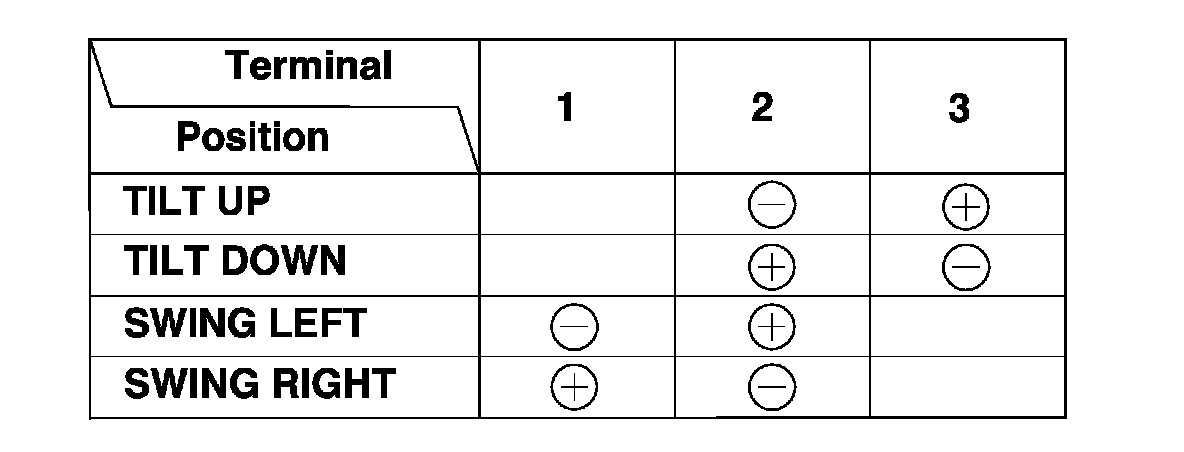

3. Check actuator operation by connecting power and ground according to the table.

4. If the mirror fails to work properly, replace the mirror actuator.
