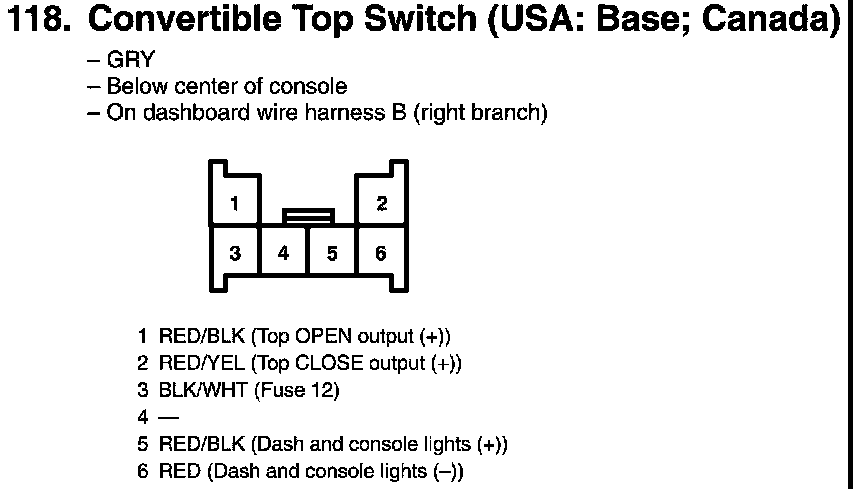

View 118 Convertible Top Switch Connector View (USA: Base; Canada)
View 118 Convertible Top Switch Connector View (USA: Base; Canada)
