Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2009
>>
S2000 L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

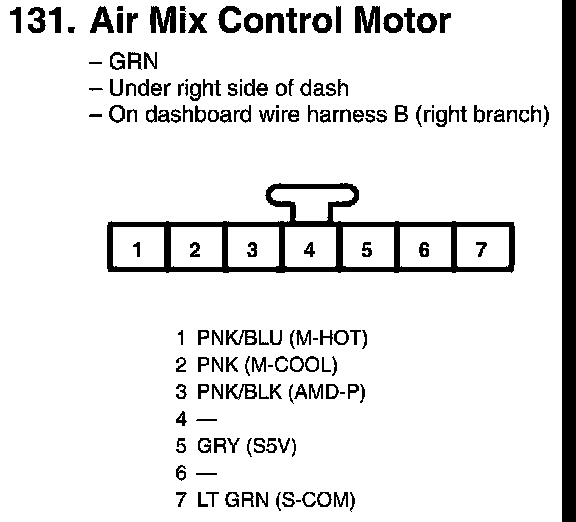

View 131 Air Mix Control Motor Connector View
View 131 Air Mix Control Motor Connector View
